Digital Sensor Counter Digital Tally Counter Digital Frequency Counter

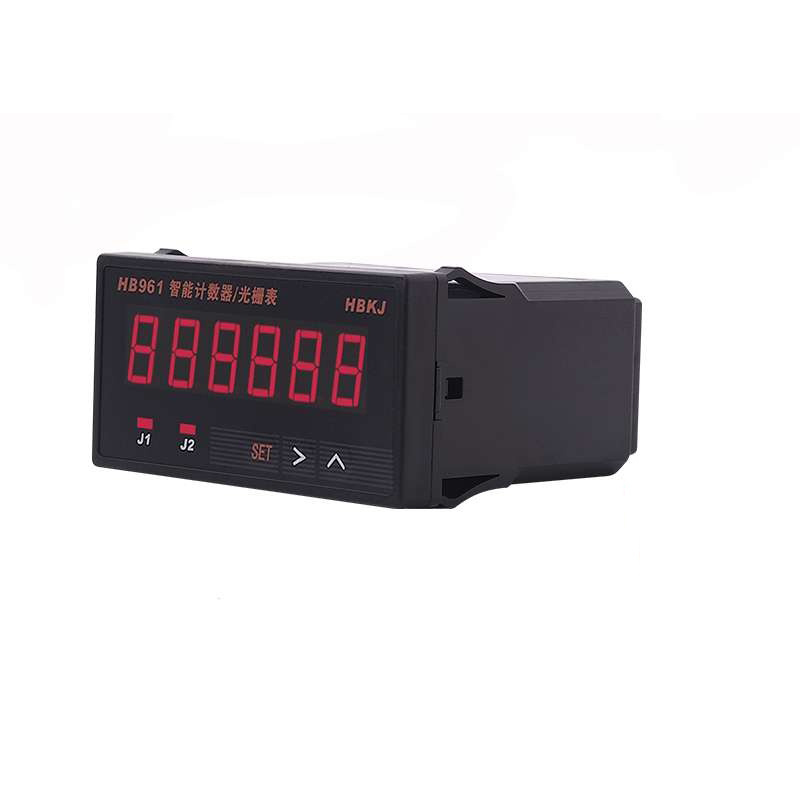

HB961 series Indicator

Features

* set count mode, the instrument can be plus or minus count,Identifiable phase counter
* External photoelectric tube, proximity switches, grating sensors, encoder
* count value, alarm value, function parameter values to non-volatile
* can set two alarm values, there are two independent output relay
* optional relay output, to meet the measurement needs of the various occasions

Technical parameters

1. Working power: AC/DC85 ~~ 260V (Other voltage can be customized)

2.Counting frequency: 30KHz (the gratings Table 15KHz)
3. Pulse level: low :-50V to +0.5 V;
HIGH: +4 V ~ +50 V
4 trigger modes: low trigger (falling edge trigger switch contacts)
5.Instrument display values: pulse input value × A ÷ B + C
6. magnification range: ratio A: -199 999 ~ 999999
Times the rate of B: 1 ~ 999999
7. Initial value: -199999 to 999999
8 Display Range: -199999 to 999999
9. Feed output: DC24V, DC5V, DC30mA
10. contact capacity: AC250V 3A (resistive load)
11. contact life: 105 times
12. Dimensions: 96 × 48 × 82mm
13. hole size: 92 +1 × 44.5 +1 mm
14. Use of the environment: 0 ° C to +50 ° C; ≤ 85% RH

Advantages:

1. professional design, beautiful appearance and generous, the count frequency response speed.
2. die-casting alloy shell surface electric spray treatment, dust abrasion resistance, good shielding.
3.Professional design independent power to adapt to a wide range of high stability, strong anti-interference ability.
4. power supply and signal anti-interference ability, high quality and durable key panel replacement simple and convenient.
