Quick Details
-
Pins:
-
4p, 3P, 2P
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LLT f type waterproof connector
-
Model Number:
-
LLT-M16
-
Product name:
-
waterproof led modules connector
-
Connector type:
-
1 in 3 out m16 connector
-
Material:
-
High quality Nylon PA66,UL94-V0
-
Warranty:
-
12 month
-
Protection level:
-
IP68/IP67 waterproof,outdoor use
-
Service:
-
Free sample
-
Certificate:
-
TUV UL CE CQC ROHS
-
Durability:
-
above 3000 times plug/unplug
-
Feature:
-
Airtight, Waterproof, Dustproof
Quick Details
-
Type:
-
M16 joint connector
-
Application:
-
Outdoor LED Display / Lighting
-
Gender:
-
Female
-
Pins:
-
4p, 3P, 2P
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
LLT f type waterproof connector
-
Model Number:
-
LLT-M16
-
Product name:
-
waterproof led modules connector
-
Connector type:
-
1 in 3 out m16 connector
-
Material:
-
High quality Nylon PA66,UL94-V0
-
Warranty:
-
12 month
-
Protection level:
-
IP68/IP67 waterproof,outdoor use
-
Service:
-
Free sample
-
Certificate:
-
TUV UL CE CQC ROHS
-
Durability:
-
above 3000 times plug/unplug
-
Feature:
-
Airtight, Waterproof, Dustproof

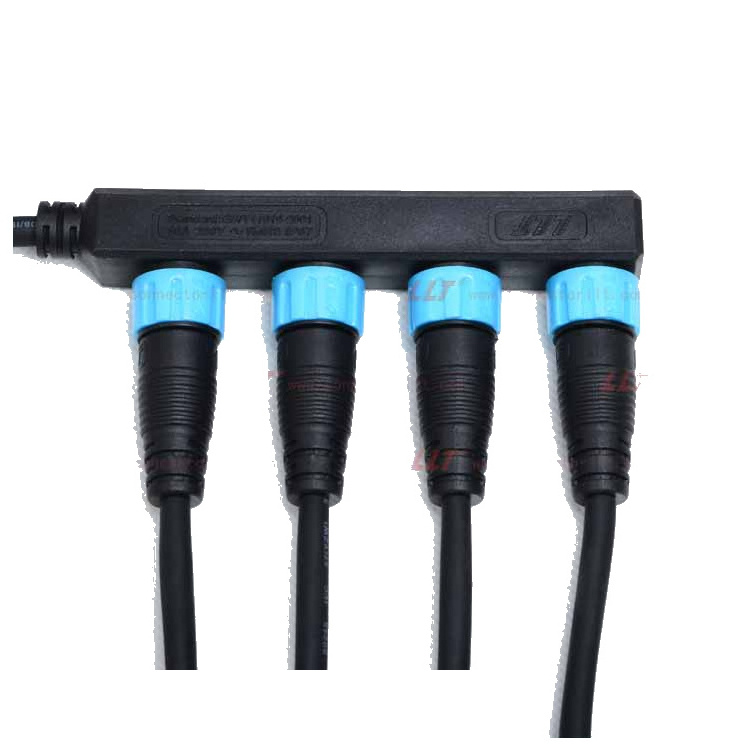

Junction box plastic distribution connector M16 waterproof led modules connector
Product Description
Specification:
| Model number | waterproof led modules connector |
| Connector Body | Nylon(PA 66)+GF UL94V-0 1/16" |
| Sealing | Silicone Gel |
| Contact | Copper plated with gold |
| contact style | Screw |
| Temperature Rating | -40°C~+105°C |
| Current rating | 15A |
| Voltage rating | 250V |
| Waterproof Rating | IP67/IP68 |
| Contact resistance | 20MΩ |
| Insulation resistance | 1000MΩ at DC500V |
| Breakdown voltage | 1.5KV/1 minute |
| Cable OD | 5.5-7.5mm |
| Pins range | 2/3/4 pin or more as your request |
Detailed Images
Product Advantages
1.Water circular connectors can connect electrical products perfectly.
2.Approved by UL,CE,TUV,ROHS,CCC,TS16949,ISO14001.
3.Our connector can be used outdoor during harsh winter or hot summer. the endurance temperature range is -40℃-105℃.
4.We have got REACH certification ,with good quality and performance,LLT connector is your best choice!
5.Every product will be inspected strictly,good quality
is
guarantee
d
.
Why Choose Us
1. We are the lead ing Manufacturer in the waterproof connector field in China.
2.100% QC inspection before delivery .
3.Best quality & best service w
ith
a
competitive
price.
at the same price,our quality is the best and at the same quality,our price is the best.
4.Advanced production equipment & strong technical strength ensure high quality and competitive products.
5. we are one of the most powerful factory in China and our products are exported to many countries and a lot of good review from customers.
6. OEM,OBM is available.
7. Full Certificate such as UL,CE,TUV,ROHS,CCC,TS16949,ISO14001 are available.
Product Application
These products are widely used for outdoor lighting,precision automation machinery,new energy vehicles and charging equipment,electricity generation facility,coal mine,oil drilling industry,communication network,underwater detector,civil air vehicle,military vehicles and other industries .
Our successful cases of cooperation
2. 2008 China Olympics - the Birds Nest Stadium and the Water Cube
5. Shenzhen Subway
6. Western Corridor
7. Cnooc drilling platform
8. China high-speed railway and so on
