Quick Details
-
Model Number:
-
HS
-
Weight:
-
430g, 600g,1100g
-
Width:
-
92cm or 100cm, 84cm, 92cm, 100cm
-
Standing Temperature:
-
1000℃
-
Material:
-
100% Fiberglass
-
SiO2 Content:
-
>96%
-
Color:
-
White or Golden
-
Thickness:
-
0.7mm, 1.1mm
-
Roll Length:
-
30m, 50m, 100m
-
Working Temperature:
-
1000Celsius
-
Instantaneous Temperatures:
-
1700Celsius
-
Product Name:
-
1000C High Temperature Resistant High Silica Glass Fiber Cloth/Fabric
-
Good Features:
-
High temperature resistant
Quick Details
-
Application:
-
Blind
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JOEN
-
Model Number:
-
HS
-
Weight:
-
430g, 600g,1100g
-
Width:
-
92cm or 100cm, 84cm, 92cm, 100cm
-
Standing Temperature:
-
1000℃
-
Material:
-
100% Fiberglass
-
SiO2 Content:
-
>96%
-
Color:
-
White or Golden
-
Thickness:
-
0.7mm, 1.1mm
-
Roll Length:
-
30m, 50m, 100m
-
Working Temperature:
-
1000Celsius
-
Instantaneous Temperatures:
-
1700Celsius
-
Product Name:
-
1000C High Temperature Resistant High Silica Glass Fiber Cloth/Fabric
-
Good Features:
-
High temperature resistant
1. Pass ISO 9001, BS EN1869 :1997, SGS, LPCB, MSDS, IMO, ASTM, etc.
2. One of the biggest fiberglass fabric manufacturers in China.
1000C High Temperature Resistant High Silica Glass Fiber Cloth/Fabric
What is High Silica fiberglass?
High silica fiberglass is a special fiberglass fabric which contains more than 96% silicon dioxide (SiO2).
Why is High Silica fiberglass?
With excellent heat resistance, it can withstand continuous temperatures of 1000 degrees Celsius for long periods of time, and instantaneous temperatures of up to 1700 degrees Celsius.
What's application for High Silica Fiberglass?
1. Ideal material for missile and rocket manufacture in the aerospace industry where high-temperature burning occurs.
2. Ideal for heat preservation material, firefighting equipment like fire curtains and fireproof garments.
3. Good in dust collection and filtration equipment where special material is needed to withstand high temperature gas, and in filtering high-temperature liquid metal.

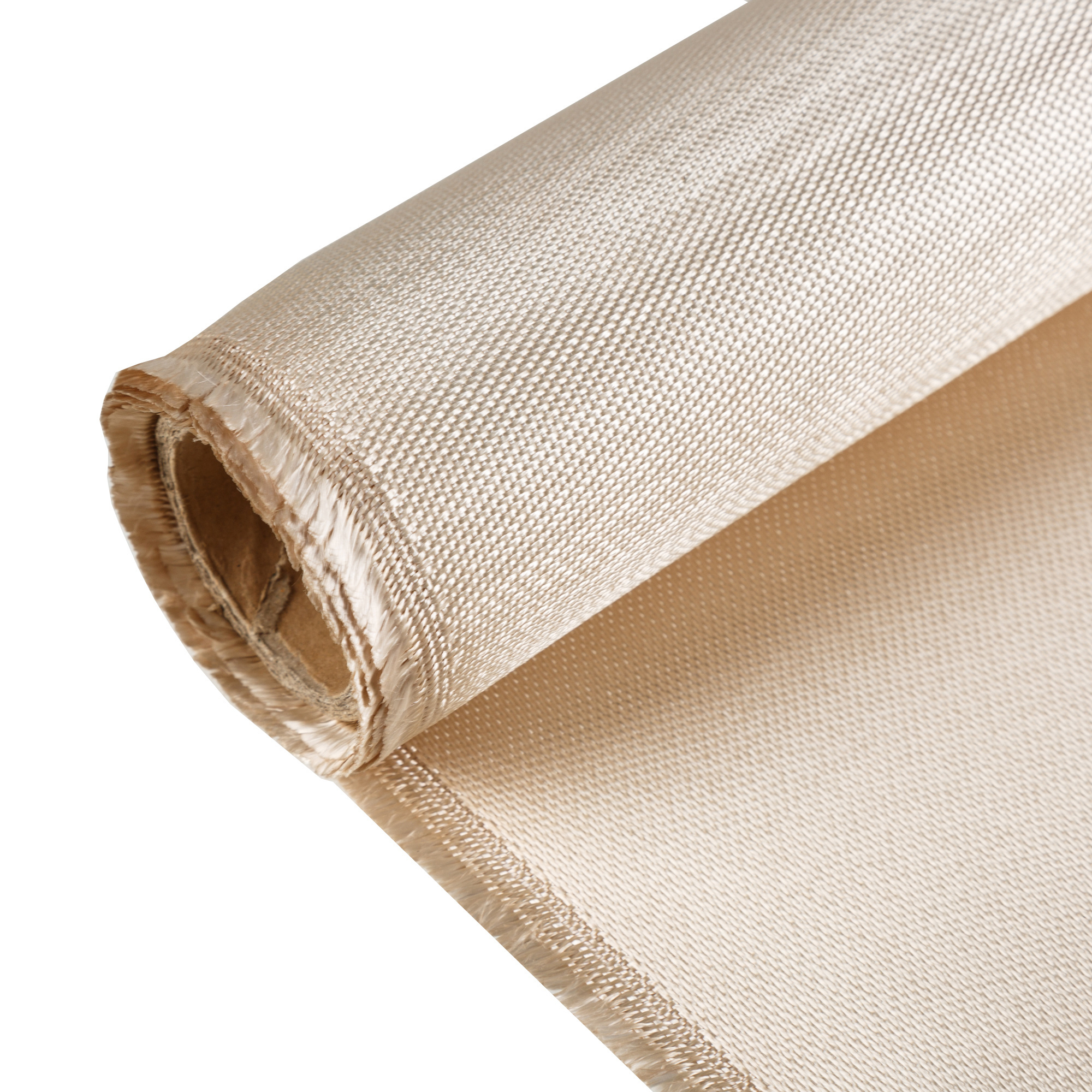

Our High Silica Fiberglass Fabric
Our high silica fiberglass fabric is weaved from high silica fiberglass yarn, and with special treatment. From thickness 0.4mm to 3mm. Usual width is 920mm or 1000mm, but also can be made according to your requirements.
|
Specification |
||||||
|
Item |
Weave |
Weight |
Width |
Thickness |
Warp |
Weft |
|
g/m2 |
cm |
mm |
yards/cm |
yards/cm |
||
|
HS600 |
Satin 8HS |
600±30 |
92 |
0.7±0.05 |
18±2 |
13±2 |
|
HS600-100 |
Satin 8HS |
600±30 |
100 |
0.7±0.05 |
18±2 |
13±2 |
|
HS1100 |
Satin 12/7 |
1250±50 |
92 |
1.3±0.1 |
18±1 |
13±1 |
|
HS1100-100 |
Satin 12/7 |
1250±50 |
100 |
1.3±0.1 |
18±1 |
13±1 |
|
HS600-S |
Satin 8HS |
600±30 |
84 |
0.7±0.05 |
18±2 |
13±2 |
|
HS1100-S |
Satin 12/7 |
1250±50 |
84 |
1.3±0.1 |
18±1 |
13±1 |
