Quick Details
-
Weight (KG):
-
300
-
Voltage:
-
220v customized
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MYONLY
-
Dimension(L*W*H):
-
3370*670*1450mm
-
Name:
-

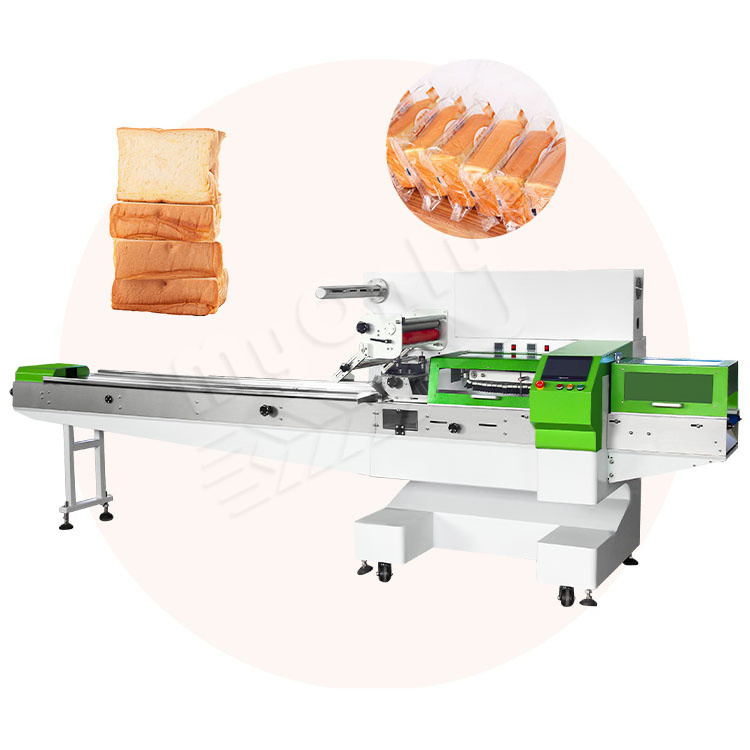

bread pack machine
-
Material:
-
304 Stainless Steel
-
Film width:
-
250/350/450/600/800mm
-
Bag length:
-
65-6000mm horizontal pack machine
-
Bag width:
-
30-400mm
-
Product height:
-
65-100mm
-
Packaging materials:
-
OPP,CPP,KOP,ALU-FILM
-
Power:
-
220V 50/60Hz
-
Bag type:
-
Back Sealing
-
Advantage:
-
Automatic Wrapping Packing Sealing
Quick Details
-
Function:
-
Wrapping, Sealing
-
Packaging Type:
-
Bags, Foil, Pouch
-
Packaging Material:
-
Plastic, Paper
-
Weight (KG):
-
300
-
Voltage:
-
220v customized
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
MYONLY
-
Dimension(L*W*H):
-
3370*670*1450mm
-
Name:
-
bread pack machine
-
Material:
-
304 Stainless Steel
-
Film width:
-
250/350/450/600/800mm
-
Bag length:
-
65-6000mm horizontal pack machine
-
Bag width:
-
30-400mm
-
Product height:
-
65-100mm
-
Packaging materials:
-
OPP,CPP,KOP,ALU-FILM
-
Power:
-
220V 50/60Hz
-
Bag type:
-
Back Sealing
-
Advantage:
-
Automatic Wrapping Packing Sealing
Products Description
Application
Suitable for packaging of various regular objects such as biscuits, rice cakes, snow cakes, egg yolk pies, chocolate, bread, instant noodles, moon cakes, daily necessities, industrial parts, cartons or trays.
Features
1.
Three servo controls, the bag length can be set and cut without any need to adjust the idling, and it can be completed in one step, saving time and film.
2.
Human-machine interface, convenient and quick parameter setting.
3.
Fault self-diagnosis function, fault display is clear at a glance.
4.
High-sensitivity photoelectric eye color mark tracking, digital input of sealing and cutting position, making the sealing and cutting position more accurate.
5.
Independent PID control of temperature, better suitable for various packaging materials.
6.
Positioning stop function, no knife sticking, no waste of film.
7.
The transmission system is simple, the work is more reliable, and the maintenance is more convenient.
8.
All controls are realized by software, which facilitates function adjustment and technology upgrade and never lags behind.
Product Details
Specification
|
Model
|
MYONLY-ZBJ-350S
|
MYONLY-ZBJ-350X
|
MYONLY-ZBJ-450S
|
MYONLY-ZBJ-450X
|
|
Film width
|
Max：350mm
|
Max：350mm
|
Max：450mm
|
Max：450mm
|
|
Bag length
|
90-330mm
|
90-330mm
|
130-450mm
|
130-6000mm
|
|
Bag width
|
30-160mm
|
30-160mm
|
60-200mm
|
60-200mm
|
|
Product height
|
Max：70mm
|
Max：70mm
|
Max：90mm
|
Max：90mm
|
|
Film roll diameter
|
Max：320mm
|
Max：320mm
|
Max：320mm
|
Max：320mm
|
|
Packaging speed
|
60-120bag/min
|
30-120bag/min
|
25-120bag/min
|
25-120bag/min
|
|
Packaging materials
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
|
Power
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 2.6KW
|
220V 50/60Hz 2.6KW
|
|
Machine size
|
3960*770*1450mm
|
3960*770*1450mm
|
4020*820*1450mm
|
4020*820*1450mm
|
|
Machine weight
|
350Kg
|
350Kg
|
300Kg
|
300Kg
|
|
Model
|
MYONLY-ZBJ-600S
|
MYONLY-ZBJ-600X
|
MYONLY-DMZB-600XQD
|
MYONLY-DMZB-800X
|
|
Film width
|
Max：600mm
|
Max：600mm
|
Max：600mm
|
Max：800mm
|
|
Bag length
|
130-450mm
|
150-6000mm
|
150-6000mm
|
150-6000mm
|
|
Bag width
|
80-280mm
|
80-280mm
|
80-280mm
|
100-400mm
|
|
Product height
|
Max：110mm
|
Max：100mm
|
Max：150mm
|
Max：100mm
|
|
Film roll diameter
|
Max：400mm
|
Max：320mm
|
Max：320mm
|
Max：300mm
|
|
Packaging speed
|
20-100bag/min
|
20-80bag/min
|
10-60bag/min
|
25-150bag/min
|
|
Packaging materials
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP, OPP/CPP, KOP/CPP, ALU-FILM
|
OPP,OPP/CPP,KOP/CPP,ALU-FILM
|
|
Power
|
220V 50/60Hz 3KW
|
220V 50/60Hz 3KW
|
220V 50/60Hz 2.4KW
|
220V 50/60Hz 4.5KW
|
|
Machine size
|
4380*970*1500mm
|
4380*970*1500 mm
|
4200*1000*1450mm
|
4300*1200*1500 mm
|
|
Machine weight
|
300Kg
|
300Kg
|
500Kg
|
650Kg
|
