Quick Details
-
Dimension(L*W*H):
-
3150*2200*1950mm
-
Weight:
-
1800 kg
-
Picking Width (Mm):
-
1730
-
Feed rotor:
-
Clip type
-
Number of grass cutters:
-
5 Film
-
Diameter of roller (Mm):
-
194
-
Number of rollers:
-
16
-
Bundling chamber (Mm):
-
1000 *1100
-
Mesh bundle (Mm):
-
300 * 1020
-
Working state Outline Dimension (Mm):
-
3150 * 2200 *1950
-
Machine Weight (Kg):
-
1800
Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
Gengze
-
Application:
-
farm
-
Dimension(L*W*H):
-
3150*2200*1950mm
-
Weight:
-
1800 kg
-
Picking Width (Mm):
-
1730
-
Feed rotor:
-
Clip type
-
Number of grass cutters:
-
5 Film
-
Diameter of roller (Mm):
-
194
-
Number of rollers:
-
16
-
Bundling chamber (Mm):
-
1000 *1100
-
Mesh bundle (Mm):
-
300 * 1020
-
Working state Outline Dimension (Mm):
-
3150 * 2200 *1950
-
Machine Weight (Kg):
-
1800

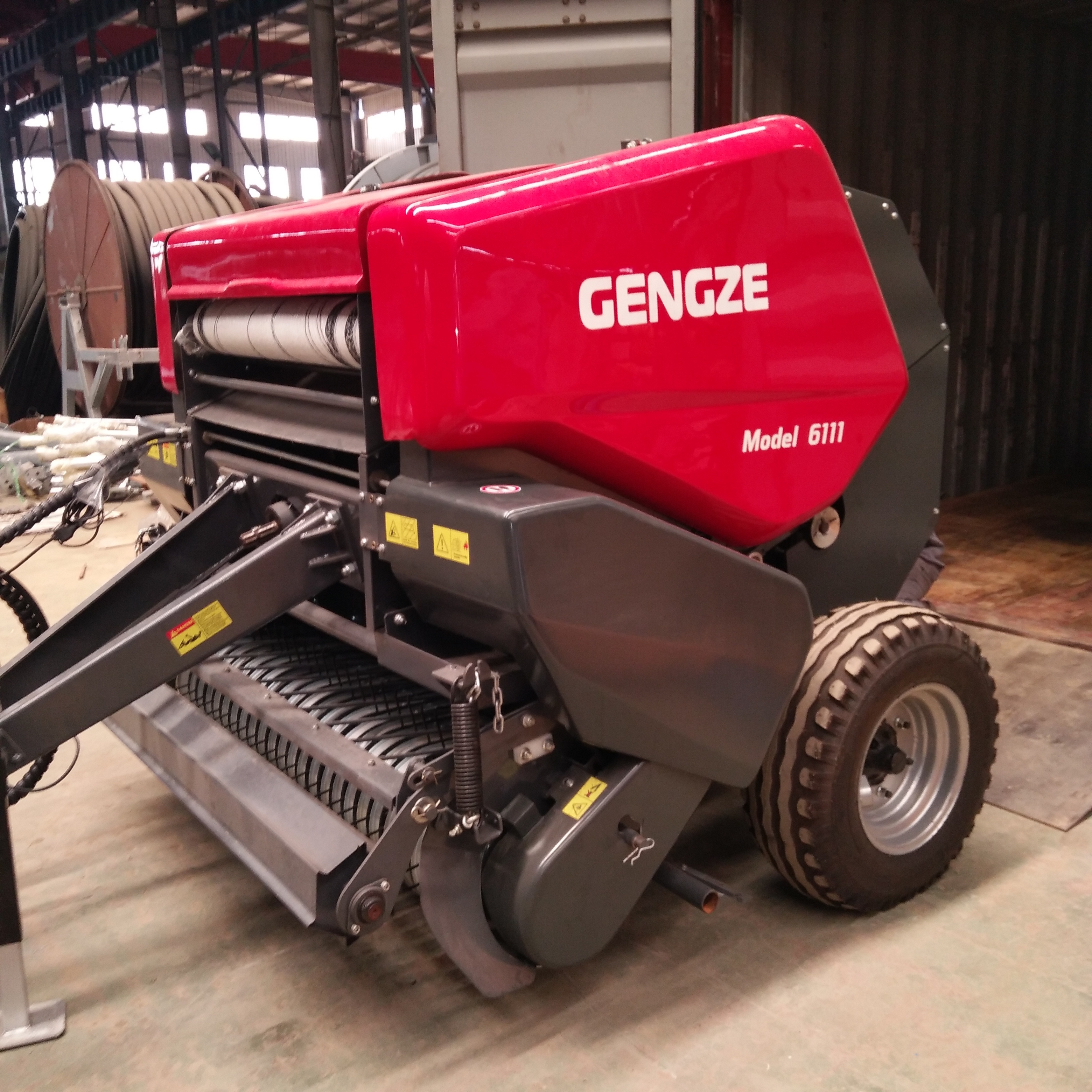

Round Straw Bundle Baler
It is mainly used for harvesting grass or straw. The machine is light in weight, convenient to operate, small in matching power, high in working efficiency and suitable for.
The operation of small plots or wet plots forms round straw bales with regular shape and high density, and the shape of straw bales is 1000*1100mm, which is suitable for long-distance transportation. The weight of straw bales is between 120 and 180kg, which provides conditions for feeding livestock in the later period. It can be operated by one person without the assistance of personnel or machines. This model can be put on the market for the renewal of small square balers.
|
Machine Parameters |
|
|
Picking Width (Mm) |
1730 |
|
Feed rotor |
Clip type |
|
Number of grass cutters |
5 Film |
|
Diameter of roller (Mm) |
194 |
|
Number of rollers |
16 |
|
Bundling chamber (diameter×Length) (Mm) |
1000 × 1100 |
|
Mesh bundle (diameter×Length) (Mm) |
300 × 1020 |
|
Working state Outline Dimension Length×Width×High (Mm) |
3150 × 2200 × 1950 |
|
Drive mode |
Tractor traction |
|
Matching power (KW) |
35-55 |
|
Power Output Shaft Speed (R/min) |
540 |
|
Machine Weight (Kg) |
1800 |
The pickup adopts 48 elastic teeth. The elastic teeth are firmly and reliably fixed, convenient and fast to replace, high in picking efficiency and cleaner in material collection.
The roller is processed after welding, the coaxiality is not more than 0.05 mm,
The bearings are American Peer bearings and are maintenance-free within two years.
The feeding rotor and the stirring dragon adopt an integrated structure, so that the transmission is simpler and more stable.
The cabin adopts locking hook Confucius, which makes the control system simpler and the operation convenient and fast.
The net cutter of the net wrapping device is mechanically driven, so that the net cutter is safer and more reliable,
The net bundle brake adopts brake disc, which makes the net bundle move and stop switching more freely and the net cutting is neat.
The material shredding device adopts spring to control the floating of the cutter,
The invention makes the single cutting tool have floating function, the cutting is safer and more reliable, and the blade is convenient and fast to replace.
