Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
China
-
Brand Name:
-
HUILI
-
Dimension(L*W*H):
-
1100x1850x2800mm
-
Weight:
-
2500 KG
-
Certification:
-
CE and ISO9000
Quick Details
-
Machinery Capacity:
-
2000BPH
-
Packaging Material:
-
Plastic, Glass
-
Filling Material:
-
Beer, Milk, Water, Juice
-
Voltage:
-
220V/380V
-
Place of Origin:
-
China
-
Brand Name:
-
HUILI
-
Dimension(L*W*H):
-
1100x1850x2800mm
-
Weight:
-
2500 KG
-
Certification:
-
CE and ISO9000

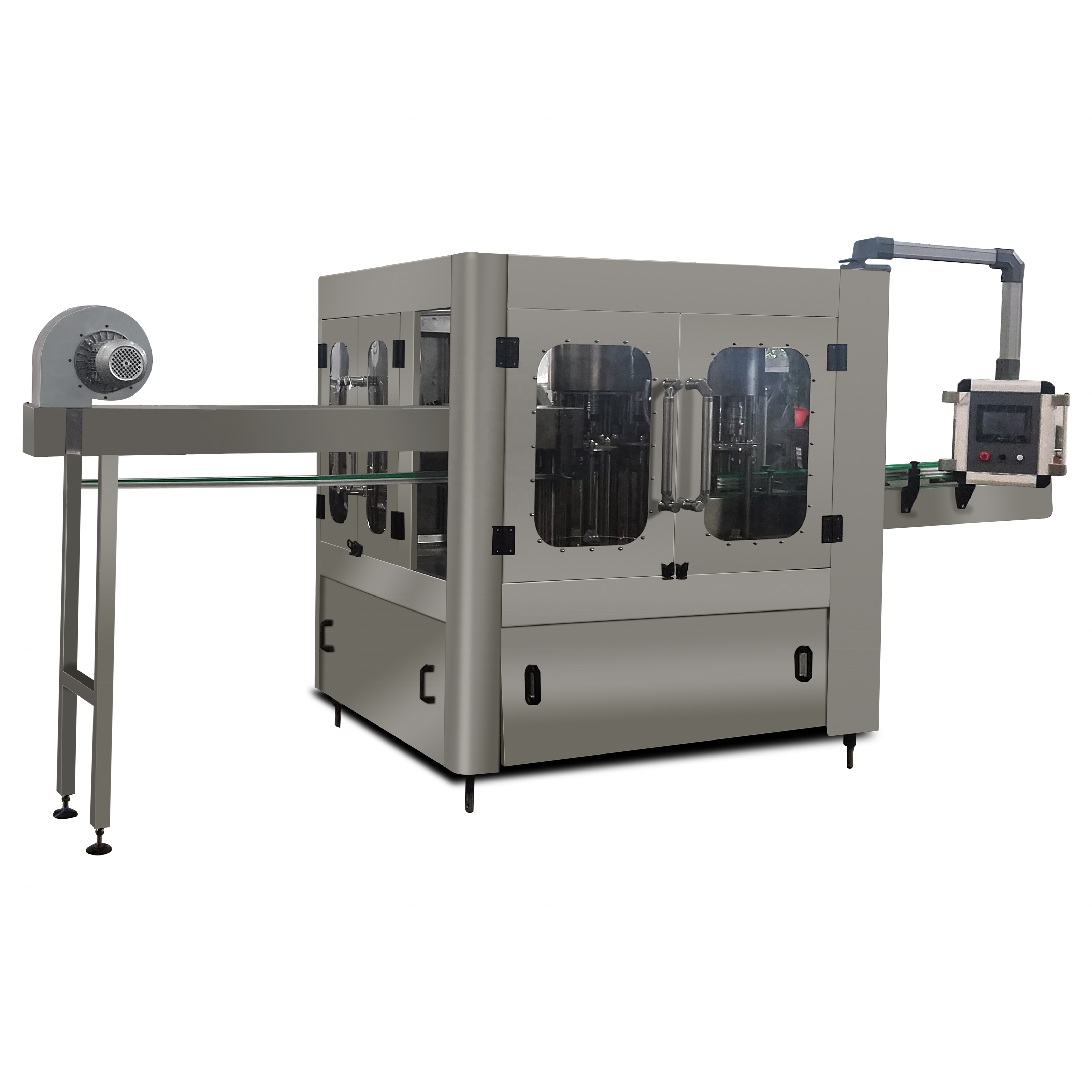

CGF 8-8-3 Bottle washing filling capping machine
The equipment is used in production of non-soda drink of fruit juice, fruit wine, minerals and pure water packed in polyester bottles. Washing, filling and capping are integrated in one machine.
The most advanced technology from Japan and Germany is employed in the design. The gravity fixed liquid surface filling is used. The filling is fast, the amount of liquid is accurately controlled and the dropping and leakage are avoided.
Spring cramps are used in the bottle washing process. The empty bottles can be turned over180~ along the conveying rail. There are two times of internal and external washing, the efficiency of bottle washing is high.
The magnetic torque is used for screw capping. The power of screw capping can be adjusted without steps. The power of the screw capping can be adjusted without steps. The power of the screw capping can also be fixed, and the caps will not be damaged, the capping is reliable.
The whole machine is controlled by PLC with touch-screen as the human-machine interface. The amount of the drinks in the storage tank can be controlled automatically. The filling and capping will be stopped automatically when there is no bottle. When bottles are cramped wrongly or when caps are not available, the machine can be stopped automatically.
The frequency changing technology is used to adjust the operation speed steplessly. The production capacity can be displayed digitally and can be adjusted conveniently.
Technical database:
1, Rated capacity: ( 500ml 2000-3000L/H)
2, Filling material: water
3, Filling container type: PET bottle (special order could design)
4, Filling type: Neck- hold conveyor
5, Cap: Standard HDPE screw cap, diameter 30/25mm
6, Filling temperature: Normal temperature
7, conveyor mode: Empty bottle: Air conveyor Full bottle: Conveyor belt
8, Resource Power: 380V, 50Hz, three phase (special voltage and Hz, please tell us before our factory produce all equipments)
Q1: How to find a Packing machine suitable for my product?
Tell us about your product details and packing requirements.
1. What kind of product you would liek to pack?
2. The bag/sachet/pouch size of you need for the product packing ( the length, width).
3. The weigh of each pack you need.
4. You requirement for the machines and the bag style.
Q2: Is engineer available to serve oversea?
Yes, but the travel fee is responsible by you.
In order to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q3. How can we make sure about the machine quality after packing the order?
Before delivery, we will send you the pictures and videos for you to check the machine quality.
And also you can arrange for quality checking by yourself or by your contacts in China.
Q4. We are afraid you won't send us the machine after we send you the money?
We have our business license and certificate. And it is available for us to use alibaba trade assurance service,
guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q5. Can you explain me the whole transaction process ?
1.Sign the Contact
2.Arrange 30% deposit to our factory
3.Factory arrange production
4.Testing & detecting the machine before shipping
5.Inspected by customer or third agency through online or site test.
6.Arrange the balance payment before shipment.
Q6: Will you provides the delivery service?
A: Yes. Please offer us your final destination, we will check with our shipping agent to quote the shipping cost for
your refernece before delivery.
