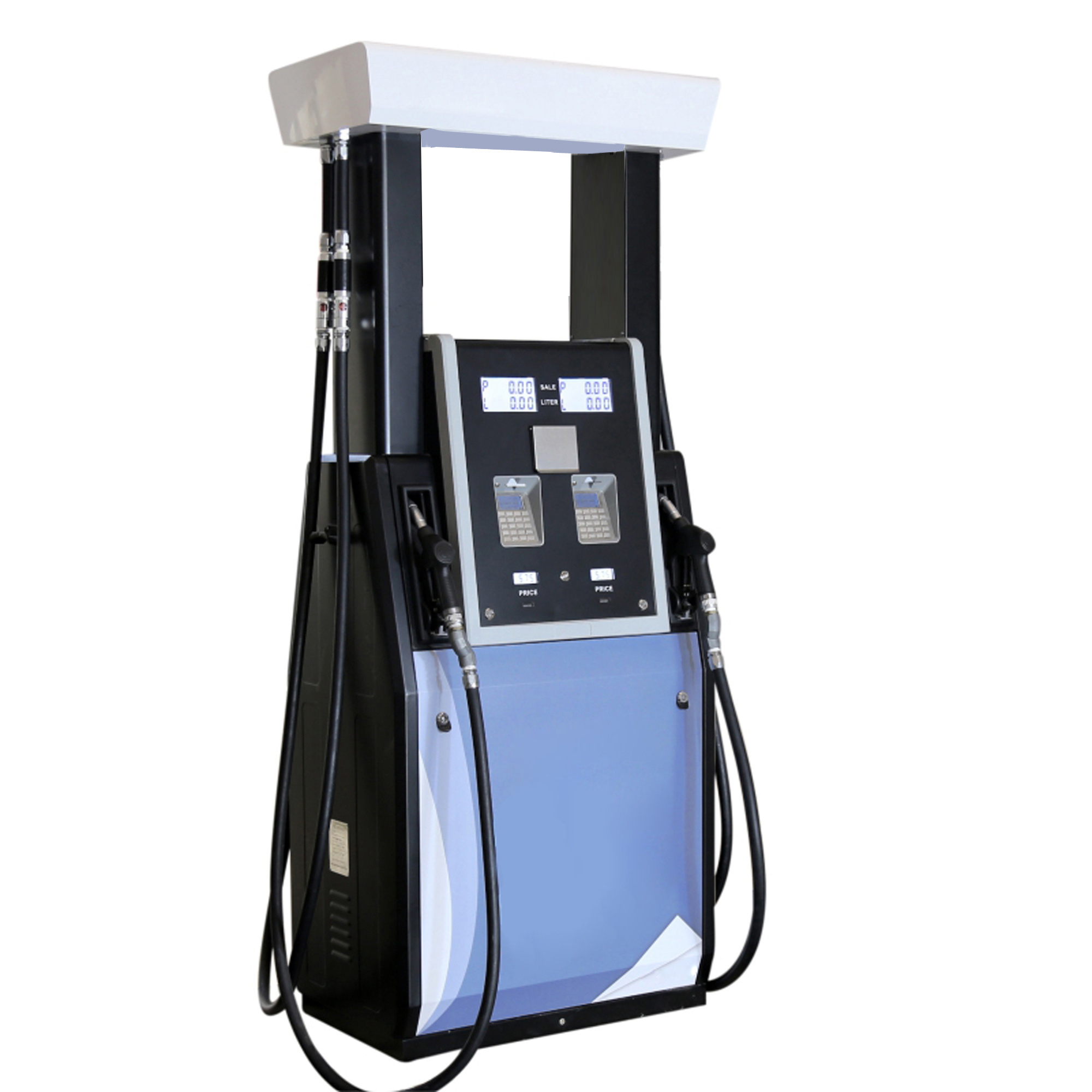

Wayne Fuel Dispenser For Petrol Station Petroleum Filter Fuel Dispenser Gas Station Equipment

Wayne Fuel Dispenser For Petrol Station Petroleum Filter Fuel Dispenser Gas Station Equipment

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1800

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product name:: Fuel Dispenser

Model:: ST-02

Voltage:: 220V

Medium:: Diesel/Gasoline

Flow meter:: Tatsuno, Tokheim, Bennett

fuel Nozzle:: 3/4"

Flow range:: 0-55L/min

Accuracy:: 0.2%

Ambient Temperature:: -25℃~+55℃

Application:: Fuel Filling

Quick Details

Place of Origin:: Henan, China

Brand Name:: Sinotech

Model Number:: ST-02

Product name:: Fuel Dispenser

Model:: ST-02

Voltage:: 220V

Medium:: Diesel/Gasoline

Flow meter:: Tatsuno, Tokheim, Bennett

fuel Nozzle:: 3/4"

Flow range:: 0-55L/min

Accuracy:: 0.2%

Ambient Temperature:: -25℃~+55℃

Application:: Fuel Filling

Wayne Fuel Dispenser For Petrol Station Petroleum Filter Fuel Dispenser Gas Station Equipment

Products Description

Advantages:

The highlight of ST-02 fuel dispenser is that it can be customized, with a variety of options to choose from .

All functions can be customized according to your requirements.

Tatsuno, Tokheim, Bennett, three high-quality pumps and flow meters to meet your needs.

IC card management system can be available.

Parameters

2 Nozzles Fuel Dispenser:
Suction type pump

2 ✖ motor 220V, 50Hz, 0.75kw
2 ✖ Tatsuno gear pump
2 ✖ 85 Tatsuno pump
2 ✖ 11a automatic fuel nozzle
2 ✖ 4.5m oil hose
2 ✖ solenoid valve
2 ✖ breakaway valve
2 ✖ universal joint
2 ✖ flow meter
2 ✖ computer head AIL-S1
2 ✖ metal key plate
2 ✖ 886 display

Details Images

Main Parts

Gear pump

Speed	680-980rpm
Flow Rate	45L/min-90L/min
Vacuum	≥0.05MPa
Noise	≤72dB
Working Pressure	0.18-0.3MPa
Weight	17.5kg
Dimension	363230cm

Flow meter

Discharge rate of each revolution	0.5L
Flow range	5L-100L
Working Pressure	0.12MPa-0.25MPa
Accuracy	±0.2%

Solenoid valve

Medium Temperature	-40℃～+55℃
Pressure Range	0.035-0.35MPa
Flow Range	＞52L/min & 3.5-4.5L/min
Relative Humidity	≤95%
Insulating Strength	≥20MΩ
Lead Length	1.5m
Power	2*5.5W
Voltage Deviation	-10%～+15%
