New Original 0.75 Ton Container And Tail Gate Lift For Truck

New Original 0.75 Ton Container And Tail Gate Lift For Truck

FOB Reference Price: Get Latest Price

≥1 Sets

US $2000

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: GOCHA

Fork Length:: 1070mm

Fork Width:: 122mm

Overall Dimensions:: 3610*1160*2060mm

Weight (KG):: 4130 kg

Product Name:: 2.5 ton diesel forlift

Rated load:: 2500kg

Load center:: 500mm

Wheelbase:: 1600mm

Wheel track:: 970/970mm

Engine brand:: XINCHAI

Engine model:: 4D27G31

Rated power of engine:: 36.8kw/r.p.m

Operating pressure:: 18.5Mpa

Transmission:: mechanical/hydraulic

Quick Details

Min. Lifting Height:: 3000

Warranty:: 1 Year

Place of Origin:: China

Brand Name:: GOCHA

Fork Length:: 1070mm

Fork Width:: 122mm

Overall Dimensions:: 3610*1160*2060mm

Weight (KG):: 4130 kg

Product Name:: 2.5 ton diesel forlift

Rated load:: 2500kg

Load center:: 500mm

Wheelbase:: 1600mm

Wheel track:: 970/970mm

Engine brand:: XINCHAI

Engine model:: 4D27G31

Rated power of engine:: 36.8kw/r.p.m

Operating pressure:: 18.5Mpa

Transmission:: mechanical/hydraulic

Products Description

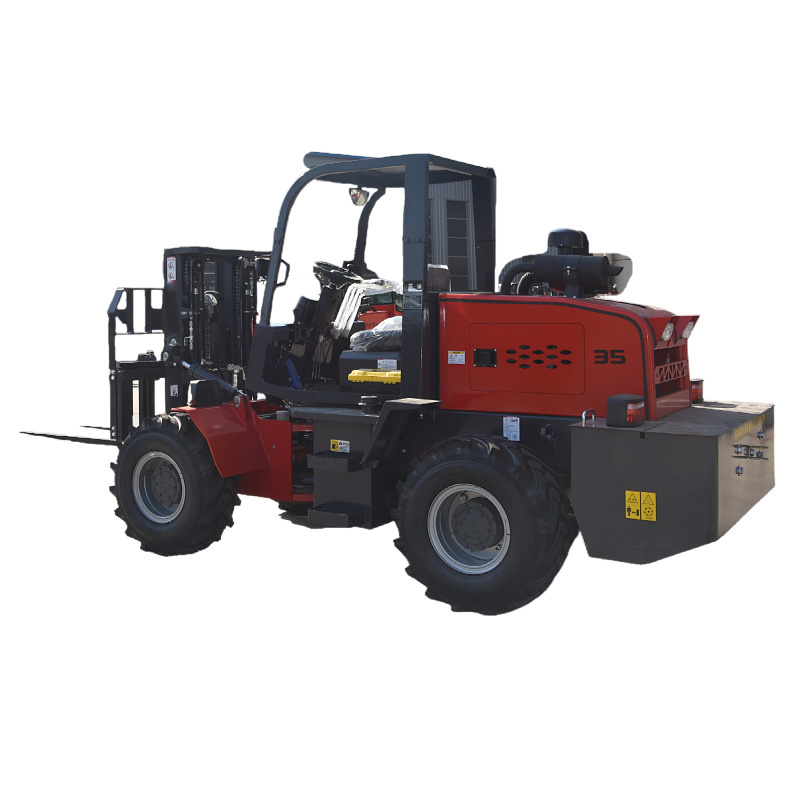

GA-F25 Diesel Forklift

Forklift, also known as a lift truck or forklift truck, is a powerful industrial vehicle used to lift and transport heavy
materials and goods. It is commonly found in warehouses, distribution centers, and manufacturing facilities.

Xinchai 485 diesel engine Zhongnan Mechanical Transmission Two-section three-section door frame Zhengxin tire Fork 1070mm Toolbox/Repair Kit

Sturdy pneumatic tire

Comfortable leather seats

XINCHAI 4D27G31Engine

Model	GA-F15	GA-F20	GA-F25	GA-F30
Minimum turning radius	1955mm	2220mm	2240mm	2400mm
Height of overhead guard	2040mm	2140mm	2140mm	2165mm
Height of overhead guard	13.5km/h	19km/h	19km/h	19km/h
Maximum lifting speed with full load	590mm/s	550mm/s	550mm/s	480mm/s
Maximum traction with full load	12.3KN	12.3KN	12.3KN	13.5KN
Maximum climbing angle	20°	20°	20°
Mast height with backrest raised	4030mm	4220mm	4220mm	4265mm
Mast closed height	1995mm	2060mm	2060	2060mm

Company View

Exhibitions

Certifications

Production Line

Package & Shipping

More Products

FAQ

1: What kind terms of payment can be accepted? A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted 2: What certificates are available in Machinery? A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC. 3: What about the delivery time? A: 7-20 days after receiving the deposit. 4: What about the warranty time? A: 12 months after shipment or 2000 working hours, whichever occuts first. 5. What about the Minimum Order Quantity? A: The MOQ is 1 pc.
