- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TITAN
-
Model Number:
-
PVC Ceiling
-
Product Name:
-
PVC Ceiling
-
Raw Materials:
-
PVC resin ,Calcium Carbonate etc.
-
Surface Treatment:
-
Common Printing,High Glossy,Transfer Printing,Laminated Printing
-
Shape:
-
Flat and Groove
-
PVC Content:
-
40%, 45%, 50%, 55%, 60%, 65%, 70%
-
Length:
-
2.95m, 3m, 3.8m, 5.6m, 5.8m, 5.95m
-
Width:
-
185/200/250/300/380mm
-
Thickness:
-
5/5.5/6/7/7.3/7.5/8/9/9.5/10/12/15
-
Weight:
-
1.8-3.6kg/m2
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Hotel
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TITAN
-
Model Number:
-
PVC Ceiling
-
Product Name:
-
PVC Ceiling
-
Raw Materials:
-
PVC resin ,Calcium Carbonate etc.
-
Surface Treatment:
-
Common Printing,High Glossy,Transfer Printing,Laminated Printing
-
Shape:
-
Flat and Groove
-
PVC Content:
-
40%, 45%, 50%, 55%, 60%, 65%, 70%
-
Length:
-
2.95m, 3m, 3.8m, 5.6m, 5.8m, 5.95m
-
Width:
-
185/200/250/300/380mm
-
Thickness:
-
5/5.5/6/7/7.3/7.5/8/9/9.5/10/12/15
-
Weight:
-
1.8-3.6kg/m2
Product Description

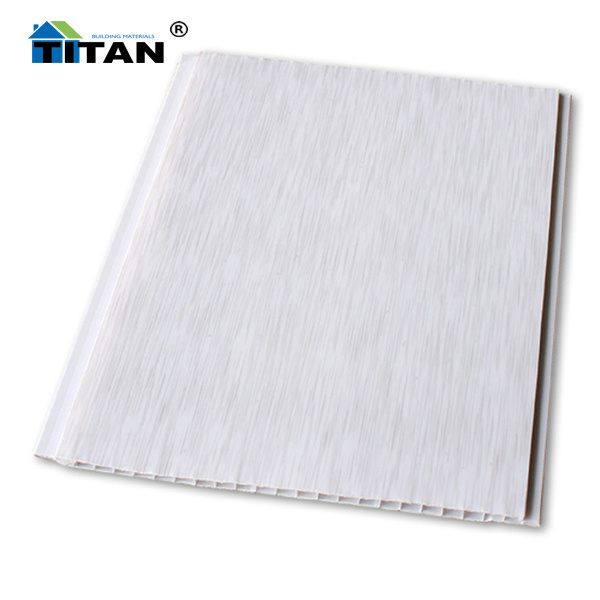

| TITAN PVC Ceiling Panels are hollow-core Decorative panels for any part of your home or office interiors.It is waterproof and very easy to clean, which makes them also ideal for bathrooms, toilets, kitchens, basements, garages and all other living areas.Especially in damp and moist areas PVC Panel is an excellent alternative to decorate your ceilings effectively, aesthetically pleasing and completely waterproof, bringing home decoration to the next level. |
|
Main Characteristic
1. Self-fire extinguishing, non-flammable.
2. It is impenetrable by insects or termites, and won' t rot or rust.
3. Resistance to weather/ special chemicals; Waterproof / Washable.
4. The excellent rigid and superior impacted surface is without any peeling.
5. Natural wood grain: showing authentic wood structure and artistic sense.
6. Easy to be cut, drilled, nailed, sawed, and riveted. DIY is all right.
7. Quick maintenance and no need of painting.
8. The simple and fast installation can save a lot of time and manpower cost.
|
Width (mm) |
185,200,250,300,380,595 |
| Thickness (mm) |
5,5.5,6,7,7.3,7.5,8,9,9.5,10 mm |
|
Length (mm) |
2000,2700,3000,4000,5800,5950 mm |
|
Weight (kg) |
1.55,1.7,1.8,1.9,2.0,2.1,2.2,2.3,2.45,2.5,2.6,2.7,2.8,2.9,3.0,3.1,3.2,3.3,3.4,3.5 kgs |
|
PVC Content (%) |
40%,45%,50%,55%,60%,65%,70%,75%,80% |
|
Surface |
Printing,High Glossy,Hot Stamping,Laminated |
Manufacturing Proces
Packaging & Shipping
Installation
How to install PVC Panels
pvc panels as the important material used in building industry. how it is installed? we show you the correct installation for your pvc panels for walls and ceilings. you may find yourself an export in installing pvc panels after reading through this s
Installation Instructions
What you have to remember:
Use the panel for indoor uses only.
The background must be sound, dry and in good condition.
When using the panels in high pressure shower areas, use silicon sealant in the
groove on the back of the lip for a water-tight seal.
Before fitting panels around sources of heat, for example radiators or fire places,
make sure the temperature level doesn't exceed allowed level of 140℉ (60℃).
Decorative plastic panels are a decorative covering that offers many benefits as they are
waterproof, maintenance free, extremely versatile and very easy to install. Our panels can be easily applied to any surface. By fitting them yourself using our easy guide, you won't have to hire costly professionals.
All
pvc panels
are tongue and groove and need only simple tools to fit and attach them.
Plastic panels
can be stuck to any surface including uneven surfaces, with little or no
preparation required. Decorative plastic also offer a range of finishing accessories such as edge trims, internal and external corners, cornice trims and skirting boards that ease the task of fitting and ensure a perfect finish, whatever your room is shaped.
Surface preparation In the majority of the cases there is virtually no preparation needed - the panels can go straight onto brick, cement block, plaster, timber wall studs or stud-work and can even go over existing ceramic tiles.
Sometimes bathrooms are half-tiled. In that case tiles can be left in place and the top half leveled out to the same level. Before starting installation, make sure that the extra thickness of the wall paneling does not interfere with the operation of existing fixtures such as bath taps, shower mixer valves and doors. If the surface is very uneven, wall studs can be used to achieve a level surface and then the panels can be attached to the wall studs. Position studs with 1 to 2 ft (30 to 60 cm) intervals.
The use of studs allows you to install cables for switches, plugs for power supply, phones
sockets etc. Pl.s note that building codes might require that panels thinner than 1/4" be
installed over a non-combustible backer over timber studs. Such panels should be installed over a solid, non-combustible backing such as gypsum wallboard.
Cutting the Panels
Panels can be easily cut or trimmed using a hand saw, table saw, portable circular saw, jig saw or sharp utility knife. We recommend using a fine-tooth saw. The finer the teeth, the neater the cut you will achieve.
Panels are normally fixed vertically i.e. from floor to ceiling; however panels may also be fitted horizontally if the shape of the room makes this an easier option. Similarly, ceiling panels can be run in either direction. Of course, you may have a preference as to which way you would like run the panels for visual effect.
Fitting Instructions:
Decorative plastic panels are easily fixed to almost every surface. Depending on the type of wall or ceiling you can choose different types of fitting.
Nailing:
Apply nails evenly and level in the panel lip. Be careful not to hit the panel with the hammer.This method only applies when fixing the cladding to a wooden surface or battening. Make sure the battening is flat and level, packing out where necessary on uneven walls so that when applied the cladding does not develop curvature and follow the walls contours. In cases of damp and uneven walls we recommend the use of treated timbers for battening. Ensure that you leave sufficient ventilation behind the cladding by providing air gap.
Screw fix:
Apply screws through the panel lip as shown in the diagrams below. Screw fixing can be made to wooden wall studs. However breezeblock, brick or plasterboard will require the wall to be plugged before screwing. When the first plank is fixed in place the next conceals the previous fixing see diagram below.
Stapling:
You can use stainless steel staples when fixing to plaster or wooden wall studs - this method is particularly suitable when using wall studs. Always make sure your wall studs are flat and level, packing them out where necessary on uneven walls, this will prevent the panels from developing a curvature following the wall contours.
Gluing:
This is the method most preferred by many installers however you can only use adhesive
when applied to a dry, even wall. The wall must be free of any greasy substances and dust.Only use specialist adhesive. Below is one of the methods aimed to minimize the use of trims and achieve very neat and professional look and feel:
Start working from one corner. If cornice will not be used to cover the top edge of the panel, then first fix start/end trim or cornice trim at the top along the wall where panels will be fixed.
Mitre the ceiling trims where necessary. First, trim off the tongue of the first panel. Apply adhesive to the back of the panels or onto the wall or wall studs. Insert panel into the ceiling trim, if installed and slide it into its position in the corner. Make sure that it is placed vertically before fixing it to the wall.
Slightly tap the panel to achieve better adhesion. Fix panel in place with staples through the lip on the groove side of the panel. Follow the same procedure to fix the first panel along the other wall from the start corner. Make sure that the gap between panels in the corner is small enough to be properly sealed by silicone. If the gap is too big (for example, due to the walls being not plumb), trim the
panels
accordingly to minimize the gap.
Continue installation along one of the walls by inserting the next panel into the groove of the first panel. Carefully measure, mark and cut the last panel to closely fit into its position on the wall. Follow the same steps to finish all the walls. Use a fine tooth hole-saw to make holes for taps, pipes, etc. Always measure twice and with care. When all walls are covered use neutral cure silicone (anti-fungal silicones recommended) to seal the corners and horizontal joints against baths or shower trays as well as the gaps between panels and bathroom fixtures.
The joints between the panels do not need to be sealed, but in a shower area a thin bead of silicone can be applied between tongue and groove to ensure complete protection against moisture - just to be on the safe side.
Apart from using trims (pictured above), both internal and external corners can be neatly done by bending the panels - just carefully cut the back face of the board along where the corner will be and shape the panel into the internal or external curve.
Ceilings:
Use the same
installation
technique when fitting panels onto the ceilings - apply adhesive to an existing ceiling or wall studs and fix the panel with staples to hold it in place.
When fitting halogen ceiling lights there needs to be a 10mm gap between the halogen bulb and the panel. Once the panels are installed there might be other items that you need to fix to the walls, such as soap dishes, shower curtain rails, etc. For lightweight items you can fix directly to the panels using plaster plugs or through the panel into the wall. For larger or heavier items you it is recommended that you fix wooden wall studs behind panels where accessories are to be fixed. Use of spacers between the wall and the surface of the fixed panels is also recommended when fitting heavy items
