Quick Details
Quick Details
-
Type:
-
Industrial Computer Accessories
-
Brand Name:
-
Kang Tai KTB
-
Place of Origin:
-
Beijing, China
Features:
●
Support a ATX motherboard or a PICMG passive bottom plate with up to 7 slots.
●
Shock-resistant disk drice bay design holds up to three 5.25" and one 3.5"
●
Intel H110 chipset, supports 6~9th Gen LGA1155 Intel Core i3/i5/i7 processor
●
Support up to 64GB memory;Supports SATAIII、mSATA
●
Support VGA+ HDMI display interface;2x LAN
●
Support 6 x COM，4x USB3.0，6x USB2.0
●
Support 1x PCIe 16X，1x PCIe 4X，4x PCI expansion slots
●
Flexible mechanical design,supports 250W/300W/500W and redundant ATX power supplies.
|
Product Specifications:
|
|
|
|
Model
|
KTB IPC-4000-706G2
|
|
|
Product Name
|

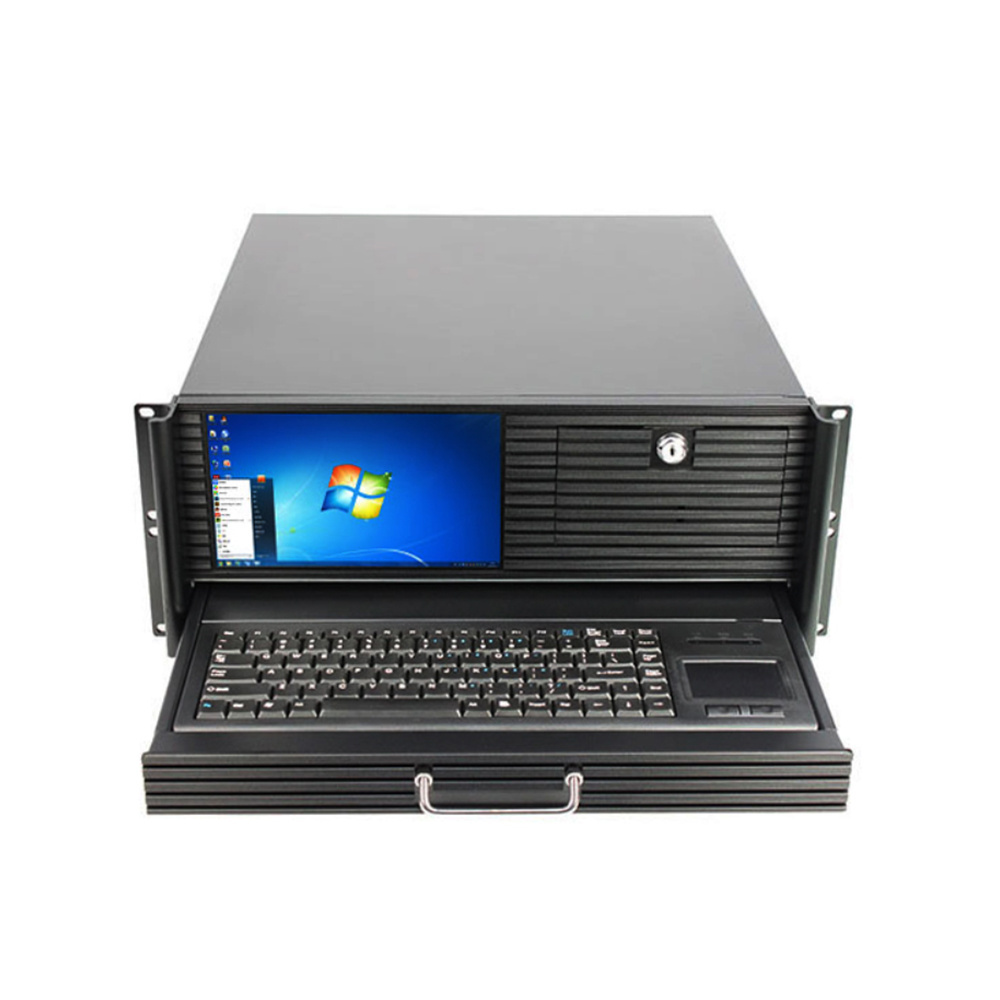

KTB 4U Rackmount Industrial Computer
|
|
|
Color
|
Black
|
|
|
Material
|
Ma steel, high grade non-flower galvanized sheet, aluminum brushed panel on the front, black sand painting on the chassis.
|
|
|
Processor System
|
Support 6~9th Gen LGA1151 Intel Core i3/i5/i7 processor
|
|
|
Chipset
|
Intel H110
|
|
|
Memory
|
2x DIMM memory slots supporting DDR4 , supports up to 64GB(Optional configuration)
|
|
|
Storage
|
Support 3xSTATIII，1x mSATA(Optional configuration)
|
|
|
BIOS
|
64Mb SPI FLASH
|
|
|
Display
|
Provide VGA+ HDMI display interface
VGA:1 standard DB15 VGA interface, supports resolution up to 1920x 1080 @ 60Hz
HDMI:1 standard HDMI interface,supports resolution up to 4096x 2304 @ 60Hz
|
|
|
Network
|
Onboard 2 Intel 10/100/1000Mb adaptive network cards, using Intel 219v/211 network card chip
|
|
|
Serial port
|
Provide 6 x COM Among them,
COM1 supports RS232/485/422,COM 2 supports RS232/485，COM 3-6 support RS232
|
|
|
USB
|
4xUSB3.0 ，6x USB2.0，2x USB2.0 on the front panel
|
|
|
DVD
|
DVD/DVDRW（optional）
|
|
|
AUDIO
|
Realtek ALC662; Supports Line-out and Mic-in
|
|
|
OTHERS I/O
|
PS/2 ，1x LPT
|
|
|
GPIO
|
Provide a 2x 5-pin 2.54mm GPIO pin interface, Supporting 4 inputs and 4 outputs
|
|
|
Watchdog
|
Watchdog function, supports 1 to 255 seconds of system restart
|
|
|
Expansion Slot
|
1 PCIe 16X slot
1 PCIe 4X slot
5 PCI slots
|
|
|
Power Requirement
|
Standard ATX 24pin power supply,250W/300W/400W/500W/Redundant power supply(optional)
|
|
|
Operating environment
|
Operating Temperature:0 ~ 60 °C
Operating humidity: 5%~95%,
No condensation Non-Operating Temperature:-20 ~85℃
|
|
|
OS
|
Supports Win7/8/10 ，Linux
|
|
|
Dimensions
|
483mm ×500mm ×179mm(WxDxH)
|
|
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer with over 18 years of OEM/ODM experience. We are confident to provide you with better quality, better price satisfactory products.
Q2: Do you accept OEM/ODM orders?
A2: Of course, we have our own R&D team to support the customization of motherboard design and machine design, testing and production.
Q3: What terms of payment do you accept?
A3: We suggest you try Alibaba Trade Guarantee first. It will be more advantageous for you.
Q4: Do you provide sample service?
A4: Yes, we can provide samples on your request before mass production
Q5: How long is your product warranty?
A5: Under normal circumstances, we provide 2 years warranty for all products. If you want to extend the warranty period, we can negotiate according to the actual situation of your order.
Q6: What kind of packaging do you provide for the motherboard?
A6: We usually use bulk packing as the standard, but if you need retail packing, please let us know before placing your order and we will provide it for you.
