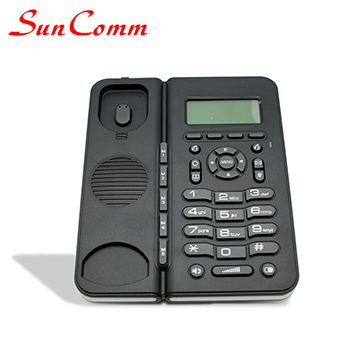

VoIP Phone with PoE

Audio Features

• HD voice: HD handset, HD speaker
• Codec: G.722, G.711(A/μ), G.723.1, G.729AB, G.726, iLBC
• DTMF: In-band, Out-of-band (RFC 2833) and SIP INFO
• Full-duplex hands-free speakerphone with AEC
• VAD, CNG, AEC, PLC, AJB, AGC

Phone Features

• 2 SIP accounts
• Call hold, mute, DND
• One-touch speed dial, hotline
• Call forward, call waiting, call transfer
• SMS
• Redial, call return, auto answer
• Local 3-way conferencing
• Direct IP call without SIP proxy
• Ring tone selection/import/delete
• Set date time manually or automatically
• Dial plan

Directory

• Local phonebook up to 500 entries
• Black list
• XML/LDAP remote phonebook
• Intelligent search method
• Phonebook search/import/export
• Call history: dialed/received/missed/forwarded

IP-PBX Features

• Anonymous call, anonymous call rejection
• Hot-desking, emergency call
• Message Waiting Indicator (MWI)
• Voice mail
• Call park, call pickup
• Intercom, paging
• Music on hold
• Call completion
• Call recording

Display

and

Indicator

• 128 x 64-pixel graphical LCD with backlight
• LED for call and message waiting indication
• Intuitive user interface with soft keys
• National language selection
• Caller ID with name, number

Other Physical Features

• External universal AC adapter (optional):
• AC 100~240V input and DC 5V/1A output
• Power consumption (PSU): 1.3-2.1W
• Power consumption (PoE): 1.8-3.1W
• Dimension: 210 x 170 x 45mm
• Operating humidity: 10~95%
• Operating temperature: -10~50 ° C

Feature keys

• 5 features keys: headset, phonebook, mute, speaker, redial
• 3 “ soft ” keys
• 5 navigation keys
• Volume control keys
• 2 x RJ45 10/100M Ethernet ports
• Power over Ethernet (IEEE 802.3af), class 2
• 1 x RJ-9 (4P4C) handset port

Network and Security

• SIP v1 (RFC2543), v2 (RFC3261)
• Call server redundancy supported
• NAT transverse: STUN mode
• Proxy mode and peer-to-peer SIP link mode
• IP assignment: static/DHCP/PPPoE
• HTTP/HTTPS web server
• Time and date synchronization using SNTP
• UDP/TCP/DNS-SRV(RFC 3263)
• QoS: 802.1p/Q tagging (VLAN), Layer 3 ToS DSCP
• SRTP for voice
• Transport Layer Security (TLS)
• HTTPS certificate manager
• AES encryption for configuration file
• Digest authentication using MD5/MD5-sess

Management

• Configuration: browser/phone/auto-provision
• Auto provision via FTP/TFTP/HTTP/HTTPS for mass deploy
• Phone lock for personal privacy protection
• Reset to factory, reboot
• Package tracing export, system log

Package Features

• Qty/CTN: 10 PCS
• N.W/CTN: 9.3 KG
• G.W/CTN: 10.3 KG
• Gift box size: 230 X 290 X 55 mm
• Carton Measurement: 480 X 295 X 310 mm
