OEM/ODM PIR Ceiling Occupancy Motion Sensor Detector Light Switch
OEM/ODM PIR Ceiling Occupancy Motion Sensor Detector Light Switch
OEM/ODM PIR Ceiling Occupancy Motion Sensor Detector Light Switch
OEM/ODM PIR Ceiling Occupancy Motion Sensor Detector Light Switch
OEM/ODM PIR Ceiling Occupancy Motion Sensor Detector Light Switch
OEM/ODM PIR Ceiling Occupancy Motion Sensor Detector Light Switch
OEM/ODM PIR Ceiling Occupancy Motion Sensor Detector Light Switch
OEM/ODM PIR Ceiling Occupancy Motion Sensor Detector Light Switch

OEM/ODM PIR Ceiling Occupancy Motion Sensor Detector Light Switch

FOB Reference Price: Get Latest Price
≥10 Pieces
US $115
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Description:
Ultrasonic Ultra-Sensitive Sensor
Product name:
Occupancy Motion Sensor
Theory:
Infrared motion sensor, Ultrasonic Sensor
Application:
Wide Range, Industrial Automation
Type:
Waterproof
Material:
Plastic
Color:
White
Certificate:
ROHS
Power supply:
12-24V DC
Warranty:
12 Months
Name:
Motion Sensor
Usage:
Position Sensor
Output:
Digital Sensor
Amplifier Type:
Multi Function
Interface:
Not Applicable
Function:
Latch
Humidity Range:
0% to 90%
Current - Supply:
14° to 122°F (-10° to 50°C)
Voltage - Supply:
24vdc
Size / Dimension:
110*86mm
Output Type:
24vdc
Mounting Type:
celling mount
Bandwidth:
86
Operating Temperature:
0% to 90%

Quick Details

Model Number:
IQ-SM01
Place of Origin:
Guangdong, China
Brand Name:
okystar
Description:
Ultrasonic Ultra-Sensitive Sensor
Product name:
Occupancy Motion Sensor
Theory:
Infrared motion sensor, Ultrasonic Sensor
Application:
Wide Range, Industrial Automation
Type:
Waterproof
Material:
Plastic
Color:
White
Certificate:
ROHS
Power supply:
12-24V DC
Warranty:
12 Months
Name:
Motion Sensor
Usage:
Position Sensor
Output:
Digital Sensor
Amplifier Type:
Multi Function
Interface:
Not Applicable
Function:
Latch
Humidity Range:
0% to 90%
Current - Supply:
14° to 122°F (-10° to 50°C)
Voltage - Supply:
24vdc
Size / Dimension:
110*86mm
Output Type:
24vdc
Mounting Type:
celling mount
Bandwidth:
86
Operating Temperature:
0% to 90%
Automatic Dimming System Introduction
okystar won the title of Alibaba's major customer
Products Description

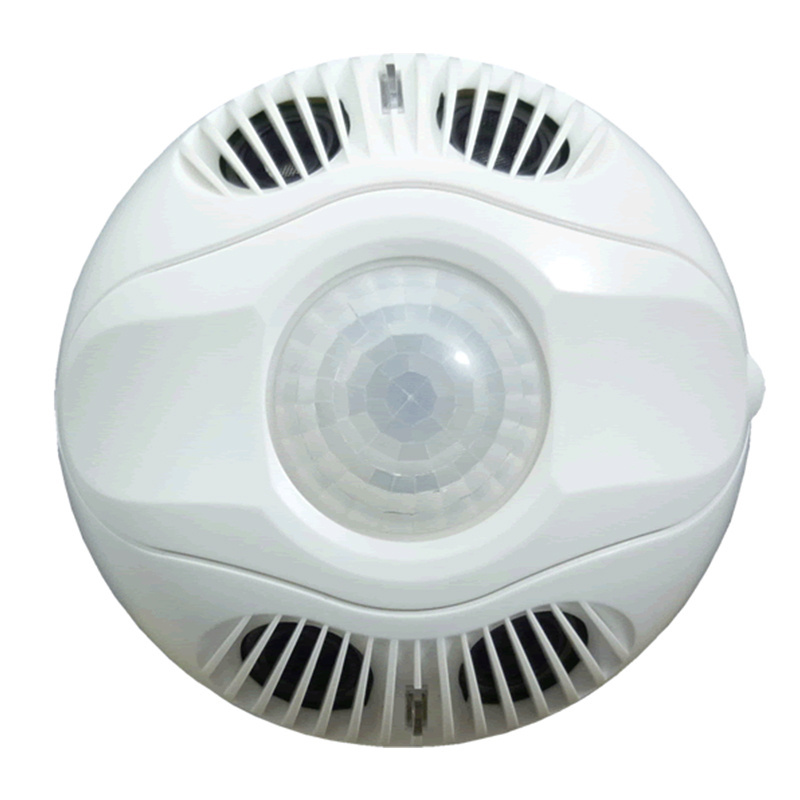

IQ-SM01 is a Dual-technology Motion Sensor. Mounted  at a height of 2.4 m,this sensor provides full circular 8m diameter detection for minor motion, e.g.hand  movement of people in that area. IQ-SM01 can be surface mounted or flush mounted for an attractive,  un-obstructive appearance.
Product Features

· Passive Infrared Detection · Ultrasonic Detection · Wall or ceiling mount occupancy sensor · Dual-technology motion detection · Surface mounted or flush mounted
Product Specifications
RF-Immunity
20 V/m 10-1000 Mhz 10 V/m 1- 2 GHz
PIR
(1) Red LED, indicates infrared motion
Ultrasonic
(1) Green LED, indicates ultrasonic motion
Sensor Technology
Dual-Technology Passive Infrared and Ultrasonic 40 kHz
Power Usage
1 Watt
Horizon Detection Degree:
120 °
Product Photo
Our Company
Okystar Technology Co., Ltd is subsidiary of Okystar Technology Group Co., Ltd, which holds 4 subsidiary companies and more than 100 skilled workers,5. technicians.Okystar Tech Co.,Ltd was built in 2004.We mainly manufacture and export lighting control system including DALI, 0-10V, Leading / Trailing Edge Dimmer, Programmable Touch Panel and etc.
After 10 years development, our company has grown into a large high-tech group corporation integrated industry, technology and trading. With electronic information industry as our main business, we keep being top 10 in the board, shield, sensor, modules. Now we launch new lighting control system module which will keep our competitiveness in the market.
Exhibition
FAQ
1.Can you make customer design please?
Yes., we can. Okystar have 6-8 engineers team.
We can make new design according to your request.

2.Can you make our logo in the package please?
Yes. We can. Such as printing your logo.

3.How about your quality of products?
Less than 2% repairing rate within one year.
Our QC team has 3 members who test quality before shipping.

4.What is warranty of your products?
Refunds within 3 months,2 years warranty replacement or repairment for free.

5.Are you a manufacturer?
Yes, we are. Our factory and office are in Shenzhen, welcome to visit us at any time.
