Smooth Surface Gas Station Use Fuel Hose 3/4 19mm Flexible Gasoline Oil Fuel Hose Pipe

Smooth Surface Gas Station Use Fuel Hose 3/4 19mm Flexible Gasoline Oil Fuel Hose Pipe

FOB Reference Price: Get Latest Price

≥500 Meters

US $2.1

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Inner Tube:: gasoline resistant rubber

Reforcement:: one braid of high-tensile steel wire

Outer Tube:: gasoline resistant rubber

Inner Diameter:: 5/8" , 3/4", 1"

Outer Diameter:: 25mm, 30mm, 37mm

Length:: 50 meters / roll

Color:: Black Red Blue Green Yellow

Surface:: smooth surface

Working Pressure:: 30 bar

Bursting pressure:: 70 bar

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Passion

Model Number:: fuel hose 3/4 19mm

Inner Tube:: gasoline resistant rubber

Reforcement:: one braid of high-tensile steel wire

Outer Tube:: gasoline resistant rubber

Inner Diameter:: 5/8" , 3/4", 1"

Outer Diameter:: 25mm, 30mm, 37mm

Length:: 50 meters / roll

Color:: Black Red Blue Green Yellow

Surface:: smooth surface

Working Pressure:: 30 bar

Bursting pressure:: 70 bar

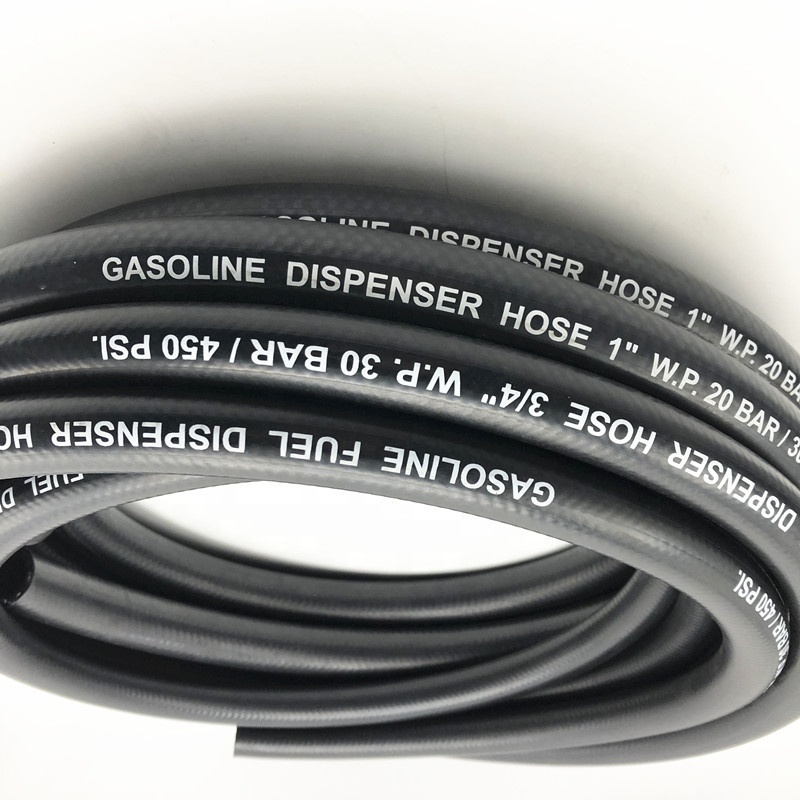

Fuel Dispenser Hose Description

Product Introduction

Structure-

Tube : NBR
Reinforcement : Single High-strength wire braided.
Cover : NBR/PVC blend rubber.
Temperature : -40℃ to +80℃
Color :Black, Blue, Red and Green etc
Application :For fuel dispensing pump applications, including gasoline, diesel, oxygenated fuels (up to a maximum of 15% oxygenated
compounds), lubricating oil, and other mineral oil etc.
Standard length: Random length between 30m-60m

Specifications

Item code	Inner Diameter			Outer Diameter	Working Pressure			Burst Pressure	Weight	Weight
/	inch	mm	mm	bar	psi	bar	psi	kg/m
HPR-1	5/8"	15.9	25.4	30	450	120	1740	0.57
HPR-2	3/4"	19	28	30	450	120	1740	0.65
HPR-3	1"	25	35.5	30	450	120	1740	0.82

Hose Features

Compatible with fuels: Gasoline, Diesel, E10, B20, E55, E85.
Available in Finish Smooth.
Anti-Static.
High NBR Rubber Content: 42% for both tube & cover of black hose; 44% of
color hose.
Clear Printings on Hose.
Transparent & Non-transparent package is Available.
PASSION ® Brand or Client’s Customized Brand.
Available in Bulk or in Assemblies.
Temperature Resist: -40℃ to +80℃.
Colors Available: black, blue, green, red and yellow.

Hose Benefits

Flexible, Soft, Light-Weight. Excellent Aging Resistance, Ozone Resistance. Checking Every Meter of Hose During Production, Once Unqualified Part on Hose are Found, This Part will be Cut and not Sent to Clients. Complete Test Process & Equipment . Stable Hose Quality. Smooth, Flat and Nice Appearance.

Hose Assembly

Length of Hose Assembly	4meters, 4.5meters, 6meters, 8meters......
Couplings Material	Brass chrome plated material.
Type	Rotate / Non-Rotate.
Thread	NPT, BSP, BSPT.

Package

Hose Application

More of Paishun

Paishun Sales Network

We have a wide range of global market. Our rubber hoses and hose assemblies are exported to USA, Canada, UK, Norway, Germany, Spain, Portugal, Denmark, Australia, Japan, Thailand, Sri Lanka, Vietnam, Peru, Chile, Argentina, South Africa etc, more than 90 countries all over the world.

Exhibition

PASSION FOR HOSE, PASSION FOR YOU!
