Quick Details
-
Power:
-
44kW/2200rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rhinoceros/ XINIU
-
Maximum Digging Height:
-
6220mm
-
Maximum Digging Depth:
-
3440mm
-
Max Digging Radius:
-
6140mm
-
Rated Speed:
-
2.3km/h(low), 3.7km/h(high)
-
Marketing Type:
-
Hot Product
-
Product name:
-
5 ton excavator
-
Overall dimensions(mm):
-
5830x2150x2600 mm
-
Swing speed:
-
9rpm
-
Platform back turning radius:
-
1570mm
-
Pump type:
-
plunger pump
-
Swing motor/travel motor:
-
EATON
-
hydraulic system:
-
Rexroth Load Sensing System
-
Max. grade ability:
-
35°
-
ground pressure:
-
39kPa
-
Min. rotation radius:
-
2180mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Viet Nam, Thailand, Malaysia, Australia, Kenya, Bangladesh, Ukraine
-
After-sales Service Provided:
-
Field installation, commissioning and training, Video technical support, Online support
-
Certification:
-
CE ISO
Quick Details
-
Operating Weight:
-
6900KG
-
Bucket capacity:
-
0.3cbm
-
Engine Brand:
-
YANMARengine 4TNV98T
-
Power:
-
44kW/2200rpm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Rhinoceros/ XINIU
-
Maximum Digging Height:
-
6220mm
-
Maximum Digging Depth:
-
3440mm
-
Max Digging Radius:
-
6140mm
-
Rated Speed:
-
2.3km/h(low), 3.7km/h(high)
-
Marketing Type:
-
Hot Product
-
Product name:
-
5 ton excavator
-
Overall dimensions(mm):
-
5830x2150x2600 mm
-
Swing speed:
-
9rpm
-
Platform back turning radius:
-
1570mm
-
Pump type:
-
plunger pump
-
Swing motor/travel motor:
-
EATON
-
hydraulic system:
-
Rexroth Load Sensing System
-
Max. grade ability:
-
35°
-
ground pressure:
-
39kPa
-
Min. rotation radius:
-
2180mm
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
Viet Nam, Thailand, Malaysia, Australia, Kenya, Bangladesh, Ukraine
-
After-sales Service Provided:
-
Field installation, commissioning and training, Video technical support, Online support
-
Certification:
-
CE ISO
Product Description

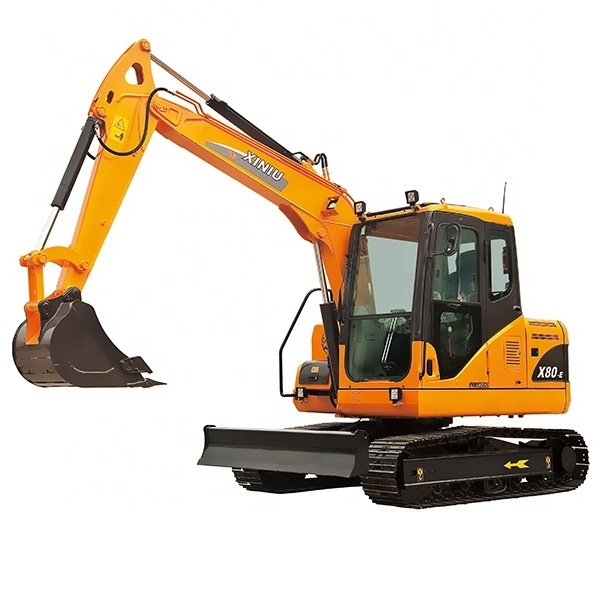

XN80E Rhinoceros 7 Ton Small crawler Excavator 5 ton excavator
7 ton operating weight, YanmarEngine, 44kw,
Rexroth main pump, USA Eaton swing motor, traveling motor, valves, USA Parker Sealing parts, Joystick, Italy Manuli hydraulic pipe, A/C cab, English monitor, Radio, USB,
0.3cbm bucket, Overall dimension: 5830x2150x2640mm.
Specification
|
SPECIFICATION
|
|
|
|
Model
|
X80-E
|
|
|
Operating Weight
|
7500kg
|
|
|
Overall dimension
|
5830x2150x2640mm
|
|
|
Cab dimension
|
1300x950x1520mm
|
|
|
Bucket capacity
|
0.3cbm
|
|
|
Engine type
|
YANMAR(4TNV94L)
|
|
|
Rated power/speed
|
36.2kw/2100rpm
|
|
|
No. of cylinders/type
|
4 cylinders in line
|
|
|
Voltage of start motor
|
12V
|
|
|
Starting type
|
ELECTRIC
|
|
|
Hydraulic system pressure
|
22MPa
|
|
|
Hydraulic system flow
|
148L/Min
|
|
|
Valve
|
USA EATON
|
|
|
Swing motor
|
USA EATON
|
|
|
Max swing speed
|
9r/min
|
|
|
Travelling motor
|
USA EATON
|
|
|
Max speed
|
3.7km/h
|
|
|
Sealing parts
|
USA PARKER
|
|
|
Gear
|
high 3.7km/h, low 2.3/km/h
|
|
|
Bucket dimension(length*width*depth)
|
700*660*460
|
|
|
No. of teeth in the bucket
|
5
|
|
|
Bucket Digging Force
|
58Kn
|
|
|
Arm Digging Force
|
42Kn
|
|
|
Grade ability
|
35 Degree
|
|
|
Working fuel consumption
|
7.08L/h
|
|
|
Diesel tank capacity
|
167L
|
|
|
Engine oil tank capacity)
|
11L
|
|
|
Hydraulic oil tank capacity
|
125L
|
|
|
Cooling fluid tank capacity
|
20L
|
|
|
Length for loading
|
5830mm
|
|
|
Height for loading
|
2640mm
|
|
|
Width for loading
|
2150mm
|
|
|
Boom length
|
3300mm
|
|
|
Arm length
|
1750mm
|
|
|
Radius,Swing Center to Rear End
|
1570mm
|
|
|
Bulldozer height
|
335mm
|
|
|
Bulldozer Dimension
|
2024*345mm
|
|
|
No. Of track shoe
|
2*43
|
|
|
Track length on the ground
|
2275mm
|
|
|
Length of two tracks
|
1350mm
|
|
|
Track shoe width
|
400mm
|
|
|
Steering width
|
2000mm
|
|
|
Max Digging Height
|
6320mm
|
|
|
Max Dumping Height
|
4440mm
|
|
|
Max Digging Depth
|
3840mm
|
|
|
Max Digging Radius
|
6240mm
|
|
|
Standard machine with A/C
|
AC
|
|
|
Passed certificates
|
CE
|
|
|
accessories
|
narrow bucket, grader, hammer, auger, quick hitch
|
|
Details Images
Our company
Certifications
Recommend Products
FAQ
What is the machIne advantage? Why I choose from you ?
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,
Each machine is carefully tested before send to customer.
Warranty time for 1 year or 1200 working hours.
How many units can be put in container ?
A: 2 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
A: Adopting world famous brand engine and parts, ensure long life service, all the structure parts are produced and checked by our engineers,
Each machine is carefully tested before send to customer.
Warranty time for 1 year or 1200 working hours.
How many units can be put in container ?
A: 2 units can be in a 40HQ container.
None packing,and will fixed with wire ropes.
The warranty of the machine and how will you carry out the service?
A: Warranty period: 1 years or1200 working hours manufacturers warranty whichever comes first. One line service is provided 24 hours every day, there are technicians ready to serve for you, they are well trained, they can be assigned to your site and serve for you.
Spare parts supply:
A: Spare parts is available all the time.
A spare parts kit for free will be sent with each machine, which can be used for 1 year.
There are also a spare parts list recommended for 2 years, you can choose and order some parts sent with machine in advance or we recommend the list for you.
