Quick Details
-
Warranty:
-
12 months
-
Brand Name:
-
Zidong Pump
-
Model Number:
-
8/6E-ZH
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
customized
-
Cable Length:
-
customized
-
Outlet Size:
-
10inch
-
Power:
-
150 KW
-
motor:
-
customized
-
Product name:
-

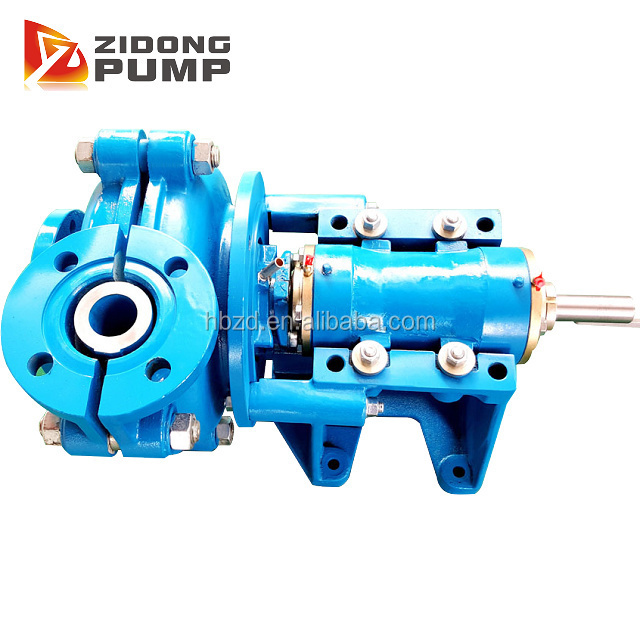

Zidong Pump 8/6E-ZH slurry pump
-
Theory:
-
Centrifugal Water Pump
-
Usage:
-
Industrial
-
Material:
-
27% Chrome alloy
-
Standard or Nonstandard:
-
Standard
-
Color:
-
Customized
-
Certificate:
-
ISO9001, CE
Quick Details
-
Application:
-
Machining, Marine, Metal and Equipment Manufacturers, Mining industry, metallurgy, power plant, coal, copper mine
-
Pressure:
-
High Pressure
-
Voltage:
-
220V 380V 480V
-
Warranty:
-
12 months
-
Brand Name:
-
Zidong Pump
-
Model Number:
-
8/6E-ZH
-
Place of Origin:
-
Hebei, China
-
Horsepower:
-
customized
-
Cable Length:
-
customized
-
Outlet Size:
-
10inch
-
Power:
-
150 KW
-
motor:
-
customized
-
Product name:
-
Zidong Pump 8/6E-ZH slurry pump
-
Theory:
-
Centrifugal Water Pump
-
Usage:
-
Industrial
-
Material:
-
27% Chrome alloy
-
Standard or Nonstandard:
-
Standard
-
Color:
-
Customized
-
Certificate:
-
ISO9001, CE
Products Description
|
Product name
|
ZH Series slurry pumps
|
|
Size
|
1~18 inch
|
|
Capacity Range
|
12~5400 m
3
/h
|
|
Head Range
|
5~68 m
|
|
Speed
|
200~3800 rpm
|
|
Motor power
|
15~1200 kw
|
|
Material
|
wear resistant high chrome alloy
|
Overview
ZH High Chrome Alloy Slurry Pumps are single-stage, single-suction and cantilevered, double casing, horizontal, centrifugal ,heavy duty durable design.Parts in contacting with the medium are made of latest wear-resistance 27% chrome alloy white iron with hardness 62HRC over,which has an highly abrasive for maximum resistance to strong abrasive, coarse particle.They are widely used for mining, coal, metallurgical, power, building material and other industrial departments. This series of pump is suitable for various liquids performance, which is the first select product for handling mine mill slurry and tailing slurry.Basing on medium condition can choose different materials as A05, A07, A49 etc.
Details Images
Pump Structure
A centrifugal heavy duty alloy liner mine tailing slurry pump is mainly composed of 3 parts:
1.The anti-abrasion wet parts: (Impeller,Throatbush, Volute liner, FPL insert) Thickened wet components for extended wear life.
2. Shaft seal parts: Sealing flexibility choice of gland, Expeller seal or mechanical seals.
3. Bearing assembly parts
1.The anti-abrasion wet parts: (Impeller,Throatbush, Volute liner, FPL insert) Thickened wet components for extended wear life.
2. Shaft seal parts: Sealing flexibility choice of gland, Expeller seal or mechanical seals.
3. Bearing assembly parts
Zidong slurry pump products and pump accessories details display
1. 3D design and OEM pump &parts service
2. Reliable raw material of wet parts in super service life
3. High-quality bearing components ensure long-term stable operation
4. Strict QC system and experienced assembling engineer to ensure a high pass rate
Certifications
Functions & Applications
The ZH centrifugal heavy duty alloy liner mine tailing slurry pump is the pump for highly abrasive/density slurries in processes from cyclone feed to regrind, mill discharge, flotation, mine drainage and tailing in minerals plants plus other industrial applications, Sometimes, it could also be used in dredging of settling lagoons and pumping of drilling mud etc.
|
• Mineral processing
|
• Ash handling
|
• Cyclone feeds
|
• Chemical slurry service
|
• Coal preparation
|
|
• Effluent handling
|
• Wet crushers
|
• Tailings
|
•Aggregate processing
|
• Waste sludge
|
|
• SAG mill discharge
|
• Rod mill discharge
|
• Ball mill discharge
|
• Secondary grinding
|
• Phosphoric acid
|
|
• Pulp and paper
|
• Food processing
|
• Cracking operations
|
• Fine primary mill grinding
|
• Industrial processing
|
Packing & Shipping
Zidong uses the steel base + protective film + fumigation-free wooden box + steel belt to pack the pump, to ensure the safety of the pumps in shipment. We also design special packing for over size part to solve container loading problems.
