Jaw crusher is the typical crusher among crusher, which can crush a variety of stone. It falls into two types: that produces coarse gravel and that produces sand.The former is used mainly to break big stones into smaller one, and the latter fine gravel.
Jaw Crusher, also known is a crusher composed of two jaw plates, a moving jaw and a stationary jaw, which simulates the movement of two jaws of an animal to complete the crushing operation of the material. Simple structure, easy manufacture and reliable work.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Jintai
-
Dimension(L*W*H):
-
1100x980x960
-
Weight:
-
3000 KG
-
Marketing Type:
-
New Product
-
Product name:
-
Jaw Crusher Machine
-
After-sales Service Provided:
-
Engineers
-
Color:
-
White
-
Raw material:
-
Stones Rocks Ores
-
Max feeding size:
-
200-1020mm
-
Function:
-
Hard Stone Crushing
-
Advantage:
-
Longer Service Life
-
Spare parts supply:
-
Paid
-
Key words:
-
CE Certification Stone Crushers
-
Price:
-
Negotiatable
Quick Details
-
Application:
-
mining used
-
Capacity(t/h):
-
1-800t/h
-
Place of Origin:
-
HEN
-
Brand Name:
-
Jintai
-
Dimension(L*W*H):
-
1100x980x960
-
Weight:
-
3000 KG
-
Marketing Type:
-
New Product
-
Product name:
-
Jaw Crusher Machine
-
After-sales Service Provided:
-
Engineers
-
Color:
-
White
-
Raw material:
-
Stones Rocks Ores
-
Max feeding size:
-
200-1020mm
-
Function:
-
Hard Stone Crushing
-
Advantage:
-
Longer Service Life
-
Spare parts supply:
-
Paid
-
Key words:
-
CE Certification Stone Crushers
-
Price:
-
Negotiatable
Products Description

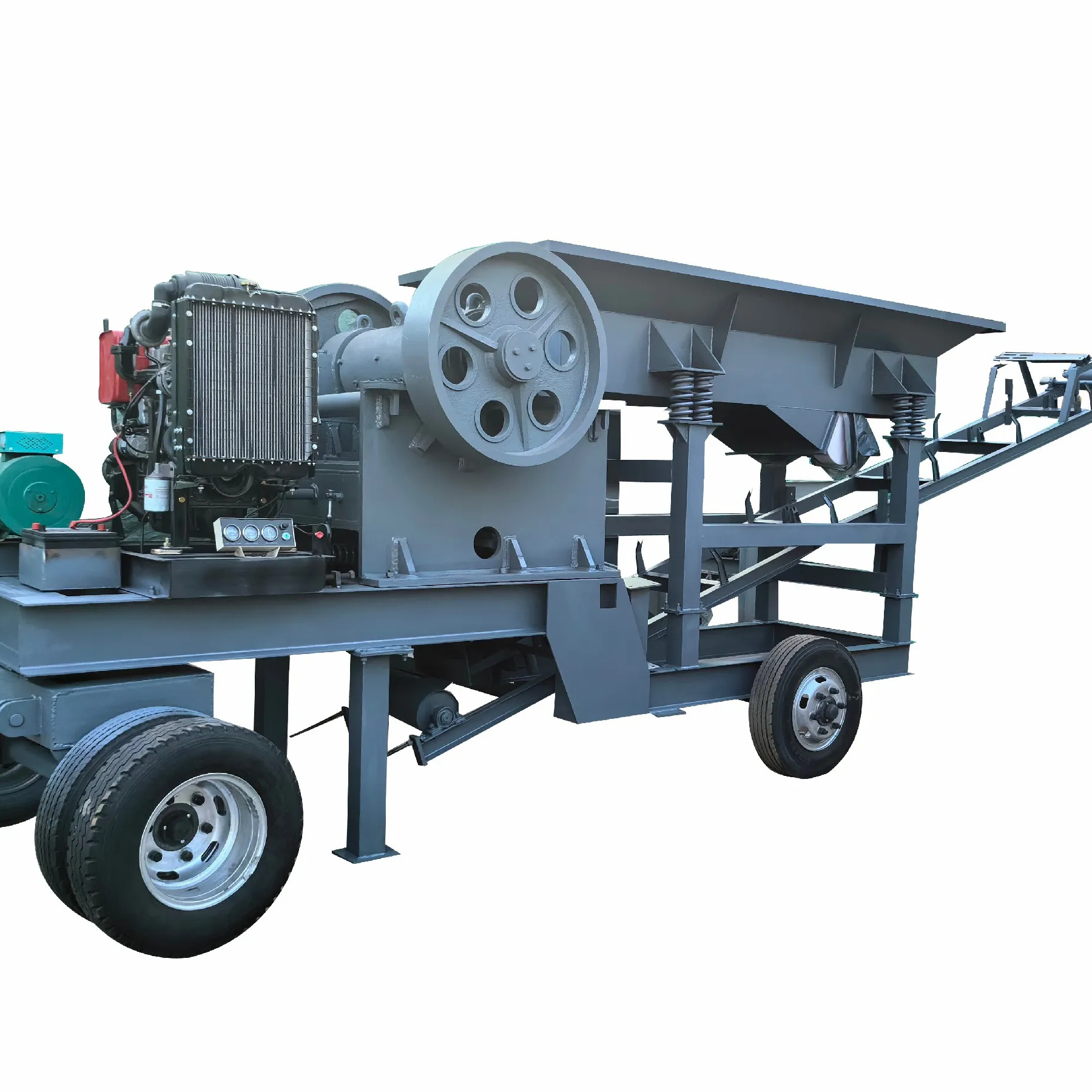

New design mining equipment 50 tons per hour mobile combination diesel or motor jaw crusher
Product Details
Product Feature
Product Application
Product parameter
|
Model
|
Feed partical size(mm)
|
discharge partical size(mm)
|
Capacity(t/h)
|
Motor power(kw)
|
Weight(t)
|
Dimension(mm)
|
|
PE-150×250
|
125
|
10-40
|
2-7
|
5.5
|
0.5
|
720×660×850
|
|
PE-200×300
|
180
|
15-50
|
3-9
|
7.5
|
0.8
|
910×750×990
|
|
PE-220×350
|
180
|
18-70
|
10
|
11
|
1.1
|
1000×870×990
|
|
PE-250×400
|
210
|
20-60
|
15-20
|
15
|
2
|
1300×1090×1270
|
|
PE-400×600
|
340
|
40-100
|
40-50
|
30
|
6
|
1730×1730×1630
|
|
PE-500×750
|
425
|
50-100
|
60-80
|
55
|
9.5
|
1980×2080×1870
|
|
PE-600×900
|
500
|
65-160
|
100
|
75
|
16.5
|
2190×2206×2300
|
|
PE-750×1060
|
630
|
80-140
|
130-150
|
90
|
25
|
2660×2430×2800
|
|
PE-150×750
|
125
|
18-48
|
15
|
15
|
2.7
|
1200×1530×1060
|
|
PE-250×750
|
210
|
25-60
|
20-30
|
22
|
5
|
1380×1750×1540
|
|
PE-250×1000
|
210
|
25-60
|
40
|
30
|
6
|
1560×1950×1390
|
|
PE-250×1200
|
210
|
25-60
|
50
|
37
|
7.5
|
2140×1660×1500
|
Package and Shipment
We will make the products according your requirement ,such as the model, and packing the jmobile diesel engine jaw crusher in wooden package or standard container. Unique workers make sure all equipment are steady and fixed before close the door of the container, there will be no damage during transportation and shipment.As for the shipment,we will choose our sea port to transfer the jaw crusher machine as practice.
