Quick Details
-
Rated Voltage:
-
38-138kV
-
Tensile Strength:
-
6.6-12.5kN
-
Color:
-
Red / Grey
-
Standard:
-
IEC 61109
-
Material of shed:
-
Composite/ polymer/silicon rubber
-
Core:
-
Fiber glass rod
-
End fitting:
-
Galvanized carton steel
-
Section length:
-
630-1510mm
-
Arc distance:
-
380-1250mm
-
Leakage distnce:
-
1330-3150mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Pomanique
-
Model Number:
-
CDL series
-
Rated Voltage:
-
38-138kV
-
Tensile Strength:
-
6.6-12.5kN
-
Color:
-
Red / Grey
-
Standard:
-
IEC 61109
-
Material of shed:
-
Composite/ polymer/silicon rubber
-
Core:
-
Fiber glass rod
-
End fitting:
-
Galvanized carton steel
-
Section length:
-
630-1510mm
-
Arc distance:
-
380-1250mm
-
Leakage distnce:
-
1330-3150mm
Products Description
|
Product name
|

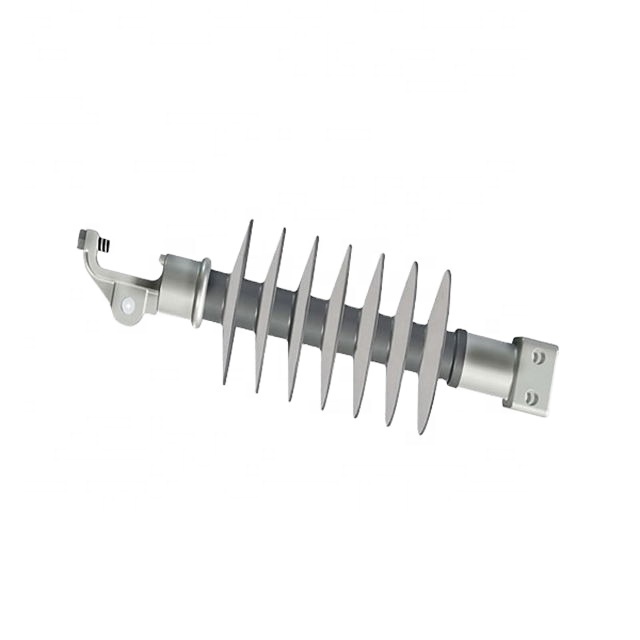

Line Post Insulator
|
|
|
|
|||
|
Material
|
silicon rubber/ECR glass fiber reinforced resin rods
|
|
|
|
|||
|
Function
|
High Voltage Power Line Service
|
|
|
|
|||
|
Package
|
Cartons
|
|
|
|
|||
Product Paramenters
|
Type
|
CDL-38
|
CDL-69
|
CDL-115
|
CDL-138
|
|
Rated Voltage
|
38kV
|
69kV
|
115kV
|
138kV
|
|
Specified Mechanical Load
|
12.5kN
|
11kN
|
9.5kN
|
6.6kN
|
|
Section Length B
|
630mm
|
860mm
|
1115mm
|
1510mm
|
|
Dry Arcing Distance A
|
380mm
|
556mm
|
848mm
|
1250mm
|
|
Leakage Distance
|
1330mm
|
1420mm
|
2130mm
|
3150mm
|
|
BIL
|
260kV
|
340kV
|
620kV
|
760kV
|
|
Power Frequency Wet Flashover
|
130kV
|
195kV
|
295kV
|
430kV
|
|
Number of Sheds
|
7
|
8
|
12
|
18
|
Details Images
Applications
-Substation post insulators
-Crossarm insulators
-Wall bushing
Quality and Certifications
Pomanique use ISO9001 system and ISO14001 management system since 1995.All composite insulators pass the KEMA 5000 hour ageing test in 2003.According to IEC61952.
