Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SURFON
-
Dimension(L*W*H):
-
1940*895*1080(mm)
-
Weight:
-
100 KG
-
After sales Service Provided:
-
Engineers available to service machinery overseas
-
Shrink film:
-
pof, pvc
-
Usage:
-
packing
-
Keyword:
-
bottle thermal plastic film
-
After Warranty Service:
-
Video technical support
-
Efficient Sealing Size:
-
L530*W430mm
Quick Details
-
Packaging Type:
-
Cartons
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SURFON
-
Dimension(L*W*H):
-
1940*895*1080(mm)
-
Weight:
-
100 KG
-
After sales Service Provided:
-
Engineers available to service machinery overseas
-
Shrink film:
-
pof, pvc
-
Usage:
-
packing
-
Keyword:
-
bottle thermal plastic film
-
After Warranty Service:
-
Video technical support
-
Efficient Sealing Size:
-
L530*W430mm
|
Model |
SF-20LG |
SF-4525 |
|
Power |
1 kw |
9kw |
|
Power Supply |
AC220V 1/3PH 50/60Hz |
AC220V/380 3PH 50/60Hz |
|
Max. Packing Size L×W×H |
L+H ≤ 530mm W+H ≤ 430mm H ≤ 200mm |
/ |
|
Tunnel Size L×W×H |
/ |
1000×450×250mm |
|
Table Height |
750±50 mm |
850±50 mm |
|
Packing Speed |
0-15m/min. |
0-15m/min |
|
Max. Loading Weight |
25kgs |
|
|
Shrink Film |
POF |
POF |
|
Machine Size L×W×H |
1730× 790× 980 mm |
1300×720×1500mm |
|
Package Size L×W×H |
1780×840×1130mm |
1580×770×1105mm |
|
G./N. Weight |
155/125kgs |
215/234kgs |

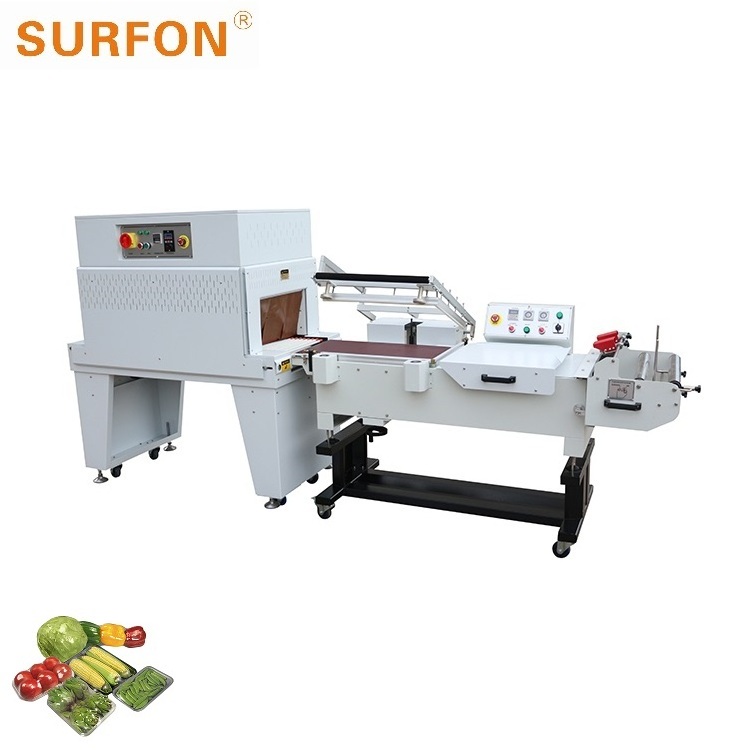

- This machine is made of shrink tunnel and sealing machine. Adopt L bar sealing, then automatically transit to the shrink chamber and finish the shrinking;
- Anti-stick high-temperature alloys L type sealing knife which can seal neatly, without cracking, coking and smoking; The sealing blade with Teflon non-stick coating layer makeshift non-sticking.
- It is easy to adjust the conveyor height by the hand wheel;
- The whole sealing functio n of SF-20LG/B is a utomatically completed by cylinder which decreases labor intensity and increases working efficiency;
- With emergency stop device in case of emergency situations can immediately stop the machine running;
- Imported electrical components assure stable performance;
- Stainless steel heating elements makes warming-up fast. Large power fan motor assures big wind volume and air transported uniform. According to products’ sizes and output, you can adjust conveyor speed and chamber temperature to achieve optimal contraction effect;
- Using solid roller conveyor, external anti-high temperature silicone tube can endure heavier objects and rollers will become deformed;
- Suitable for PVC, POF, PET film sealing wrapping.
|
Sealer |
Brand |
Country |
|
Gear Motor |
GPG |
Taiwan |
|
Intermediate Relay |
Siemens |
Germany |
|
Temperature Controller |
Autonics |
Korea |
|
Time Relay |
Omron |
Japan |
|
Switching Power Supply |
Schneider |
France |
|
Overload Relay |
Schneider |
France |
|
AC Contactor |
Schneider |
France |
|
Air Spring |
Takigen |
Japan |
|
Shrink Tunnel |
Brand |
Country |
|
Gear Motor |
OTG |
Shanghai |
|
Circulation Motor |
SURFON |
Taiwan |
|
Intermediate Relay |
Siemens |
Germany |
|
Temperature Controller |
Autonics |
Korea |
|
Switching Power Supply |
Schneider |
France |
|
Overload Relay |
Schneider |
France |
|
AC Contractor |
Schneider |
France |
|
All Switches |
Siemens |
Germany |
|
Video Link |
Product |
|
https://youtu.be/a8myi_Ffc2I |
Book |
|
https://youtu.be/ls_dige0UME |
Small boxes |
|
https://youtu.be/jfYAmAoVINM |
Cigarette case and boxes |
|
https://youtu.be/hmQfYqZa1VI |
Laundry liquid |
|
https://youtu.be/6wqKY4bH0zI |
Change the heating elements |
|
https://youtu.be/0phldgXk9f8 |
Operating e video 1 |
|
https://youtu.be/npKAANhslLs |
Operating e video 2 |
|
https://youtu.be/bUT3Tqr2zFo |
Install the film |
|
https://youtu.be/0phldgXk9f8 |
Install the film |
|
http://youtu.be/PqhPUwEan-E |
Dove chocolate with U type conveyor |
|
https://youtu.be/Wvp_Lmdv-50 |
Dove chocolate with U type conveyor and basket |
|
https://youtu.be/Qt1IRCzb1cc |
New York 5x5 Liquid Bottles |
|
https://youtu.be/8WNjqNnNEic |
New York 4x25 Liquid Bottles |
|
https://youtu.be/HOcRCGp2UVA |
New York 5x1 Liquid Bottles |
|
https://youtu.be/ZwHKgdnftZc |
New York 5x1 Glass Bottles |
|
https://youtu.be/WU5M3V1qhR4 |
New York 5x1 plastic bottles |
|
https://youtu.be/RiOvpK7kFqw |
Italy board with bottom |
|
https://youtu.be/1s_Habh8Pc0 |
Italy board with buttom |
|
https://youtu.be/8CSXIcGcJ4I |
Russia board with bottom |
|
https://youtu.be/cntPET7s4Lc |
Russia board with feet |
