Quick Details
-
Color:
-
ALL COLOR
-
Panel Size:
-
., .
-
Place of Origin:
-
Taiwan, China
-
Model Number:
-
ACS30T-UXG-CX
-
use:
-
other
-
Pixel Pitch:
-
., .
-
Specification:
-
other
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Brand Name:
-
Super Brite/ All Brite
-
Color:
-
ALL COLOR
-
Panel Size:
-
., .
-
Place of Origin:
-
Taiwan, China
-
Model Number:
-
ACS30T-UXG-CX
-
use:
-
other
-
Pixel Pitch:
-
., .
-
Specification:
-
other
Specification

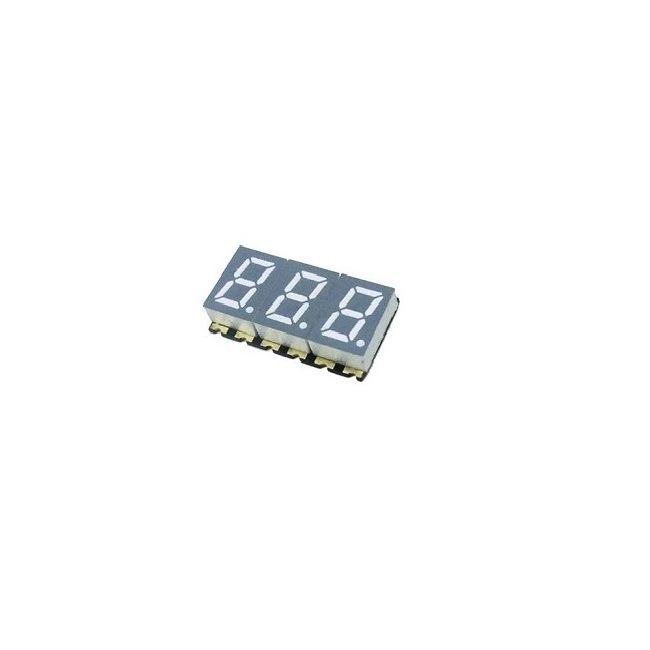

0.3 inch Triple Digit SMT LED Display
ACS30T-UXG-CX
Product Description
Mechanical Dimensions
Features
•
0.30 inch (7.62mm) digit height
•
Qualified according to JEDEC moisture sensitivity Level 2a
• RoHS compliant
• Low power consumption
• Easy mounting on P.C. board
Absolute Maximum Rating
|
Parameter
|
Symbol
|
Rating
|
|
Unit
|
|
|
|
|
2
|
M / T / A / V / L / U
|
|
|
|
Power Dissipation Per Dice
|
PAD
|
114
|
70
|
mW
|
|
|
Derating Liner from 25℃ per Dice
|
-
|
0.4
|
0.33
|
mA/℃
|
|
|
Continuous Forward Current Per Dice
|
IAF
|
30
|
25
|
mA
|
|
|
Peak Current Per Dice(duty cycle 1/10,1KHz)
|
IPF
|
100
|
90
|
mA
|
|
|
Reverse Voltage Per Dice
|
VR
|
5
|
5
|
V
|
|
|
Electrostatic discharge(HBM)
|
ESD
|
1000
|
/
|
V
|
|
|
Operating Temp.
|
Topr
|
-40 ~ +105
|
|
℃
|
|
|
Storage Temp.
|
Tstg
|
-40 ~ +105
|
|
℃
|
|
Device Selection Guide
Reel Dimension (Unit: mm )
