Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Smartdoor
-
Model Number:
-
BW-PY
-
Voltage:
-
380V/110V/default 220v
-
Power:
-
370w/550w/750w/1200w
-
Torque:
-
18Nm/custom
-
Rotate Speed:
-
1400r/min/custom
-
Open(close) speed:
-
Soft start, slow stop, adjustable speed
-
Rotate speed:
-
1400r/min/custom
-
Rebound resistance::
-
Yes
-
N.W.:
-
13kg-18kg
-
Product Name:
-

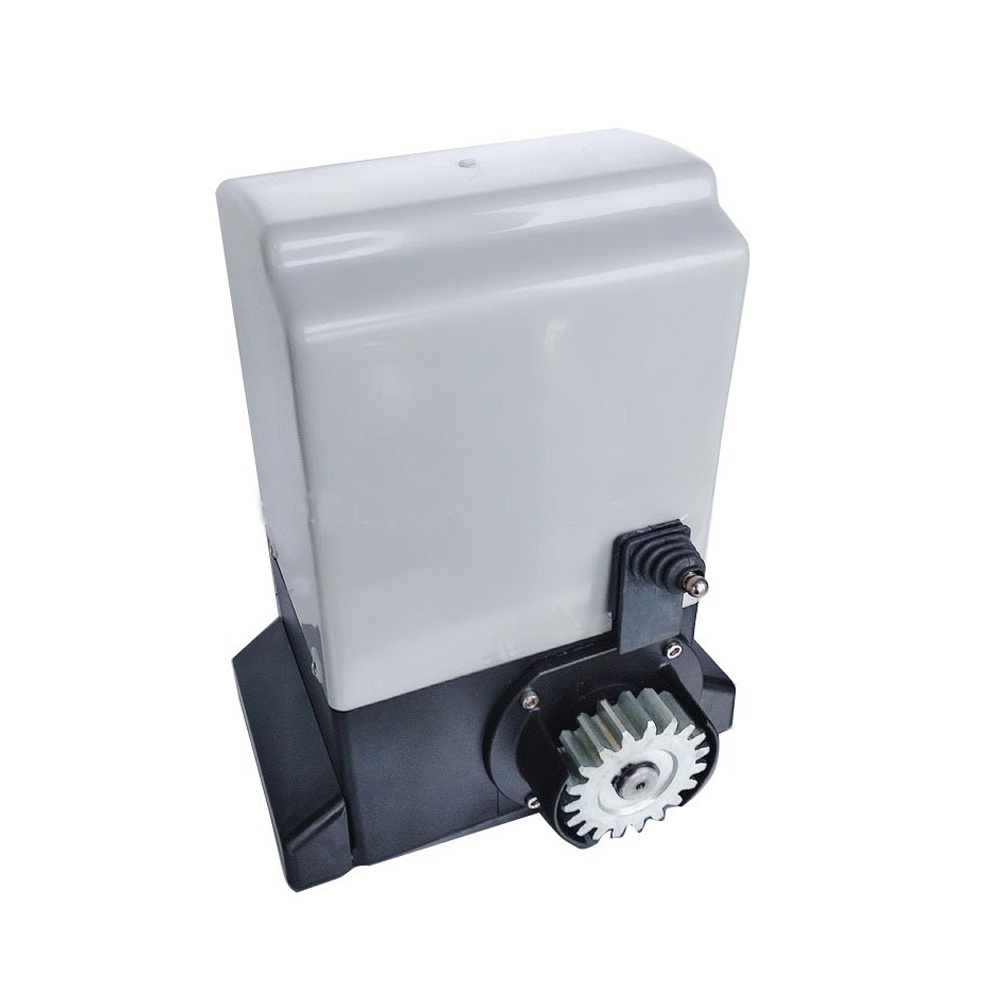

Remote Control Sliding Gate Operator
-
Usage:
-
automatic swing gate operator
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Smartdoor
-
Model Number:
-
BW-PY
-
Voltage:
-
380V/110V/default 220v
-
Power:
-
370w/550w/750w/1200w
-
Torque:
-
18Nm/custom
-
Rotate Speed:
-
1400r/min/custom
-
Open(close) speed:
-
Soft start, slow stop, adjustable speed
-
Rotate speed:
-
1400r/min/custom
-
Rebound resistance::
-
Yes
-
N.W.:
-
13kg-18kg
-
Product Name:
-
Remote Control Sliding Gate Operator
-
Usage:
-
automatic swing gate operator
Gate opener
|
Model
|
BW-PY
|
|
|
||
|
Application
|
smartdoor
|
|
|
||
|
Power Supply
|
220V/110V
|
|
|
||
|
Protection Class
|
IP44
|
|
|
||
|
Special Function
|
1.Soft start, slow stop.
2.Auto-shuttering back the door against touching.
3.Self-learning traveling distance.
4.Infrared automatic testing
5.Bluetooth control the sliding door motor with smartphone.
6.Wifi/3G/4G control,if installing Bo Hui remote video camera.
|
|
|
||
|
Model
|
JY-370
|
JY-550
|
JY-750
|
|
Power
|
370W
|
550W
|
750W
|
|
Power Supply
|
AC220V 50Hz
|
AC220V 50Hz
|
AC220V 50Hz
|
|
Output Torque
|
22N.m
|
27N.m
|
35N.m
|
|
Max Gate Weight
|
800KG
|
1000KG
|
1500KG
|
|
Motor Speed
|
1400r/min
|
1400r/min
|
1400r/min
|
|
Gate Speed
|
12m/min
|
12m/min
|
12m/min
|
|
Limit Switch
|
Spring/Magnetic(NC/NO)
|
Spring/Magnetic(NC/NO)
|
Spring/Magnetic(NC/NO)
|
|
Noise
|
<=56dB
|
<=56dB
|
<=56dB
|
|
Temperature
|
-45℃~+65℃
|
-45℃~+65℃
|
-45℃~+65℃
|
|
Protection Class
|
IP44
|
IP44
|
IP44
|
|
Certification
|
CCC,CE
|
CCC,CE
|
CCC,CE
|
|
App
|
smartdoor
|
smartdoor
|
smartdoor
|
Inner Packing: Paper box packing with foam, or as to customer's advise.
Outer Packing: Strong carton
Delivery:
3-5 days for sample order; 5-12 days for bulk order.
Shipping way: DHL,Fedex,UPS, TNT, EMS, By sea or by air, according to customer's advise.
