Quick Details
-
Rated Power:
-
500w
-
Dimension(L*W*H):
-
4000x2200x1500mm
-
Weight (KG):
-
1000 KG
-
Year:
-
2023
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
1 year
-
Cutting mode:
-
plasma cutting + flame cutting
-
Effective working size:
-
1500x3000mm
-
Cutting thickness:
-
0.1 to 25mm
-
Supporting software:
-
StarCAM, FastCAM
-
Operating language:
-
English, French, Russian, etc
-
Control system:
-
Starfire
-
Cutting speed:
-
up to 10000mm / minute
-
Motor:
-
Stepper motor
-
Cutting material:
-
carbon steel, stainless steel, galvanized steel, aluminium, etc
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
KNCAM
-
Voltage:
-
220V±10V
-
Rated Power:
-
500w
-
Dimension(L*W*H):
-
4000x2200x1500mm
-
Weight (KG):
-
1000 KG
-
Year:
-
2023
-
Marketing Type:
-
New Product 2023
-
Warranty of core components:
-
1 year
-
Cutting mode:
-
plasma cutting + flame cutting
-
Effective working size:
-
1500x3000mm
-
Cutting thickness:
-
0.1 to 25mm
-
Supporting software:
-
StarCAM, FastCAM
-
Operating language:
-
English, French, Russian, etc
-
Control system:
-
Starfire
-
Cutting speed:
-
up to 10000mm / minute
-
Motor:
-
Stepper motor
-
Cutting material:
-
carbon steel, stainless steel, galvanized steel, aluminium, etc

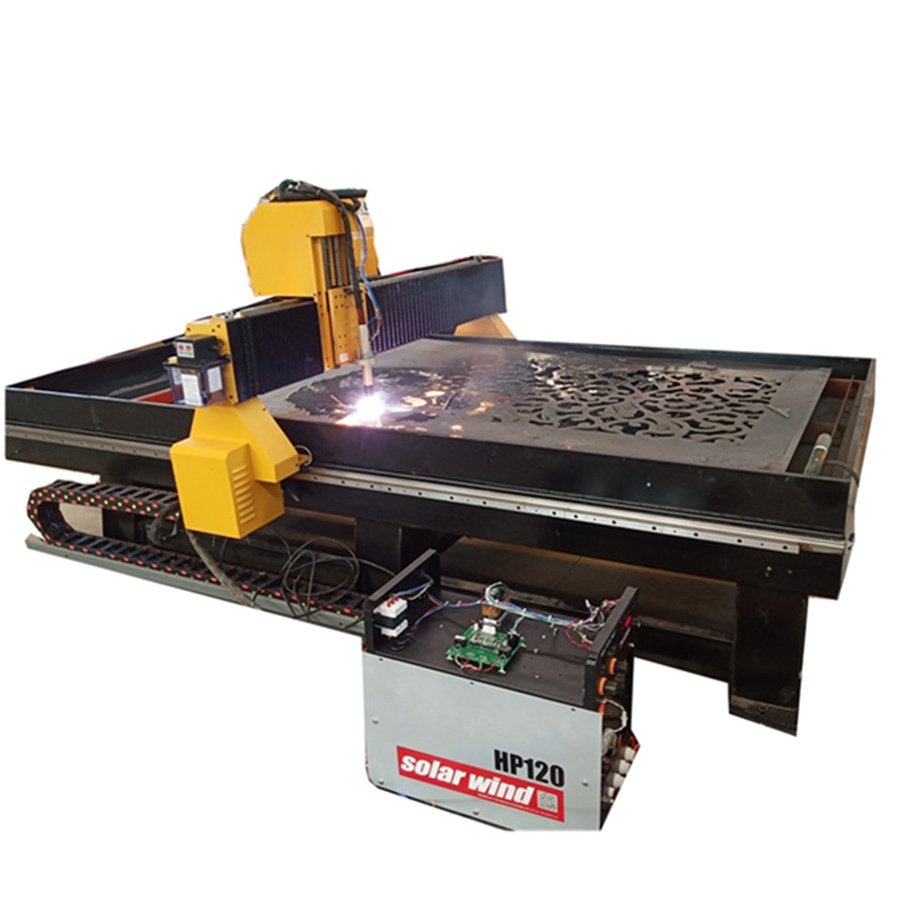

High Precision Hot Sell Plasma Table CNC Kit KNCAM Brand CUT 6-2
Machine outlook
It is a high-speed accurate plasma cutting machine, adopts integrated modular structure, making it fast and convenient to install, machine operating is steady. It is specially used for cutting thin metal plates, like stainless steel, carbon steel, aluminum and other non-ferrous metals. Th e machine is equipped with special dust-removing and cooling devices which can reduce the cutting dust and noxious gas.
It is characterized with highly automatic, easy to use, highly accurate, reliable quality , easy to maintain, etc. It is widely used for advertising industry , metal gate/door/window production, metal furniture, decoration industry, etc.
|
No |
Item |
Specification |
|
1 |
Cutting mode |
Plasma cutting |
|
2 |
Cutting material |
Stainless steel, carbon steel, aluminium, etc |
|
3 |
Cutting thickness |
0.4-6mm or customizable |
|
4 |
Max cutting range |
1500mm × 3000mm |
|
5 |
Plasma cutting speed |
up to 10,000mm/minute |
|
6 |
Accuracy of drawing line |
±0.2 mm |
|
7 |
Movement accuracy |
0.003125mm/step |
|
8 |
Vertical stroke of cutting torch |
1-50mm |
|
9 |
Machine dimensions |
4000 × 2200 × 1500mm |
|
10 |
Longitudinal lead rail of machine tool |
4000mm |
|
11 |
Transverse lead rail of machine tool |
2200mm |
|
12 |
Mode of driver |
Both side |
|
13 |
Power supply |
220V\380V±10% |
|
14 |
Frequency |
50Hz |
|
15 |
Motor power |
800W |
|
16 |
Plasma power (optional) |
80A , 100A, etc |
|
17 |
Linear repeatability |
±0.2mm/4m |
|
18 |
Control system |
F2100B |
|
19 |
Operating language |
English, French, Russian, Spanish, etc |
|
20 |
Supporting software |
Type3/Artcut6/Caxa/Auto CAD |
|
21 |
Transmission mode |
USB |
|
22 |
Environment Temperature |
-5~ 45 ℃ |
|
23 |
Relative humidity |
< 95% no condensation |
|
24 |
Environment |
Airiness, no strong impact |
|
25 |
Linear repeatability |
±0.2mm/4m |
* One year's warranty
* On-line service
* Video technical support
* Supplying spare parts
