More than 50 years of overseas HVAC project experience，we have successfully completed hundreds of large-scale HVAC projects and have a deep understanding of global HVAC projects.
- Product Details
- {{item.text}}
Quick Details
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Midea
-
Model Number:
-
V6-0222
-
COP:
-
Central Air Conditioners
-
Power (W):
-
5300-93000
-
Voltage (V):
-
380~415V
-
Maximum Airflow Rate:
-
11000-75000m³/h
-
Featured Function:
-
Optimized design for small to large buildings
-
Recommended Room Size（square feet）:
-
Central Air Conditioners
-
Product name:
-
Midea Vrf Central Air Conditioning
-
Power supply:
-
380-415V/3Ph/50Hz
-
Cooling capacity:
-
25.2KW-270KW
-
Power input:
-
5.3-93kw
-
Airflow rate:
-
11000-75000
-
Sound pressure level:
-
58-68dB(A)
-
Fan motors type:
-
DC
-
Compressor type:
-
DC inverter
-
Refrigerant type:
-
R410A
Quick Details
-
Warranty:
-
2 years
-
Type:
-
Central Air Conditioners
-
Application:
-
Hotel, Outdoor, Garage, Commercial, Household, Churches, Airports, Food Industry, Textile Factory, Food Stores, Motor Factory
-
App-Controlled:
-
Yes
-
Fixed Frequency/Variable Frequency:
-
Variable frequency
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Midea
-
Model Number:
-
V6-0222
-
COP:
-
Central Air Conditioners
-
Power (W):
-
5300-93000
-
Voltage (V):
-
380~415V
-
Maximum Airflow Rate:
-
11000-75000m³/h
-
Featured Function:
-
Optimized design for small to large buildings
-
Recommended Room Size（square feet）:
-
Central Air Conditioners
-
Product name:
-
Midea Vrf Central Air Conditioning
-
Power supply:
-
380-415V/3Ph/50Hz
-
Cooling capacity:
-
25.2KW-270KW
-
Power input:
-
5.3-93kw
-
Airflow rate:
-
11000-75000
-
Sound pressure level:
-
58-68dB(A)
-
Fan motors type:
-
DC
-
Compressor type:
-
DC inverter
-
Refrigerant type:
-
R410A

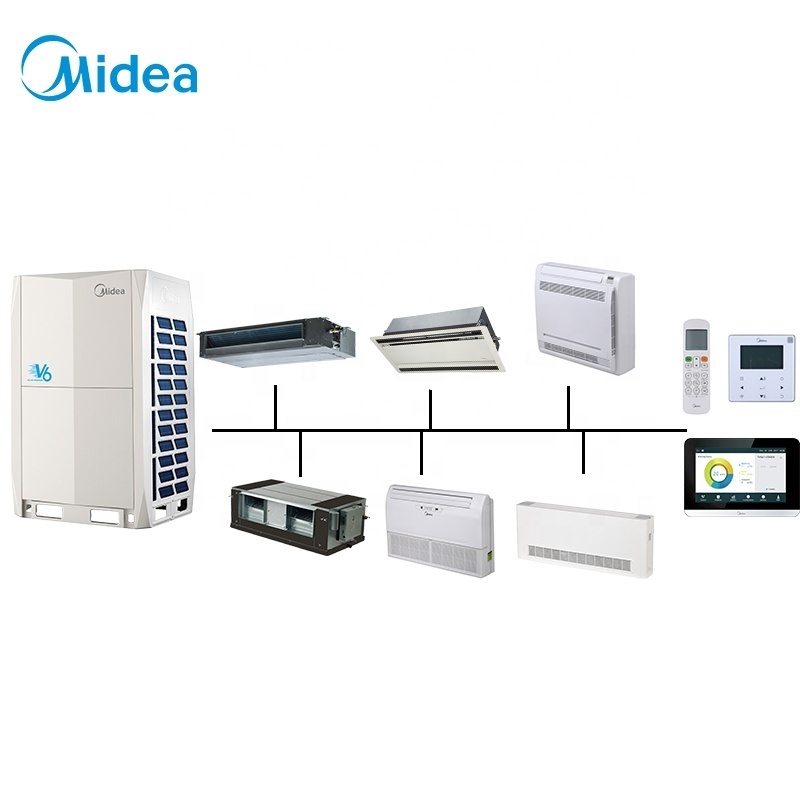

Midea VRF is a powerful system for your next HVAC project if you are looking for cost effective solutions.
Midea HVAC provides one-stop service, including VRF drawing design, model selection, installation material calculation, start up guidance etc, equipment, supplying installation material and other parts directly for your project which makes your VRF projects easier.
12v air conditioner
Why Choose Us
1.Experience
2.Professional design
Our professional design team are ready to provide you a AC plan drawing based on your architecture blueprint. in this case, you do not need to find an engineering advisor to design the HVAC layout. Save both time & money for you !
3.Professional selectoion
Based on Midea diversified commercial air conditioning system, we can select the most suitable model for your project according to the drawings.
4.Providing One-Stop Solution of HVAC System
One-stop service helps save cost and time. Generally including air conditioning Indoor units and outdoor units, control system, installing accessories(refrigerant copper pipe, UPVC pipes, rubber insulation, hoist,brackets, communication wire etc), refrigerant tools(vacuum pump, cutter,expansion tools etc), ventilation grill & diffuser etc.
5.Technical Support
HVAC commissioning service can be provided accordingly. Air conditioner project engineers can guide and supervise product installation on site.
6.After-sales service
We have Global After-Sales System with expertise service. Ensure your after-sales worry-free.
How to get a quick quotation?
Information needed by Midea Group’s management system before prepare quotation details for you.
1.Project Drawing, building layout, equipment BOQ.
solar powered air conditioner
2.Project name: building name or building type, such as xxx office project, residential house project etc.
3.Expected shipping date of this project.
metal air conditioner cover
4.Project type: tender or self-owned.
air conditioner parts
Product Line
|
Product name
|
|
Midea 350-415v DC inverter VRF System Central Heat Pump Air Conditioner
|
|
|
|||
|
Power Supply
|
|
380v-415v/3P/50(60)HZ
|
|
|
|||
|
Cooling1
|
Capacity
|
25.2KW-270KW
|
86-921KBtu/h
|
|
|||
|
|
Power input
|
5.3-93KW
|
|
|
|||
|
|
EER
|
4.75-2.85KW/KW
|
|
|
|||
|
Heating2
|
Capacity
|
25.2KW-270KW
|
86-921KBtu/h
|
|
|||
|
|
Power input
|
4.6-77KW
|
|
|
|||
|
|
COP
|
5.3-3.5KW/KW
|
|
|
|||
|
Compressors
|
Type
|
DC inverter
|
|
|
|||
|
Fan motors
|
Type
|
DC inverter
|
|
|
|||
|
|
Max.ESP
|
20 default (Pa)
|
|
|
|||
|
Refrigerant
|
Type
|
R410A
|
|
|
|||
|
Airflow rate
|
|
11000-75000m³/h
|
|
|
|||
|
|
|
58-68dB(A)
|
|
|
|||
|
Ambient temp
|
Cooling
|
-5℃ to54 ℃
|
|
|
|||
|
|
Heating
|
-25 to 24℃
|
|
|
|||
VRF V6 Series Heat Pump
Optimized design for small to large buildings
*
META Technology
* Zen Air Technology
* Doctor M Technology
* Enhanced Vapor Injection (EVI) Compressor
* High Efficiency G-Shape Heat Exchanger
* ESP up to 120Pa
* Plate Heat (PHE) Subcooling
* Precise Oil Control Technology
* Refrigerant Cooling PCB
* Multi-Functional Diagnosis Box
* Automatic Refrigerant Detecting/Charging/Recycling
* Zen Air Technology
* Doctor M Technology
* Enhanced Vapor Injection (EVI) Compressor
* High Efficiency G-Shape Heat Exchanger
* ESP up to 120Pa
* Plate Heat (PHE) Subcooling
* Precise Oil Control Technology
* Refrigerant Cooling PCB
* Multi-Functional Diagnosis Box
* Automatic Refrigerant Detecting/Charging/Recycling
1.Wide Capacity Range
second-hand air conditioners
Starting at 8HP, capacity increases in 8HP increments up to 96HP, which is the word’s largest single-system VRF capacity.
2.Wide Operation
The V6 VRF can operate stably in a wide ambient temperature range:from -5℃ to 54℃ in cooling mode andfrom-25℃ to 24℃ in heating mode.
3.Long Piping Capability
--
Total piping length :1000m
--Longest piping length-actual (equivalent):175m(200m)
--Longest piping length after branch:40/90*m
--Level difference between IDUs and ODU-ODU
above (below):90m(110m)
--Level difference between IDUs:30m
*The longest length after first branch is 40m as standard but be extended to up 90m under certain conditions.
4.High Efficiency
High Eflciency Enhanced Vapor Injection (EVI) Compressor
The enhanced vapor injection DC inverter compressor increases refrigerant circulation and improves both cooling and heating capacity.
Plate Heat Exchanger (PHE) Subcooling
Plate Heat Exchanger as a secondary intercooler boosts up refrigerant subcooling and improves 10% energy efficiency.
High Eflciency G-Type Heat Exchanger
The large capacity units use a high efficiency G-type heat exchanger which heat exchanger area is 1.5 times of the U-type heat exchanger.
7 Levels of Energy Management
For projects with temporary electricity supply restrictions, the outdoor unit supports 7 levels of energy management which can be set to output 40-100% capacity. It prevents tripping during electricity supply restriction conditions and remains system continue to operate.
5.Branch Joints
For Heat Pump Outdoor Units
Branch joints for V6 & VC Pro VRF
Note:
Connecting three outdoor units
For Heat Recovery Outdoor Units
Branch joints between outdoor unit
Note:
Connecting four outdoor units
For Indoor Units
Branch joints for indoor units
6.Certifications and Authorization
IECEE CB Scheme
Eurovent
certification
CE Certification
Nigeria PC Certification
