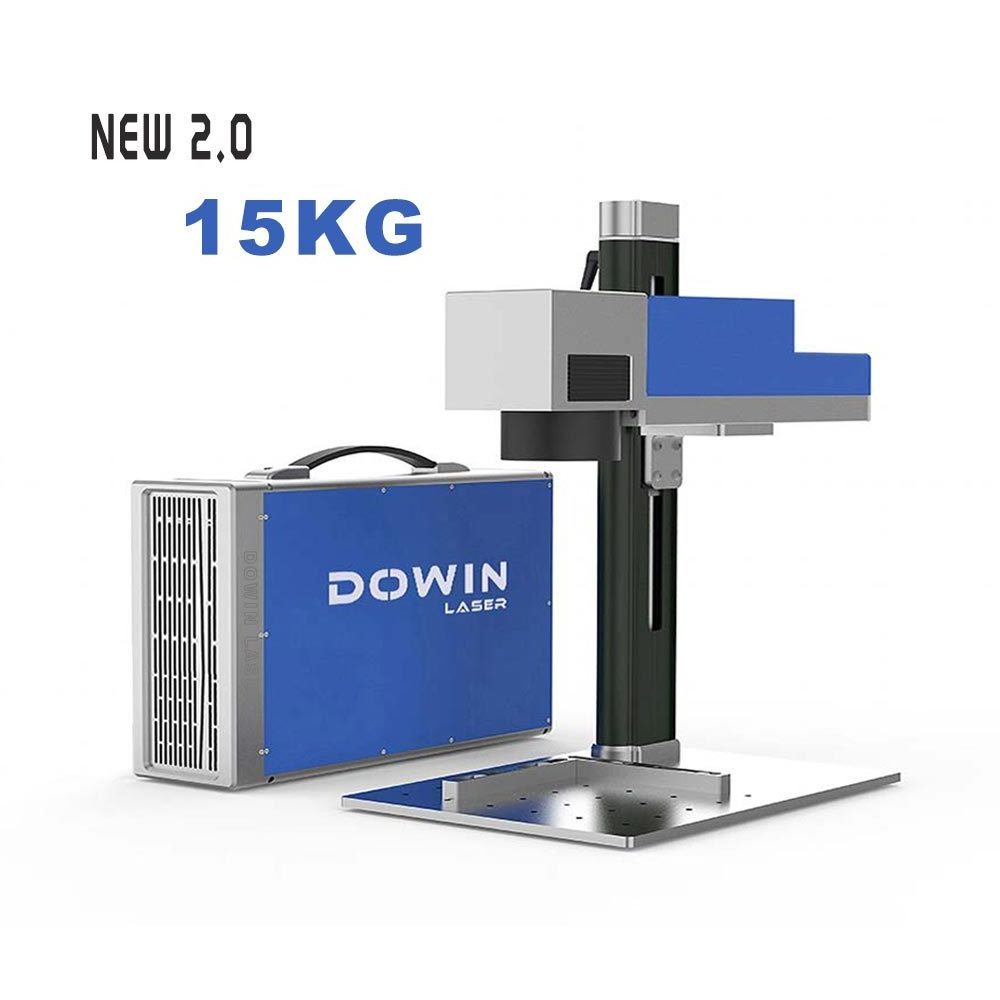

Portable mini laser marker 20W 30W 50W raycus fiber laser marking machine qr code laser engraving machine

Main accessories:

1. The machine adopt Raycus brand laser source, working life over 100,000 hours .The industry's best quality fiber opticcal manufacturer,microfiber beam 0.001mm, offer 3 years warranty.

2. The machine Galvo head use high speed galvanometer scan adopting SCANLAB technology ,digital signal,high precision and Speed.High quality laser scanning system makes the marking speed up to 7000mm/s.

3.Imported high light focusing mirror. Improve laser beam utilization from edge incident to the detector, and makes the probe on the surface of the photosensitive non-uniform illumination uniformity.

4. Handy lifting system,higher precision,easy to operate and adjust the focal length .The laser focal length can be adjusted up and down according to different kinds of marking materials.

5.Control system use famous Taiwan “ MW" power supply with stable performance.professional technology and long lifetime

6.Adopts the heat generated by the air cooling system.Ensure that the laser machine can work continuously and efficiently.

7. Alumina working platform and imported precise beeline device.Flexibility mesa have multiple screw holes,convenient and custom installation,special fixture industry platform.

8.Laser and other control switches are used to separate power supply design,to ensure the laser is protected from electromagnetic interference from other controllers during operation,making the laser's power output more stable and efficient.All the dual power supplies adopt domestic famous brands,which can ensure the long-term working power of the laser is stable.A 24 months warranty is provided.

9. Alumina protective shell ,beautiful appearance and wear-resistant.The machine internal structure is reasonable and convenient for maintenance.

10.The safety laser goggle can effectively filter the infrared and ultraviolet arcs emitted by the laser when working.The protection wavelength is 200-450nm/800-2000nm/1064nm (blue-violet blue-light near-infrared mixed white light) to protect the eyes from injury,environmental protection and safety.The surface of the lens is reinforced,anti-arc, anti-static,anti-shock,anti-scratch.

11. Optional rotary axis can be used to mark on different cylindrical,spherical objects.The stepper moto r is used for digital control,and the speed can be automatically controlled by computer,which is more convenient,simple,safe and stable.

EZCAD V2.14.10 professional laser marking software features:

1.Powerful editing function.
2.Friendly interface.
3.Easy to use.
4.Support Microsoft Windows XP,VISTA,Win7,Win10 system.
5. Support ai ,dxf,dst,plt bmp,jpg,gif,tga,png,tif and other file formats.
6.Support for TrueType fonts,single line fonts (JSF),SHX fonts,dot matrix fonts (DMF),1D bar codes and 2D bar codes. Flexible variable text processing,changing text in real time during processing,can directly read and write text files,SQL databases and Excel file.

Note: If your computer memory is less than 2G, We suggest that choose EZCAD2.14.7 software version.

It is capable to mark the metal materials and partial non-metal materials,especially suitable for some fields required more precision and higher smoothness.

The machine is widely used in the electronics separation components,integrated circuit,electrical engineering circuit,mobile communication,hardware,tools,kitchen wares,tool fittings,precise apparatus,eyeglasses and clock,computer keyboard, jewelry accessories,plastic buttons,water heating fittings,sanitary ware,PVC pipelines,medical apparatus and packing container,etc.

Note: If there is no email communication, the 1.0 and 2.0 generation portable laser marking machines will be shipped randomly to customers who place their own orders.
