Quick Details
-
Warranty:
-
1 Year, 1 Year or 1000 Hours
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Newtec
-
Model Number:
-
NPC-50GF
-
Speed:
-
1500/1800RPM
-
Weight:
-
1100KG
-
Product Name:
-
Mobile Trailer Type Generators 30KVA 50KVA 100KVA 150KVA
-
Rated Power:
-
50KW/62.5KVA
-
Engine Model:
-
4BTA3.9-G2
-
Generator Brand:
-
Stamford,Leroysomer,Marathon,Kaijieli
-
Controller:
-
Smartgen,Deepsea,Deif,Com-AP
-
Genset Type:
-
Open/Super Silent/Mobile Trailer Type
-
Options:
-
3 Wheels or 4 Wheels
-
Fuel Tank:
-
8-10 Hours Running Time
-
Keyword:
-
Mobile Trailer Type Generators 30KVA 50KVA 100KVA 150KVA
-
Certification:
-
ISO9001,CE
Quick Details
-
Rated Voltage:
-
110-480V
-
Rated Current:
-
90Amp
-
Frequency:
-
50HZ/60HZ
-
Warranty:
-
1 Year, 1 Year or 1000 Hours
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Newtec
-
Model Number:
-
NPC-50GF
-
Speed:
-
1500/1800RPM
-
Weight:
-
1100KG
-
Product Name:
-
Mobile Trailer Type Generators 30KVA 50KVA 100KVA 150KVA
-
Rated Power:
-
50KW/62.5KVA
-
Engine Model:
-
4BTA3.9-G2
-
Generator Brand:
-
Stamford,Leroysomer,Marathon,Kaijieli
-
Controller:
-
Smartgen,Deepsea,Deif,Com-AP
-
Genset Type:
-
Open/Super Silent/Mobile Trailer Type
-
Options:
-
3 Wheels or 4 Wheels
-
Fuel Tank:
-
8-10 Hours Running Time
-
Keyword:
-
Mobile Trailer Type Generators 30KVA 50KVA 100KVA 150KVA
-
Certification:
-
ISO9001,CE
PRODUCT DISPLAY
Mobile Trailer Type Generators 30KVA 50KVA 100KVA 150KVA Electric Cummins/Perkins/Doosan/Weichai Diesel Engine Generator
- Engine: Korean Doosan
- Alternator: Stamford, Leroy Somer, Marathon, China brand
- Controller system: SmartGen HGM, Deepsea, ComAp
- 8 hours base fuel tank (can customize bigger capacity)
- 24V Battery
- Automatic Transfer Switch / Manual Transfer Switch (optional)
- open type or silent type
weather-proof and galvanized canopy can be used in harsh environment.
toplift and forklift holes included for easy unloading.
- Under 100% full load testing before delivery.

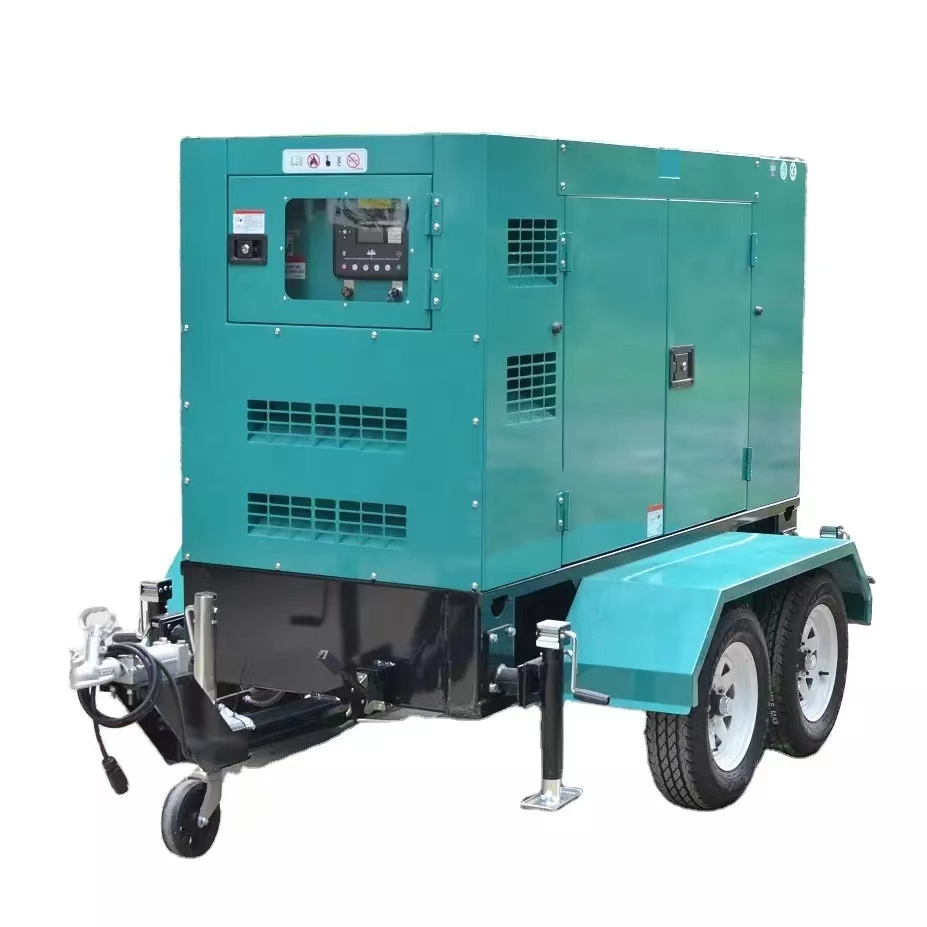

Mobile Trailer type
PRODUCT INFORMATION
| Mobile Trailer Type Generators 30KVA 50KVA 100KVA 150KVA Electric Cummins/Perkins/Doosan/Weichai Diesel Engine Generator | |
| Engine Data | |
| Prime Power | 50KW/65KVA |
| Engine Model | Cummins 4BTA3.9-G2 |
| Type | 4 Cylinder inline,4 cycle |
| Displacement | 3.9L |
| Aspiration | Turbocharged and Aftercooled |
| Bore*Stroke | 102X120mm |
| Governor Type | Electronic |
| Starting Voltage | 24V |
| Lubricant Capacity | 10.9L |
| Fuel Consumption | 0.23 L/Kw.h |
| Generator Data | |
| Model | Stamford |
| Optional | Stamford,Leroysomer,MeccAlte,Marathon |
| Excited Type | Brushless,Self-Excited |
| Power Factor | 0.8 |
| Voltage Adjust range | >5% |
| Voltage Regulation | <±1% |
| Insulation Class | H |
| Protection Class | IP23 |
| Control Panel | |
| Model | Smartgen,Comap or Deepsea |
| Protection | High/Low Voltage,High/Low Temperaturer,High/Low Frequency,Low fuel,Low Oil,Low coolant |
| Function | AMF,Synchronizing |
| Support | RS232,RS485,USB |
Why Choose Us?
MORE PRODUCT INFORMATION
COMPANY INFORMATION
Newtec Power Equipment Co.,Ltd is one of the leading and largest world-wide producers and exporters for Diesel Generator (land diesel power generator&marine diesel generating set) and Gasoline Generator set from 1kva up to 2500kva. Transformed from a state owned enterprise and founded in 2005, Newtec's Factory and generators assembling centers have more than two decades of experience in the design, research and manufacturing of diesel genset in strict compliance with ISO and CE standards. Up to being now, more than 20,000 sets of high quality generaotr set from Newtec Power have been working well in many fields including railways, oil fields, Schools, hospitals, banks, supermarkets, industries, tall buildings, sea ports and military bases etc.
OEM PARTNER INFORMATION
PROJECT INFORMATION
|
MAIN MARKET
Philippines Thailand Malaysia Kenya Mozambique South Africa Ecuador Argentina Honduras etc |
PACKING&DELIVERY INFORMATION
FAQ INFORMATION
1.Q: What is your MOQ of this item?
A:1 Set
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month
7.Q:What's the warranty time of diesel generators?
A:12 Months or 1000 working hours
