Quick Details
-
Model Number:
-

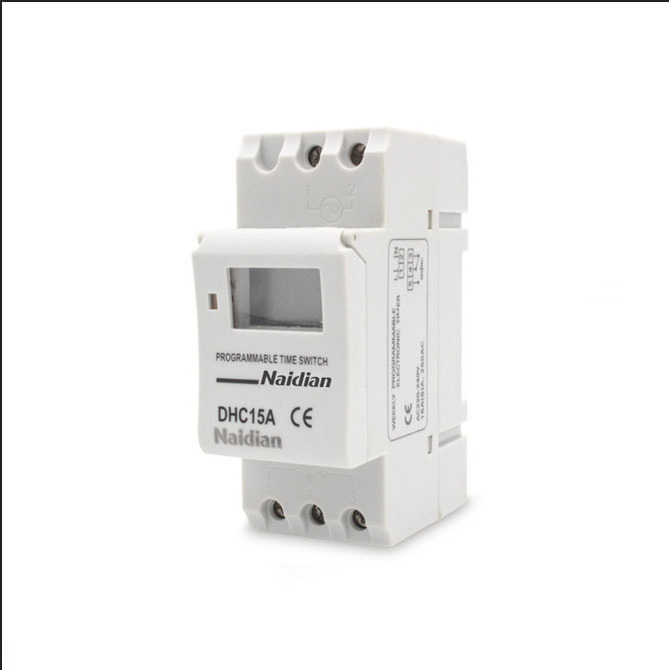

ACH15A DHC15A
-
Max. Current:
-
30A
-
Time range:
-
1 min-168H
-
MOQ:
-
10PCS
-
Payment:
-
T/T
-
Certification:
-
CE
Quick Details
-
Max. Voltage:
-
220v
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Naidian
-
Model Number:
-
ACH15A DHC15A
-
Max. Current:
-
30A
-
Time range:
-
1 min-168H
-
MOQ:
-
10PCS
-
Payment:
-
T/T
-
Certification:
-
CE
Product Description
Specification
|
Rated voltage
|
AC220V 50/60HZ (other voltage can be customized)
|
|
|
Timing error ≤1s/d (at25℃)
|
|
Contact
|
1C
|
|
Load capacity
|
16A 250VAC（ Resistance COS Ø=1）
|
|
Model Number
|
AHC15A/DHC15A
|
|
On/off operation
|
8/16 ON/OFF
|
|
Minimum interval
|
1 minute
|
|
Service life
|
Mechanically: 107, Electrically: 105
|
|
Ambient temperature
|
-10～55℃
|
|
Battery backup
|
3 years
|
|
Power consumption
|
7.5VA max
|
Dimension
OPERATING INSTRUCTION:
1.First time use this timer switch, please input AC voltage and let battery recharge .after then press reset key.
2.At first time, the timer switch is in 24h mode .If you want change to 12h mode please press on “ ”
key 5 sec .and LCD will display AM If you want rechang to 24h mode ,and press on “ ” key 5 sec to return.
3.Programming :
Step Key Programming
1 Press
P
Setting 1 ON time （display 1 on ）
2* Press
D+
Select days of week ( If you want same set in every day,you need not press this key)
3 Press
H+/ M+
Set hours and minutes
4 Press
P
Setting 1 off time （display 1 off ）
5 Press
D+
Select days of week ( If you want same set in every day,you need not press this key)
6 Press
H+/ M+
Set hours and minutes
7 Repeat step 2-6 Set 2-8 on/off time
8** Press End
For cancel engagements , press “MANUAL ” then “------” is displayed on LCD to confirm cancel . May
press “MANUAL ” again to resume initial setting.
*
10 deferent mode
: ( 1.MO 2.TU 3. WE 4. TH 5. FR 6. SA 7. SU 8. MO TU WE TH FR 9. SA SU 10. MO TU WE TH FR SA SU )
**
IF you need not 8 time setting press“ ” key to the end
4.CLOCK SETTING
(1)Press “ ” and “ D+ ” together till correct date is shown.
(2)Press “ ” and “ H+ ” together till correct hour is shown.
(3)Press “ ” and “ M+ ” together till correct min is shown.
(4)Press “ MANUAL ” key to display ON AUTO or AUTO OFF. ( If this clock in your program is ON selects ON AUTO ,and this clock in your program is OFF selects AUTO OFF )
5.If you always want to use time switch ON or OFF,Please Press “ MANUAL ”key to display “ON” or “OFF”.
NOTE:
THE POWER CONSUMPTION OF CONNECTED ELECTRICAL APPLIANCES, SHALL BE WITHIN . THE LIMITATION OF FOLLOWING RATED CAPACITY
Certifications
Recommend Products
Packing & Delivery
standard export package
