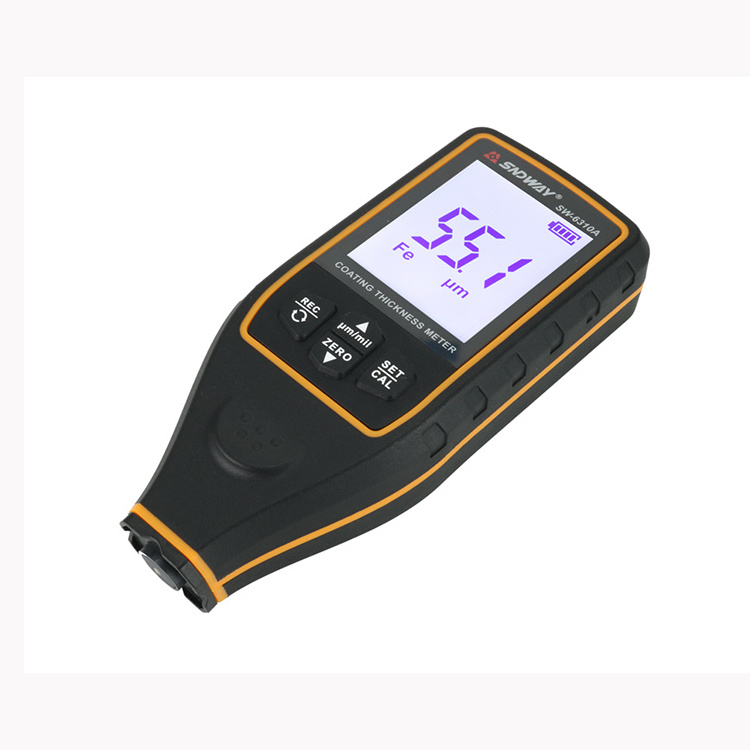

Iron and non-ferrous Metals Thickness Measure Digital Paint Meter Car Coating Thickness Gauge
Iron and non-ferrous Metals Thickness Measure Digital Paint Meter Car Coating Thickness Gauge
Iron and non-ferrous Metals Thickness Measure Digital Paint Meter Car Coating Thickness Gauge
Iron and non-ferrous Metals Thickness Measure Digital Paint Meter Car Coating Thickness Gauge
Iron and non-ferrous Metals Thickness Measure Digital Paint Meter Car Coating Thickness Gauge
Iron and non-ferrous Metals Thickness Measure Digital Paint Meter Car Coating Thickness Gauge
Iron and non-ferrous Metals Thickness Measure Digital Paint Meter Car Coating Thickness Gauge
Iron and non-ferrous Metals Thickness Measure Digital Paint Meter Car Coating Thickness Gauge

Iron and non-ferrous Metals Thickness Measure Digital Paint Meter Car Coating Thickness Gauge

FOB Reference Price: Get Latest Price
≥1 Pieces
US $69
≥5 Pieces
US $68
≥10 Pieces
US $66
≥50 Pieces
US $65
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
SW - 6310A
Product Name:
Digital Paint Meter Car Coating Thickness Gauge
Measuring Range:
0~1700
Resolution:
0.1 μm / 1μm
Application:
Thickness Gauge
Fuction:
car paint coating thickness gauge
Certificate:
CE FCC
Keyword:
Paint Thickness Meter
Keyword 1:
coating thickness gauge

Quick Details

Warranty:
1 YEAR
Place of Origin:
Guangdong, China
Brand Name:
SNDWAY
Model Number:
SW - 6310A
Product Name:
Digital Paint Meter Car Coating Thickness Gauge
Measuring Range:
0~1700
Resolution:
0.1 μm / 1μm
Application:
Thickness Gauge
Fuction:
car paint coating thickness gauge
Certificate:
CE FCC
Keyword:
Paint Thickness Meter
Keyword 1:
coating thickness gauge

Iron and non-ferrous Metals Thickness Measure Digital Paint Meter Car Coating Thickness Gauge

Product Description

Iron (F) and on non-ferrous metals (N) dual usage SW-6310A Features:

1. 2.0 inches large segment screen

2. Rotatable display screen for different views of user during measuring of process.

3. Easy to use , directly attach to the coating and on screen shows the property and thickness.

4. Provide Zero and Multi-spots calibration , calibrating reliably and rapidly.

5. Saving the measured datum up to 30 sets, power-off will not obliterate datum.

6. Warning function of upper/lower limits

7. Press for power-on, and auto power-off with no operation .

8. Indication of low power

Iron and non-ferrous Metals Thickness Measure Digital Paint Meter Car Coating Thickness Gauge

Specifications

Any question on the thickness meter specs, please contact us.

Model NO.

SW-6310A

Measuring range

Magnetic and n on magnetic material 0~1700µm

Resolution

0.1μm @ (0~99.9μm); 1μm @ (100~1700μm)

Indication error

±(2+2%*H)μm @ (0~500μm) ±(2.5%*H)μm @ (500~1700μm)

Min measuring area

Magnetic and n on magnetic material 25×25mm

Min curvature

Convexity 5mm; concave 30mm

Min substrate thickness

Magnetic material 0.2mm; Non magnetic material 0.05mm

Screen

2.0 inches large segment screen

Memory

0 unit s

Units

mil/µm 1mil=25.4µm;1µm=0.03937mil

Battery

2×1.5V AAA

Basic measurement

Single /Continuous measurement

Memory/Delete record

yes

The screen rotation

yes

Calibration

Zero-spot calibration ; Calibration-film calibration

Limiting value measurement

yes

Dimension

120x52x26mm

Detailed Images

Package contents:

1 x Coating Thickness Gauge
1 x tool box
1 x sling
1 x Chinese+ English manual
1 x outer color-box package
1 x iron substrate
1 x aluminium substrate
5 x calibration film
1 x small PP box(for storing the substrates and the calibration films)

Packing & Delivery

All your coating thickness meter gauges will be tested before packing and delivering.
