Quick Details
-
Voltage:
-
380V/ 3PH/ 50HZ
-
Disc Dia.:
-
Auto Spray Paint Booth
-
No Load Speed:
-
none
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUESKY
-
Model Number:
-
BSH-SP9300A
-
Baking method:
-
Riello diesel burner
-
Baking temperature:
-
60~80℃
-
Air Velocity:
-
0.35m/s
-
Environmental certificate:
-
CE approved
-
Fans kind:
-
The centrifugal fans CE
-
Packing detail:
-
20ft container, FCL
-
Warranty:
-
2 years. Service for ever
-
Colour:
-
Blue,red, gray and others
-
Special design:
-
Can do all special design according your requirement
-
Lighting System:
-
LED
Quick Details
-
Power:
-
19.5kw
-
External Size:
-
8100*5250*3700 mm
-
Internal Size:
-
8000*4000*3000 mm
-
Voltage:
-
380V/ 3PH/ 50HZ
-
Disc Dia.:
-
Auto Spray Paint Booth
-
No Load Speed:
-
none
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BLUESKY
-
Model Number:
-
BSH-SP9300A
-
Baking method:
-
Riello diesel burner
-
Baking temperature:
-
60~80℃
-
Air Velocity:
-
0.35m/s
-
Environmental certificate:
-
CE approved
-
Fans kind:
-
The centrifugal fans CE
-
Packing detail:
-
20ft container, FCL
-
Warranty:
-
2 years. Service for ever
-
Colour:
-
Blue,red, gray and others
-
Special design:
-
Can do all special design according your requirement
-
Lighting System:
-
LED
♥ Tips: We also can produce the machine as your requirments .

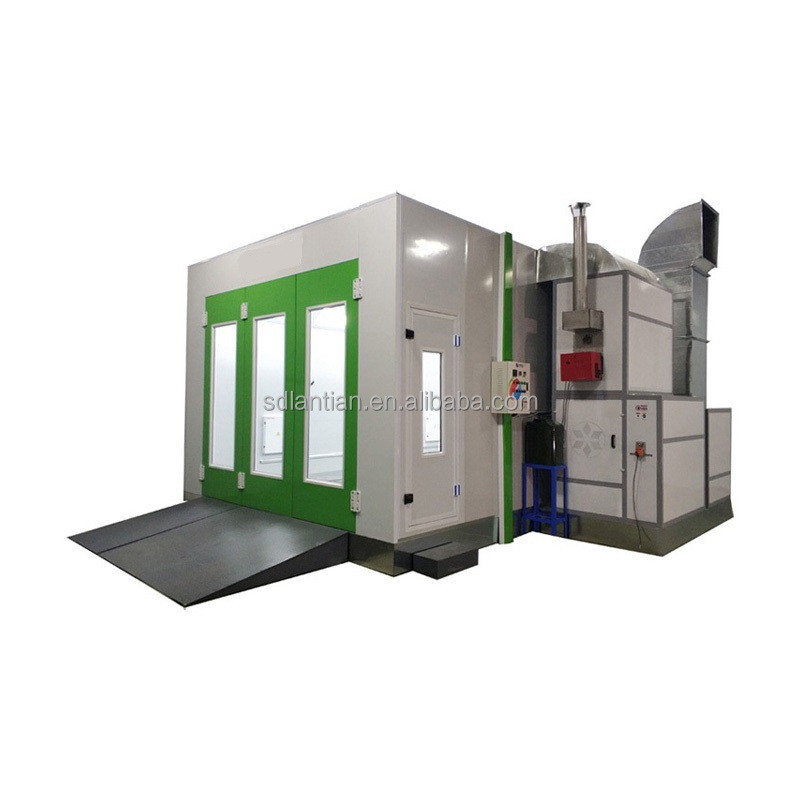

BSH-SP9300A high quality spray booth
BSH-SP9300A truck spray booth/spray painting booth/cheap paint booth
BSH-SP9300A heat booth/auto oven/painting drying booth
Dimensions:
|
Dimensions: |
Length(mm) |
Width(mm) |
Height(mm) |
|
Outer Size |
8,100 |
5,250 |
3,700 |
|
Internal Size |
8,000 |
4,000 |
3,000 |
|
Entrance Door |
Adopt with handle and lock |
3,000 |
2,900 |
|
Operatior’s Door |
Adopt with handle and Anti-Explosion |
800 |
2,000 |
Features:
|
Features: |
Total power 19 .5 kw; 380V/3ph/50hz; Noise < 80db |
|
I . Wallboard |
Adopt high quality fireproof insulation EPS panel, thickness: 50 mm ( Rock wall optional ) |
|
II . Foundation System |
Full metal foundation, two rows flat steel grids and three rows metal non-slip diamond plates, the grids are twisted steel for the cross bar steel grating. Galvanized and beautiful, durable and better force bearing. |
|
III . Heating System |
Adopt one unit of Italy Riello diesel burner G 2 0 ( Gas burner and Electrical heating optional ); One set of heat exchanger, high efficient heat-resistant stainless steel as cycling ; 4-6 minutes (from 20-60℃) underbaking status, max baking temperature is 80℃; One unit of Cabinet(Rock-wool insulation), Two pcs Air ducts. |
|
IV . Filtration System |
Pre-filters Can Capture Granules Larger than 10μm; Ceiling filter can Capture Granules Bigger than 4μm. Floor filter multilayer glass fiber, air cleanliness in room can reach 98% |
|
V . Light System |
Ceiling light, 10 group×4pcs = 40pcs×36w; Bottom light, 6 group×4pcs = 24 pcs×36w; With light fixture, anti-explosion design. |
|
VI . Ventilation System |
Air -inlet fan 2 sets×4 kw , Centrifugal ; Air -outlet fan 1 set 5.5 kw , Centrifugal ; Air flow speed in cabin 0.35 m/s . One set of Painting and baking exchange system One set of Cabinet for the fans and three pcs air ducts |
|
VII . Control Panel |
One unit, including spray switch, baking switch, emergency stop, etc. (Micro-Computer Programme controlling optional) |
|
VIII . Other Include |
All sets of hardware, fasteners and sealants |
