HFC AGC 4 port return path fiber receiver outdoor catv optical node price

HFC AGC 4 port return path fiber receiver outdoor catv optical node price

Product Description:

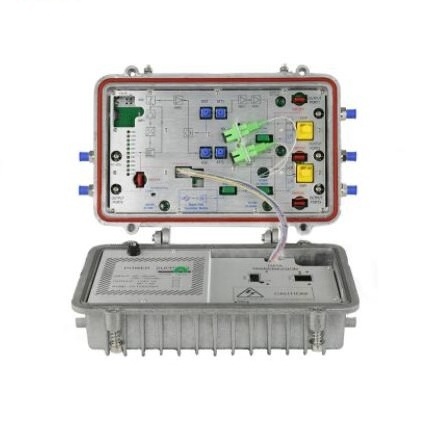

Optical receiver is an outdoor 4 outputs waterproofing receiver. It is mainly used in the building, community or village with concentrated users and high level multi outputs distribution network.  Also suitable to used in the place where it is not convenient to take the electricity and single equipment drives many users

It can work together with ONU or EOC to realize the network convergence. when the optical inputpower  -9~+2dBm, the output level will be same, which is easy for debugging.

Feature:

1. Adopt waterproof aluminum shell and the waterproof level could reach to IP65 grade.

2. Double shield panel that can ensure the excellent EMC index.

3. Advanced GaAs low noise amplified circuit increases the receiving sensitivity.

4. AGC control range +2~-8dBm, output level unchanged.

5. Precision detection circuit can realtime display the output power through LED lamp or digital tube accurately.

6. The tap and splitter can be exchanged.

7. AC - 60v has independent power supply port.

8. Two-stage attenuation, two-stage balance, network adjustment more freedom.

9. Support return path and return path can be reserved.

10. With external test port that can test without opening the housing.

11. International general SNMP

The package: will be packed according to standard export requirements, customer satisfication is our target.
Label printing: Customer logo or Runzhou brand are available
