Quick Details
-
Band Wheel Diameter:
-
70cm
-
Max Sawing Wood Diameter:
-
1.6m
-
Max cutting length:
-
15feet or as customer needs
-
Rail length:
-
5800mm or as customer needs
-
Saw walk forward /back:
-
Manual or inverter
-
Cutting thickness:
-
2-300mm
-
Cutting width:
-
60''
-
Weight:
-
1100kg
-
Certification:
-
ISO9001
-
Power:
-
22kw
Quick Details
-
Place of Origin:
-
Shandong, China
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Name:
-
portable horizontal band sawmill
-
Band Wheel Diameter:
-
70cm
-
Max Sawing Wood Diameter:
-
1.6m
-
Max cutting length:
-
15feet or as customer needs
-
Rail length:
-
5800mm or as customer needs
-
Saw walk forward /back:
-
Manual or inverter
-
Cutting thickness:
-
2-300mm
-
Cutting width:
-
60''
-
Weight:
-
1100kg
-
Certification:
-
ISO9001
-
Power:
-
22kw
Product Description

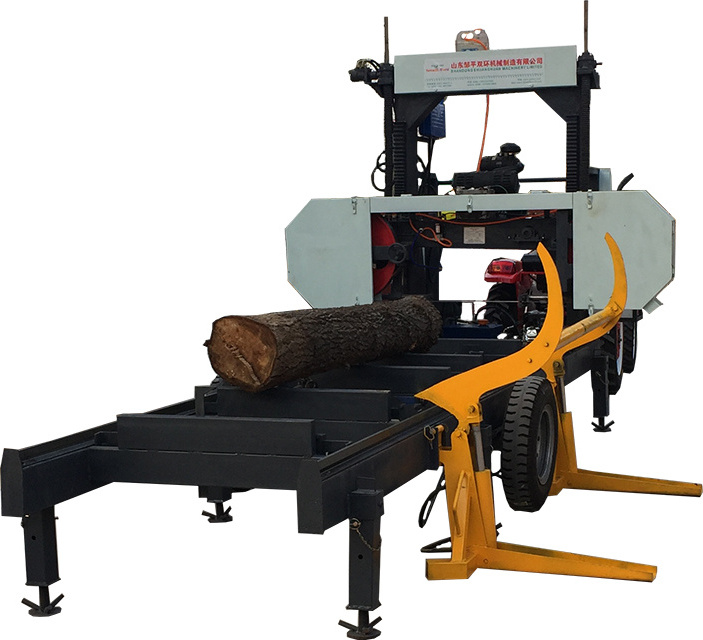

Portable Horizontal Band Sawmill
Portable horizontal band sawmill there are diesel engine type, electrical type.
It is designed to meet the requirements of some customers for sawmill portable usage.
It has the advanges of simple installation, easy operation, lavor saving, and high productivity.
It is widely used in the areas of virgin forests and timber processing enterprises.
It is quite popular in Africa, South America, South Asia, Oceania Islands, Eastern Europe, etc.
Its sawmill track length can be extended as customer needs.
Its motor power can also be changed to big one as customer needs.
|
Portable Horizontal Band Sawmill-Diesel engine type
|
|
|
|
|
||||
|
Technical parameters
|
MJ700P
|
MJ1000D
|
MJ1300D
|
MJ1600D
|
||||
|
Cutting max. diameter
|
700mm
|
1000mm
|
1300mm
|
1600mm
|
||||
|
Band wheel diameter
|
600mm
|
700mm
|
700mm
|
700mm
|
||||
|
Sawn lumber thickness
|
10-250mm
|
10-300mm
|
10-300mm
|
10-300mm
|
||||
|
Cutting max. length
|
4500mm
|
4500mm
|
4500mm
|
4500mm
|
||||
|
Diesel engine motor
|
13HP Petrol
|
22HP
|
25HP
|
27HP
|
||||
|
Tension blade mode
|
manual
|
manual
|
manual
|
manual
|
||||
|
Machine length
|
5800mm
|
5800mm
|
5800mm
|
5800mm
|
||||
|
Total weight
|
700kg
|
1100kg
|
1300kg
|
1500kg
|
||||
|
Quantity/20ft GP
|
5sets
|
2sets
|
2sets
|
2sets
|
||||
|
Portable Horizontal Band Sawmill-electric type
|
|
|
|
|
||||
|
Technical parameter
|
MJ700E
|
MJ1000E
|
MJ1300E
|
MJ1600E
|
||||
|
Cutting max. diameter
|
700mm
|
1000mm
|
1300mm
|
1600mm
|
||||
|
Band wheel diameter
|
600mm
|
700mm
|
700mm
|
700mm
|
||||
|
Sawn lumber thickness
|
10-250mm
|
10-300mm
|
10-300mm
|
10-300mm
|
||||
|
Cutting max. length
|
4500mm
|
4500mm
|
4500mm
|
4500mm
|
||||
|
Electric motor power
|
15kw
|
18.5KW
|
22kw
|
30kw
|
||||
|
Lifting motor power
|
1.1kw
|
1.1kw
|
1.1kw
|
1.1kw
|
||||
|
Tension blade mode
|
manual
|
manual
|
manual
|
manual
|
||||
|
Machine length
|
5800mm
|
5800mm
|
5800mm
|
5800mm
|
||||
|
Total weight
|
600kg
|
1100kg
|
1300kg
|
1500kg
|
||||
|
Quantity/20ft GP
|
5sets
|
2
|
2
|
2
|
||||
Product Show
Heavy duty band sawmill
CNC Vertical band saw with carriage
Wood Shaving machine
Hydraulic auto saw mill
Wood sliding table sawmill
double spindle multi ripsaw
Board Edger
Twin Bandsaw
multi heads band resaw
Company Introduction
Shandong Zouping Shuanghuan Machinery Co.,Ltd is one of the world's leading manufacturers of high quality sawmills . Established in 1988, the company has always been committed to the production and R&D of sawmills and sincerely serves 11,000 enterprises. Our products have been exported to 61 countries all over the world .
Our Services & Strength
We are making unremitting efforts to improve the quality of our machines. There is strict quality control system and an experienced leadership of management team.
FAQ
Specialises in woodworking saw machines . Band sawmills , Circular saw, Multi Ripsaw, Chainsaw mill, Multi heads band saw, etc to meet all your cutting requirements.
