Quick Details
-
Voltage:
-
380V
-
Power:
-
13KW
-
Dimension(L*W*H):
-
5000*2300*2000mm
-
Weight:
-
2000
-
Product Name:
-
Wet Wipes Machine
-
Capacity:
-
300~400 bags/min (3600~4800 pieces/min)
-
Raw Materials:
-
Spunlace or hot-rolled non-woven fabric, Dust-free paper
-
Single Unfolded Size:
-
(110-220)*(150~220)mm
-
Folded Size:
-
(110-220)*(90~110)mm
-
Production Process:
-
Automatic Folding, Humidifying, Cutting, Packing, Printing Date
-
Folding Method:
-
Z/N/W-shaped folding (extraction or non-extraction)
-
Counting Method:
-
Automatic counting, Variable number of sheets stacking system
-
Slitting Length:
-
80~220mm
-
Mixing Tank Capacity:
-
400L
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Fuyuan
-
Marketing Type:
-
Hot Product 2022
-
Voltage:
-
380V
-
Power:
-
13KW
-
Dimension(L*W*H):
-
5000*2300*2000mm
-
Weight:
-
2000
-
Product Name:
-
Wet Wipes Machine
-
Capacity:
-
300~400 bags/min (3600~4800 pieces/min)
-
Raw Materials:
-
Spunlace or hot-rolled non-woven fabric, Dust-free paper
-
Single Unfolded Size:
-
(110-220)*(150~220)mm
-
Folded Size:
-
(110-220)*(90~110)mm
-
Production Process:
-
Automatic Folding, Humidifying, Cutting, Packing, Printing Date
-
Folding Method:
-
Z/N/W-shaped folding (extraction or non-extraction)
-
Counting Method:
-
Automatic counting, Variable number of sheets stacking system
-
Slitting Length:
-
80~220mm
-
Mixing Tank Capacity:
-
400L
Product Introduction

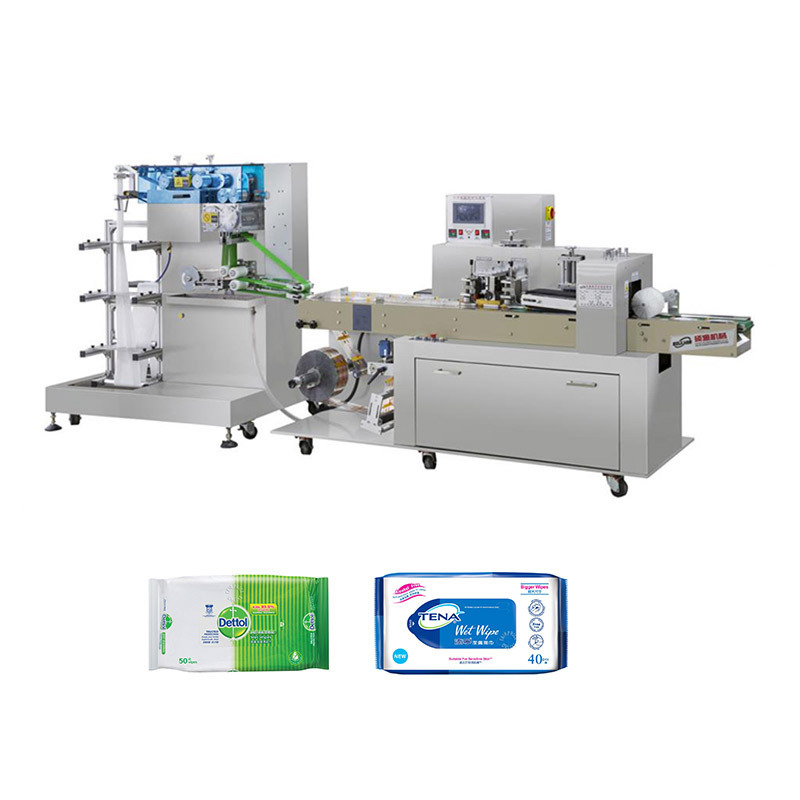

Non-woven Fabric Acceptable Price Baby Wipe Wet Tissue Folding & packing Machine
This machine is a special equipment for the production of multi-piece baby wipes (multi-piece/removable). After folding,
humidifying, cutting, stacking and counting, the product automatically enters the packaging machine after automatic output, and carries out coding, opening, and sticking. After the label and bag are gusseted, they are packaged as finished products. The whole process does not need manual labor, all are fully automatic, and the production process is fast and safe.
humidifying, cutting, stacking and counting, the product automatically enters the packaging machine after automatic output, and carries out coding, opening, and sticking. After the label and bag are gusseted, they are packaged as finished products. The whole process does not need manual labor, all are fully automatic, and the production process is fast and safe.
Product Paramenters
|
Capacity
|
300~400 bags/min (3600~4800 pieces/min)
|
FY-N200
|
FY-N240
|
FY-N280
|
FY-N300
|
FY- N330
|
|
||||||
|
Raw Materials
|
Spunlace or hot-rolled non-woven fabric, Dust-free paper, etc.
|
1100 mm
|
1100 mm
|
1100 mm
|
1100 mm
|
1100 mm
|
|
||||||
|
Single Piece Unfolded Size
|
(110-220)×(150~220)(mm)
|
|
|
|
|
|
|
||||||
|
Productive Process
|
Automatic folding, Humidifying, Cutting, Packing, Printing date
|
|
|
|
|
|
|
||||||
|
Folding Method
|
"Z"-shaped folding (extraction or non-extraction)
|
|
|
|
|
|
|
||||||
|
Single Folded Size
|
(110-220)×(90~110)(mm)
|
|
|
|
|
|
|
||||||
|
Counting Method
|
Automatic counting, Variable number of sheets stacking system
|
|
|
|
|
|
|
||||||
|
Control interface
|
MITSUBISHI ELECTRIC touch human-machine interface
|
|
|
|
|
|
|
||||||
|
Roll size
|
¢1000×240 (mm)
|
|
|
|
|
|
|
||||||
|
Slitting length
|
80~220 mm
|
|
|
|
|
|
|
||||||
|
Total power
|
12.6KW
|
|
|
|
|
|
|
||||||
|
Power supply
|
380V 50HZ
|
|
|
|
|
|
|
||||||
Production process
Main features:
This machine designed for wet wipes packaging design and the vertical fold ,easy operation,durable with compact
structure.Productive Process:Automatic folding, Humidifying, Cutting, Packing, Printing date.
Cutting part：Automatic cutting and folding device for non-woven fabric
Folding part：According to the size of the non-woven fabric, fold according to customer requirements
Water tank part：The non-woven fabric passes through the water tank and automatically adds liquid
Packaging part：Wet wipes are automatically packed, packaging requirements can be customized,hanging holes,
trimming patterns, etc.
Finished product
Packaging & Shipping
Technical Support：
1. Provide free consulting services to help customers formulate and analyze the feasibility of projects
2. We provide design, installation drawings and information required for production according to the actual situation of customers
3. Advise customers on common equipment problems
4. Technicians can be dispatched to your company to install and debug equipment.
After-sale Service：
1. The machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
2. When the machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.
3. When the machines are delivered to the customers, we can go to customer’s factory to install, test the machines, and to train again before the operation staff start working.
4. During this period of one year warranty, if the machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
5. During this period of warranty, if there is something wrong with the machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
6. After the warranty, we charge only cost price for maintaining the machines within three years.
Company profile
Henan Fuyuan Machinery Manufacturing Co., Ltd
located in Zhengzhou City, Henan Province.Our factory is founded in 1984 with rich experience in paper making machine and egg tray making machinery. Our main products include: Egg Tray Machine,Facial Tissue Machine,Napkin Paper Machine,Toilet Paper Rewinding Machine, Kraft paper machine,Cultural Paper Machine and other Paper Processing Machinery.
