Quick Details
-
Voltage:
-
Customized
-
Power:
-
Customized
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
According to the equipment
-
Processing Types:
-
alcohol
-
Material:
-
Copper/stainless steel
-
Welding:
-
Arc Argon Protection
-
Technology:
-
Offer Auto Cad and 3D design drawing
-
Material Thickness:
-
Inner wallet 3MM
-
Still pot heating:
-
Steam jacket,electric tube
-
Column material:
-
Stainless steel/Copper /Glass
-
Usage:
-
gin/vodka/multi-spirits wine
-
Control Unit:
-
Temp. Controller ,HMI , PLC or touching screen
-
Name:
-
500L distillation equipment column still distillery for spirit wine
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
METO
-
Model Number:
-
500L
-
Voltage:
-
Customized
-
Power:
-
Customized
-
Weight:
-
1000 KG
-
Dimension(L*W*H):
-
According to the equipment
-
Processing Types:
-
alcohol
-
Material:
-
Copper/stainless steel
-
Welding:
-
Arc Argon Protection
-
Technology:
-
Offer Auto Cad and 3D design drawing
-
Material Thickness:
-
Inner wallet 3MM
-
Still pot heating:
-
Steam jacket,electric tube
-
Column material:
-
Stainless steel/Copper /Glass
-
Usage:
-
gin/vodka/multi-spirits wine
-
Control Unit:
-
Temp. Controller ,HMI , PLC or touching screen
-
Name:
-
500L distillation equipment column still distillery for spirit wine
Product Description
Distilled alcohol is a kind of alcoholic beverage with higher ethanol concentration than the original fermentation product. Brandy, whisky, rum and Chinese liquor are all distilled spirits, most of which are spirits with high degree. The production process is first brewing, then distilling, then cooling, and finally obtaining the alcohol solution drinks with high degree.
|
Product name
|
150L distillation equipment
|
|
Material
|
Red copper/ Stainless steel 304/ Scale plate
|
|
Grade
|
CE, ISO9001
|
|
Usage
|
Alcohol Making, Whisky, Rum, Brandy, Gin, Vodka, etc
|
|

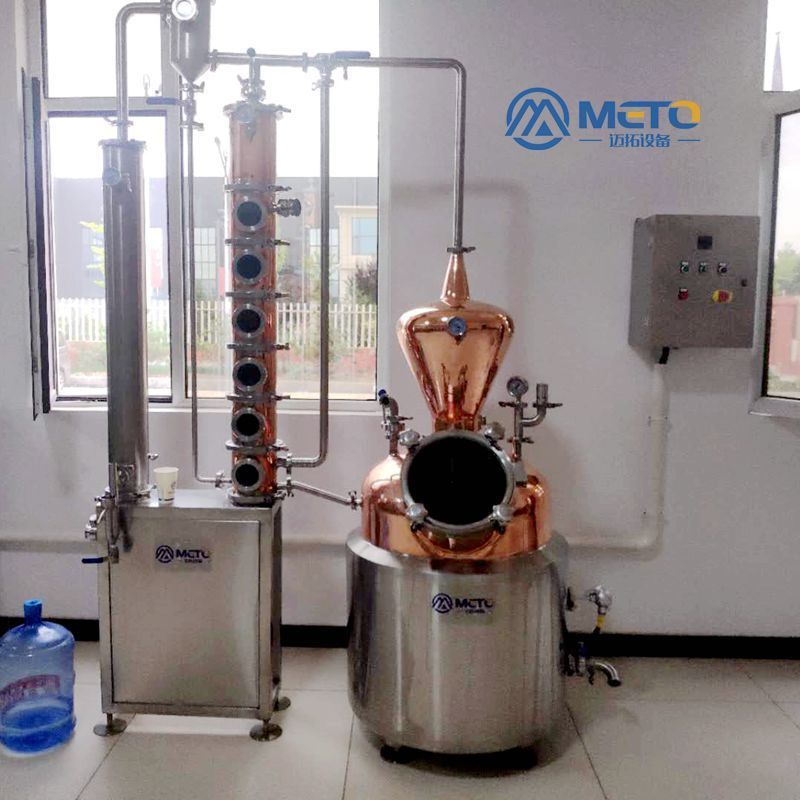

Construction
|
Boiler, Onion head, Distillation column, Dephlegmator, Gin basket, Condenser, Parrot mouth, Support frame, etc
|
Details Images
Distillation pot
Inner shell is made of copper,outer shell is SUS304 stainless steel, pot is assembled with liquid thermometer, pressure gauge,thermometer probe, safty releasing valve, CIP cleaning ball, drainvalves etc
All view Mirror pressure hole
Made of SUS 304 Stainless Steel and borosilicate glass , it have good sealingand , and can be observed at any time in the tank ,It is safe and reliable
Onion Head
It is made of copper , the designed enlarged the contacted area of the wine with the copper, It can remove highly volatile sulfurcompounds , and it can react with acid and fat in wine during use to improve the taste.
Distillation column
With blisters device and glass sight glass, it can improve thedegree and quality of the wine . For whisky and gin it is have 4 plates column (5sight glass) At the top of the column is dephlegmator , that improve the quality of the wine.
Gin Basket
The gin basket is use for gin produce , add spices and other substances to enhance the taste of the wine .
Condenser
It is made of copper pipe inside and SUS304 stainless steel column .The vapor passing through the cooling tubes gets in touch with the cold water and exchange heat with each other. Then the vapor is condensed to wine that we want. It has inlet and oulet of cooling water.
Features
All parts can be customized !!!
1. red copper, stainless steel 304/ 316
2. Mash tun, steam generator,Pot still, top, copper head, column,dephlegmator, condenser, parrot outlet, alcohol collecting tank,CIP, connecting pipes. Fermentation tank, control system.
3. Sight glasses, Temp sensor, analog temp gauge
4. Electric heating (with heating elements)/steam heating/ gas heating
5. CE, ISO, TUV Certificate
6. One year warranty
7. Semi-automatic control panel (The first batch you got can reach 65 degrees, and the maximum is 90 degrees.
One batch duration is 1.5-3 hours, and the total distillation time depends on your expected alcohol purity.Take Whiskey for
example)
1. red copper, stainless steel 304/ 316
2. Mash tun, steam generator,Pot still, top, copper head, column,dephlegmator, condenser, parrot outlet, alcohol collecting tank,CIP, connecting pipes. Fermentation tank, control system.
3. Sight glasses, Temp sensor, analog temp gauge
4. Electric heating (with heating elements)/steam heating/ gas heating
5. CE, ISO, TUV Certificate
6. One year warranty
7. Semi-automatic control panel (The first batch you got can reach 65 degrees, and the maximum is 90 degrees.
One batch duration is 1.5-3 hours, and the total distillation time depends on your expected alcohol purity.Take Whiskey for
example)
Application
Packing&Shipping
Our Service
1. Free consultation service. Technical support by phone, email or MSN/Skype around the clock
2. Layout plan in 3D or CAD drawings of your brewery;
3. Professional engineers available to going abroad for the installation,debugging,and training.
4. Assisting purchased Facilities by seller including bottling system, steam boiler, water treatment, etc.
5. Brewing technology,brewing formula,can be offered available
6. More spare parts are available to offered freely.
2. Layout plan in 3D or CAD drawings of your brewery;
3. Professional engineers available to going abroad for the installation,debugging,and training.
4. Assisting purchased Facilities by seller including bottling system, steam boiler, water treatment, etc.
5. Brewing technology,brewing formula,can be offered available
6. More spare parts are available to offered freely.
Company Introduction
FAQ
Q1: Can your brewery system make both wine,gin,whiskey and vodka?
A1 :Yes. Our distillation system can do this.
Q2 :How to do temperature control?
A2 :The digital display meter can control the temperature via connecting with the PT100 sensor. Insulation keep the temperature.
Q3: Is it possible to supply installation in my country?
A3 Yes, our engineers can go to your place and teach your person installation and brewing.
A1 :Yes. Our distillation system can do this.
Q2 :How to do temperature control?
A2 :The digital display meter can control the temperature via connecting with the PT100 sensor. Insulation keep the temperature.
Q3: Is it possible to supply installation in my country?
A3 Yes, our engineers can go to your place and teach your person installation and brewing.
