Self-Adhesive Transparent LED Display Film P4 Pixel Pitch Film Led Display

Self-Adhesive Transparent LED Display Film P4 Pixel Pitch Film Led Display

FOB Reference Price: Get Latest Price

≥1 Pieces

US $1385

≥50 Pieces

US $1365

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Color:: Full color

Panel Size:: 1920mmx320mm, 1920mmx320mm

Place of Origin:: Guangdong, China

Model Number:: KS-FILM-P4

Brightness:: 3500nits, 3500nits, 3500cd/sqm

Color Depth:: RGB 3IN1, RGB 3IN1

Lifespan (hours):: 100000H, 100000H

IP Rating:: IP43, IP43

HS Code:: 8528591090

Resolution:: 62500pixels, 482x80pixels

View Angle（H/V）:: 160/160, 160/160

Display Function:: Video Picture Graphic Text Message

Warranty:: 1 Year

Refresh rate:: 1920-3840Hz

Operating system:: Android/Windows 7/8/10

Life span:: 100000 Hours

Feature:: Self-adhesive/super thin/light weight/guazy

Quick Details

Application:: Indoor

Type:: LED

Brand Name:: KENSUN

Color:: Full color

Panel Size:: 1920mmx320mm, 1920mmx320mm

Place of Origin:: Guangdong, China

Model Number:: KS-FILM-P4

Brightness:: 3500nits, 3500nits, 3500cd/sqm

Color Depth:: RGB 3IN1, RGB 3IN1

Lifespan (hours):: 100000H, 100000H

IP Rating:: IP43, IP43

HS Code:: 8528591090

Resolution:: 62500pixels, 482x80pixels

View Angle（H/V）:: 160/160, 160/160

Display Function:: Video Picture Graphic Text Message

Warranty:: 1 Year

Refresh rate:: 1920-3840Hz

Operating system:: Android/Windows 7/8/10

Life span:: 100000 Hours

Feature:: Self-adhesive/super thin/light weight/guazy

P4 Self-adhesive Transparent Film Led Display

T2 is a cutting-edge technology designed to elevate the aesthetic appeal of glass walls while maintaining their natural lighting. Its flexibility and bendability make it the perfect choice for installation on any glass surface, allowing it to blend in seamlessly with the architecture. The display is incredibly thin and light, almost gauzy, which gives it a magical quality as images pop up in the air with 90% transparency. With its combination of flexibility, transparency, and magical qualities, T2 is sure to amaze and impress anyone who sees it.

Self-adhesive transparent led display feature

Gauzy And Ligth weight

T2 1.2mm thin and 2kg per sqm LED display
effortlessly integrates with any surface,
ensuring effortless assembly and maintenance.

Unprecedented Transparency of 90%

Featuring extremely small and transluscent diode fixed PET crystal coating board which with circuits on both sides are transparently etched, and finished with vacuum adhersion OC gluing technology, it suring the transparency of T2 reaching up to a
unprecedented 90%, it perfectly integrates with glass walls without compromising the view and lighting.

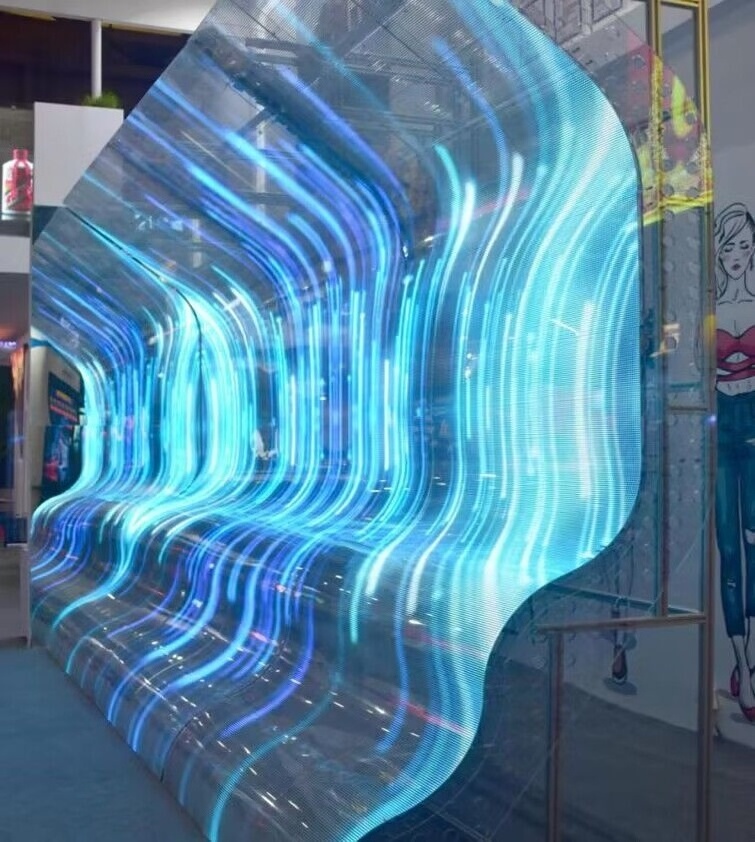

Fitting Surface with Curve.

T2 features a unique design that is extremely flexible
and bendable, making it perfect for fitting any
surface with a curve. It delivers a stunning visual
experience that will leave you amazed.

Seamlessly Integrating with Architecture.

T2 is designed to blend in seamlessly with
architecture while maintaining the natural lighting
of the space. It perfectly integrates with glass walls
without compromising the view.

A Stunning Visual Experience

T2 is designed to deliver a stunning visual
experience, with a maximum brightness of up to 1500nits. With this level of brightness, images magically pop up in the air, making it the perfect choice for environments with high ambient lighting.

Tailor Your Display to Your Needs

With its unique design, LED Display is designed to be cuttable, allowing you to tailor the size of the display to your specific needs
with a scissor.

Led display user manual

P4 indoor full color LED display, screen size is customized and the cabinet with strong die cast al-cabinet case. Its non-waterproof, it is IP45, can use for indoor and Programmable message by PC software save to u-disk and update through U-disk,Or sent the message by WIFI. PC software support Windows and iOS system, also can program message by smart phone.Wi-fi connection by phone APP to update the message

P4 film led display specifications

Pixel Pitch	4mm
Model	P4 indoor full color led module
Pixel Configuration	SMD2121 nationstar 1R1G1B
Cabinet Resolution	480dotsX80dots
Cabinet size	1920mm(W)x320mm(H)x 1.2mm(D)
Cabinet Weight	1kg
Material	Indoor Die cast al-Cabinet Design(optional)
Voltage	AC 220V(110V)± 10%, 50 Hz-60Hz
Power Consumption	MAX≤600W/sq.m, AVG≤200W/sq.m
Waterproof	IP43
Serviceability	Adhesive
Viewing Angle	H:160° V:160°
Brightness	≥1500 cd/sq.m
Optimal Viewing Distance	≥4m
Drive Method	1/4 scan
Contrast ratio	10000:01:00
Operating temperature	-20ºC to +60ºC
Operating humidity	20% to 90%
Lifetime (50% brightness)	100,000 hours
Refresh Rate	≥1920 Hz
Operating Platform	WINDOWS(WIN98,WIN2000, WIN XP)

Quality assurance

1.Modules test -After the modules are produced, it needs to be powered and tested for 48 Hours. During this period, if the modules has quality problems, it will be detected.
2.Screen test- After there are no problem with the modules, install them on the cabinet and connect the power supplies and control cards,it needs to be powered and tested for 48-72 Hours. During this period, if some part has quality problems, it will be detected.
3.Package- After the whole process, confirm that there is no quality problem, we will pack it and arrange transportation.

4.Quality guarantee: During the warranty period, if the damage is caused by product quality problems, we will re-produce the module for free
