Quick Details
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel 304/316L
-
Capacity:
-
50-1000kg/h
-
Usage:
-
Food/herb/beverage/chemical
-
Certification:
-
ISO 9001:2008/CE
-
Heating type:
-
steam/electricity
-
Function:
-
extraction&concentration
-
Solvent:
-
Water or alcohol
-
Keywords:
-
extraction and concentration machine
-
Name:
-
ultrasonic extraction and concentration machine equipment
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CHINZ
-
Weight (KG):
-
500
-
Marketing Type:
-
New Product 2023
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Stainless Steel 304/316L
-
Capacity:
-
50-1000kg/h
-
Usage:
-
Food/herb/beverage/chemical
-
Certification:
-
ISO 9001:2008/CE
-
Heating type:
-
steam/electricity
-
Function:
-
extraction&concentration
-
Solvent:
-
Water or alcohol
-
Keywords:
-
extraction and concentration machine
-
Name:
-
ultrasonic extraction and concentration machine equipment
Products Description

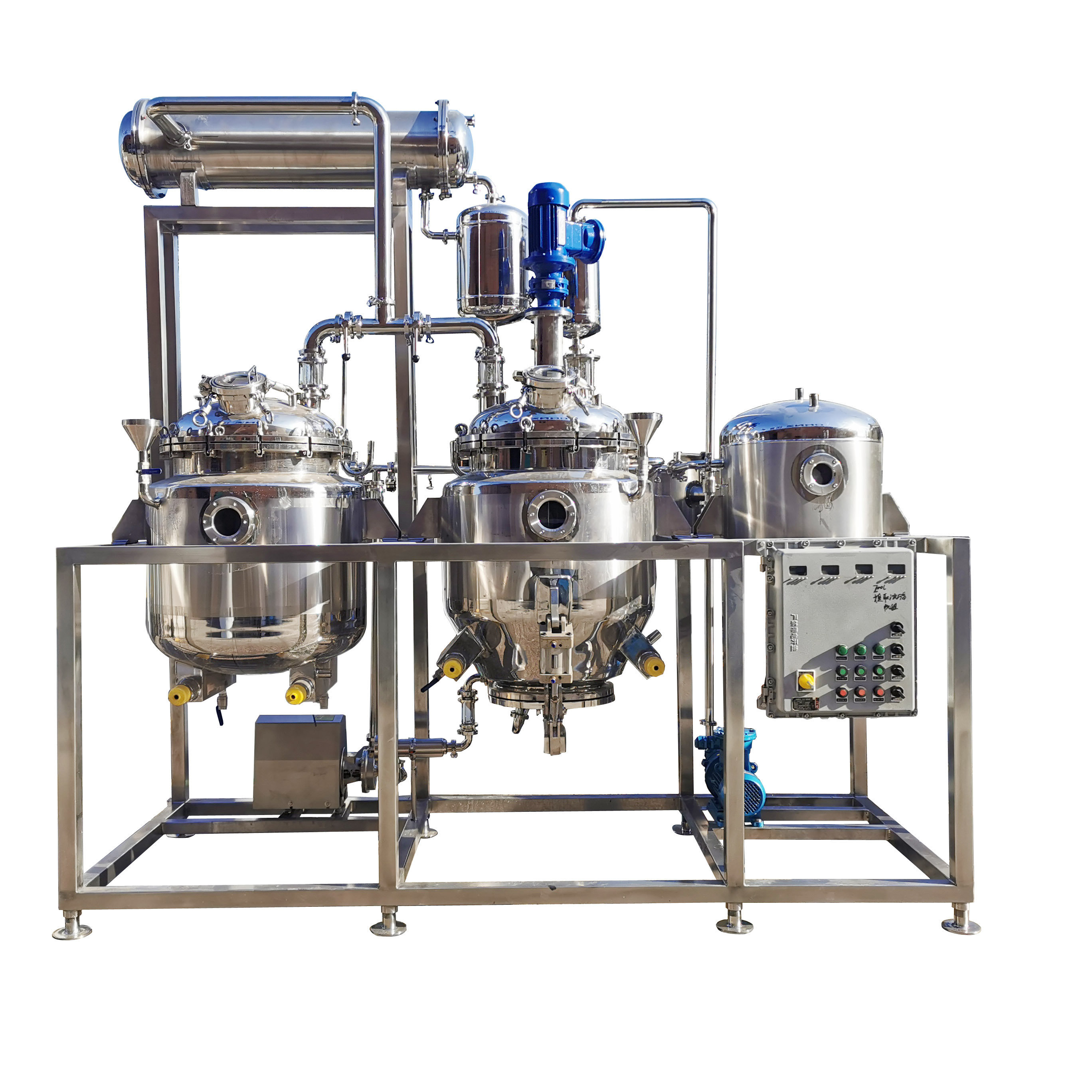

100L 200L 300L mininature herbal medicine ultrasonic extraction and concentration machine equipment
The multifunctional herbs ultrasonic Extraction and Concentration Equipment is suitable for herbs, health care products, bio-ph arm aceu ticals, cosmetics, food and other industries, normal temperature and pressure extraction, ultrasonic extraction, ultrasonic recycling extraction and ultrasonic countercurrent extraction and other processes. This device can be ultrasonic dynamic continuous countercurrent recycling extraction, suitable for ph arm aceut ical, biological products business, enterprises, laboratories and ph arm aceu tical factory R & D department of many varieties, production use.
Product Paramenters
|
Model
|
CTN-50
|
CTN-100
|
CTN-200
|
CTN-300
|
|||
|
Volume L
|
50
|
100
|
200
|
300
|
|||
|
Evaporation capacity kg/h
|
20
|
50
|
80
|
100
|
|||
|
Motor power kw
|
0.55
|
0.75
|
0.75
|
1.1
|
|||
|
steam consumption kg/h
|
25
|
60
|
90
|
120
|
|||
|
System vacuum Mpa
|
-0.06 to -0.08
|
|
|
|
|||
|
Jacket pressure Mpa
|
0.09~0.03
|
0.09~0.03
|
0.09~0.03
|
0.09~0.03
|
|||
|
Compressed air Mpa
|
0.5~0.6
|
0.5~0.6
|
0.5~0.6
|
0.5~0.6
|
|||
|
Steam temperature ℃
|
100~125
|
|
|
|
|||
Features:
1. Combined with extracting and concentrating, so as to make it easy to operate. It's polished in both internal and external side, which is in accordance with GMP requirements.
2. It's mainly made up of extracting tank, condenser, cooler, oil-water separator, filter, concentrator and liquid-recycling tank etc.
3. This ultrasonic Extraction and Concentration Equipment is manufactured with our technicians’ many years research and development, which can complete several kinds of experiments. and there're many ways to operate it. Its pipeline is specially installed.
4. It is manufactured on the seal condition in the whole process. Complete the extracting and concentrating in one time with less solvent consumption and less extracting and concentration time.
5. The optional stirrer device can be installed accordingly, as request by clients, we can provide manual, semi-auto and fully-auto types. There are electric heating and steam heating you can choose.
