Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Leadcrete
-
Model:
-
LGP1200/1200/2X75/100PI-E
-
Mixer Capacity:
-
1200L
-
Agitator Capacity:
-
1200L
-
Circulation pump power:
-
15KW
-
Circulation pump Flow:
-
850L/min
-
screw feeder Power:
-
7.5KW
-
Grouting pump Power:
-
11Kw
-
Grouting pump Piston stroke:
-
150mm
-
Dimension:
-
4770*2250*2370mm
-
Weight:
-
3880Kg
Quick Details
-
Weight (KG):
-
3450
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
mixer, circulation pump, grouting pump
-
Place of Origin:
-
China
-
Brand Name:
-
Leadcrete
-
Model:
-
LGP1200/1200/2X75/100PI-E
-
Mixer Capacity:
-
1200L
-
Agitator Capacity:
-
1200L
-
Circulation pump power:
-
15KW
-
Circulation pump Flow:
-
850L/min
-
screw feeder Power:
-
7.5KW
-
Grouting pump Power:
-
11Kw
-
Grouting pump Piston stroke:
-
150mm
-
Dimension:
-
4770*2250*2370mm
-
Weight:
-
3880Kg
Product Description

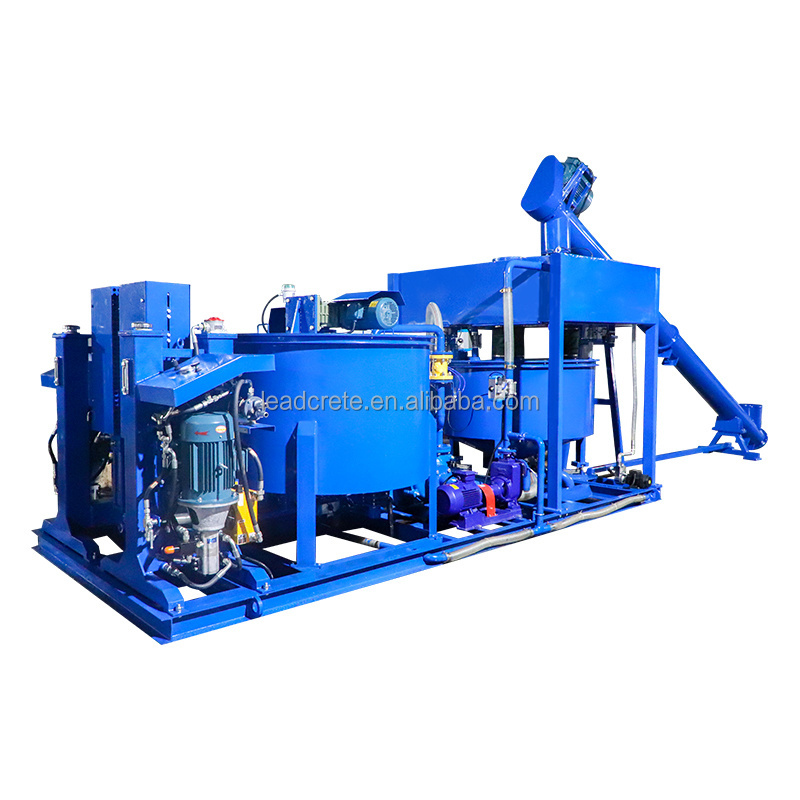

LGP1200/1200/2X75/100PI-E automatic grouting station
is a combination of a mixer,circulation pump and grouting pump. It is mainly used for making cement slurry, etc., which is applied to surface/underground construction, such as highway, railway, hydropower, construction, mining, etc.
High-speed eddy current mixer ensures fast and even mixing. Water and cement are quickly mixed into a uniform slurry. The grout is then transferred to the grouting pump, which ensures continuous mixing and grout operations. The machine is integrated with the distributor, PLC, can freely adjust the proportion of water, cement, and additives, and can be set according to the formula of automatic configuration of materials, greatly improving the work efficiency.
Technical parameters
|
Model
|
|
LGP1200/1200/2X75/100PI-E
|
||
|
Mixer
|
Capacity
|
1200L
|
||
|
|
W/C ratio
|
0.5~1
|
||
|
Agitator
|
Capacity
|
1200L
|
||
|
|
Power
|
3.0Kw
|
||
|
Circulation pump
|
Power
|
15KW
|
||
|
|
Rate Rev.
|
1800r/min
|
||
|
|
Flow
|
850L/min
|
||
|
Screw feeder
|
Power
|
7.5KW
|
||
|
|
Delivery volume
|
40t/h
|
||
|
Water supply
|
Tank capacity
|
950L
|
||
|
|
Water pump
|
50ZX20-30 (4.0KW)
|
||
|
|
Flow@head
|
20m3/h@30m
|
||
|
Additive supply
|
Tank capacity
|
150L
|
||
|
|
Additive pump
|
25SFBX-8 (0.25KW)
|
||
|
|
Flow@head
|
2m3/h@8m
|
||
|
Air Supply
|
Air compressor
|
V-0.25/8 (2.2KW)
|
||
|
|
Exhaust volume
|
0.25m3/min
|
||
|
|
Mode
|
LGH75/100PI-E
|
||
|
|
Piston diameter
|
100mm
|
||
|
|
Piston stroke
|
150mm
|
||
|
|
Low pressure@Flow
|
0-50bar@0-75L/min
|
||
|
|
High pressure@Flow
|
0-100bar@0-40L/min
|
||
|
|
Power
|
11Kw
|
||
|
Dimension(without screw feeder)
|
|
4770x2250x2370mm
|
||
|
Weight
|
|
3880Kg
|
||
|
Note: We can customize according to your requirements.
|
|
|
||
Product Details
LGP1200/1200/2X75/100PI-E automatic grouting station features:
1. Compact structure.
2. Simple operation and easy maintenance.
3. There are two operation modes: automatic mode and manual mode.
4. Less spare parts ensure low maintenance costs.
5. High speed vortex mixer ensures mix quickly and evenly.
6. The proportion of materials in the formula can be adjusted freely.
7. It can realize automatic configuration and replenishment of materials.
8. Flameproof electric cabinet, protection grade IP56.
9. With CE, and ISO certification.
2. Simple operation and easy maintenance.
3. There are two operation modes: automatic mode and manual mode.
4. Less spare parts ensure low maintenance costs.
5. High speed vortex mixer ensures mix quickly and evenly.
6. The proportion of materials in the formula can be adjusted freely.
7. It can realize automatic configuration and replenishment of materials.
8. Flameproof electric cabinet, protection grade IP56.
9. With CE, and ISO certification.
