Quick Details
-
Model Number:
-
GSX8-MS-4G
-
Material:
-
iron
-
Color:
-
black
-
Product name:
-
Wireless temperature Humidity Gateway 4G LTE Devices Data Logger
-
Power:
-
Electronic
-
Theory:
-
Temperature Controller
-
Application:
-
Oil
-
Humidity Range:
-
1 ~ 100%RH (+/- 1% )
-
Display Type:
-
Analog and Digital
-
Type:
-
Room Temperature Thermostat
-
Usage:
-
Industrial
-
Wire:
-
Ethernet Transmission
-
material:
-
metal
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Hong Kong S.A.R.
-
Brand Name:
-
EASEMIND
-
Model Number:
-
GSX8-MS-4G
-
Material:
-
iron
-
Color:
-
black
-
Product name:
-
Wireless temperature Humidity Gateway 4G LTE Devices Data Logger
-
Power:
-
Electronic
-
Theory:
-
Temperature Controller
-
Application:
-
Oil
-
Humidity Range:
-
1 ~ 100%RH (+/- 1% )
-
Display Type:
-
Analog and Digital
-
Type:
-
Room Temperature Thermostat
-
Usage:
-
Industrial
-
Wire:
-
Ethernet Transmission
-
material:
-
metal

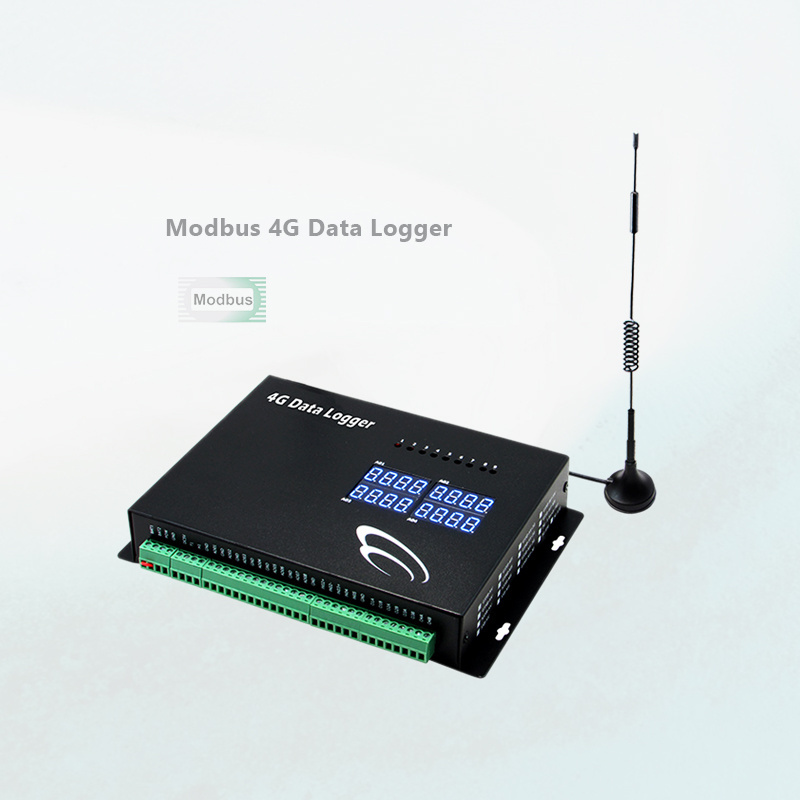

Wireless temperature Humidity Gateway 4G LTE Devices Data Logger for 4G Network lora sensors
GSX8-MS-4G is a wireless datalogger supporting 16 Modbus data registers.
It supports 4G mobile network.
detail
It is a 4G Modbus Data Logger with programmable I/O.
4G Data Logger provides faster wireless connection in a more secure and reliable 4G mobile network.
Its built-in UPS feature providing user alert of AC power loss.
During power loss, operation is backed up by internal rechargeable battery.
Overview:
* 2 Temperature Sensors (max.)
* 1 Humidity Sensor
* 8 Analog Channels (max.)
* 10 Digital Inputs
* 4 Pulse Channels
* 4 Relay Outputs
* Modbus RS485 Interface
* 16 Modbus Data Registers
* 32GB SD memory card slot
Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card.
Data can be uploaded to server as fast as 5 seconds interval, or 24 hours to save power.
Progammable data logging interval starts from 1 minute up to 24 hours.
|
Product name |
GSX8-MS-4G Modbus 4G data collector power meter data logger |
|
Display Type |
Analog and Digital |
|
Signal Type |
4~20mA or 0~5VDC |
|
Output |
5VDC |
|
Modbus Device Port |
RS485 & RS232 |
|
Data Upload Interval |
Programmable (1min ~ 24 hours) |
|
Pulse Channel |
On/Off Switching |
|
Industrial Protocol |
Modbus |
|
Digital Channel |
Alarm Dry Contact |
|
Alarm Trigger |
Digital Alarm / AD Level High or Low / Power Loss |
|
Humidity Sensor |
1 Humidity Sensor |
|
Analog Channels |
8 Analog Channels |
|
Digital Input |
4 Digital Inputs |
|
Pulse Channel |
4 Pulse Channels |
Features
1) Real Time 4G and SMS Data Upload
2) Integrated 16 bit MCU & Siemens 4G Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via USB port by PC software
6) Remote Setup over 4G mobile network
7) RS485 Port support data capturing in Modbus protocol
8) Support Dynamic Domain Name or Fixed IP, and UDP/TCP protocol data transmission
9) Flexible AC/DC power with internal battery backup
Free Software:
[1] Setup software is bundled for routine configuration via USB port locally
[2] Centre software is also provided for receiving data via 4G mobile network.
[3] Smart Client Lite app (Windows, iPad, Android) is free for user friendly graphics data display
[Applications]
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial equipment monitoring
* rural equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via 4G mobile network
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry
