Quick Details
-
Model Number:
-
PK300DC
-
Power supply:
-
220 - 240V / 110V
-
Motor power:
-
DC 24V 140 watts
-
Driving method:
-
Screw driven pistion type
-
Max. pistion stroke:
-
30 cm
-
Max. piston speed:
-
1.5 cm / sec
-
Operating cycle:
-
18 second per 90 approx
-
Maximum gate weight:
-
300kg per wing, 600kg doule wings
-
Max. single - leaf length:
-
2.5 M
-
Gearbox:
-
worm gear
-
GSM:
-
Available
Quick Details
-
Type:
-
Gate Operators
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JOYTECH
-
Model Number:
-
PK300DC
-
Power supply:
-
220 - 240V / 110V
-
Motor power:
-
DC 24V 140 watts
-
Driving method:
-
Screw driven pistion type
-
Max. pistion stroke:
-
30 cm
-
Max. piston speed:
-
1.5 cm / sec
-
Operating cycle:
-
18 second per 90 approx
-
Maximum gate weight:
-
300kg per wing, 600kg doule wings
-
Max. single - leaf length:
-
2.5 M
-
Gearbox:
-
worm gear
-
GSM:
-
Available

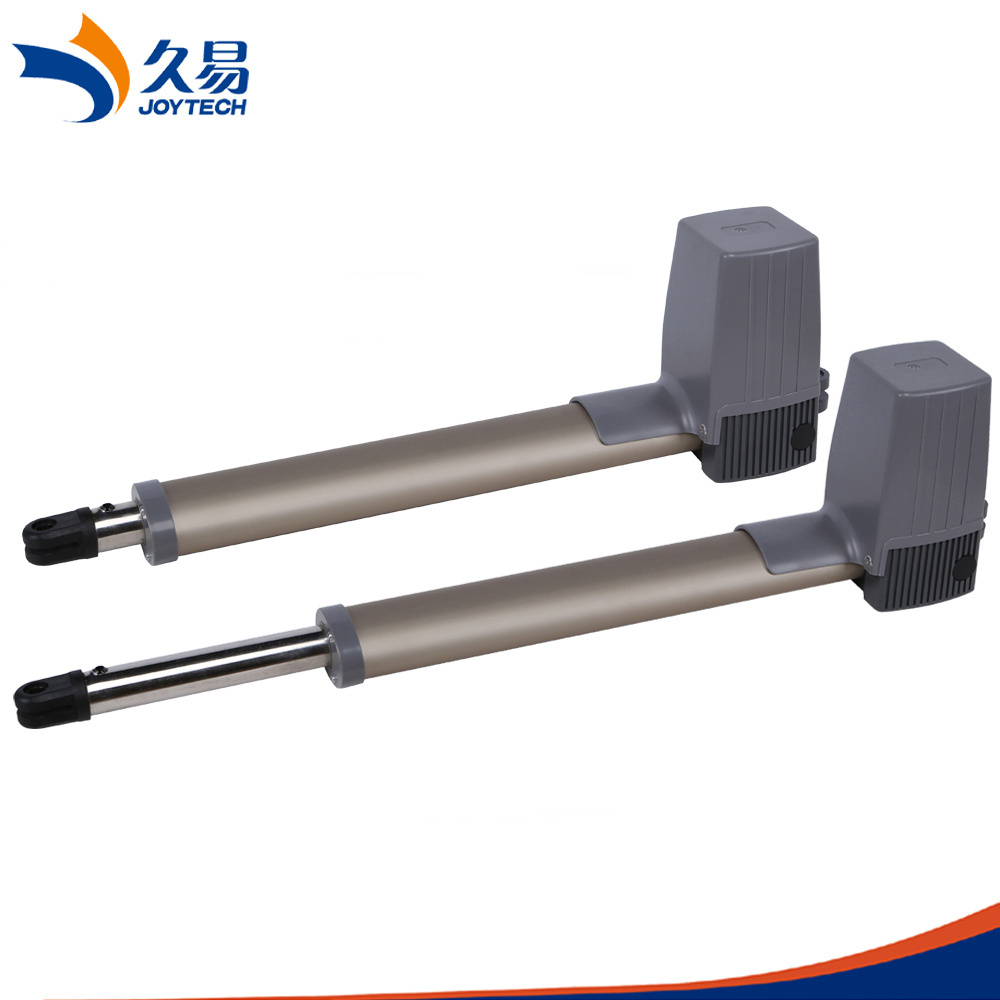

24V GSM AUTOMATIC SWING GATE OPENER PK300DC MAXIMUM 300KG DOUBLE SWING GATES
Product Description
Swing gate opener PK300DC is 24V DC motor, for single gate 300 KGS, double gates 600 KGS.
- Soft start slow stop, automatic close, obstacle detection by automatic reversng.
- Interface for GSM, infrared sensor, alarm light, wall button.
- Back up battery is available.
- Works with solar panel.
- Shell material is aluminum, arm is stainless steel.
- Separate control unit, easy to install.
Technica data
| Type | PK300DC |
| Driving method | Screw driven piston type |
| Operating voltage | DC 24V for normal speed |
| Max. output power | 70 W per driver |
| Max. piston stroke | 30 cm |
| Max. piston speed | 1.5 cm / sec |
| Operating cycle | 18 seconds per 90 (approx) |
| Max. single - leaft weight | 300 kg per wing |
| Max. single - leaft length | 2.5 m |
| DSPS device | Electronic timing tracker |
| Gearbox | Worm gear |
| Safety clutch | Electronic current sensing |
| Limit switch | Without |
| Back up battery | 24V (4.5AH or 7 AH) (optional) |
| Satery barrier | Infared sensor (optional) |
| Mian supply | 110V / 220V , 60 Hz / 50 Hz |
| Electronic controller | Microcompeter based |
| Remote controller | UHF Digital PWM type |
| Temperature | -20 ~ + 50 centi degree |
| Protection Class | IP54 |
Packaging & Shipping
Packing: neutral carton.
Motor carton dimension: 990 mm * 270 mm * 150 mm (H).
Control unit carton dimension: 310 mm * 280 mm * 180 mm (H).
Gross weight: 17 KGS.
Shipping: if samples, send by express. If bulk order, send by sea or by air.
Our Services
Warranty: one year from buying on.
Technology support: all the time.
OEM orders are welcomed.
