Edible fungi have rich nutrition and delicious taste. Our company is a designated pressure vessel manufacturer, specializing in the production and manufacturing of edible fungi sterilization equipment. It is a professional manufacturer and operator of edible fungi sterilization equipment.
The following describes the characteristics of the sterilizer.
1. Complete sterilization to ensure sterilization effect.
2. This edible fungus sterilizer has simple operation and high degree of automation..
3. This edible fungus sterilizer has advanced technology and flexible setting.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
3 phases electric power
-
Power:
-
according sterilizer design
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
according sterilizer design
-
Product name:
-
Mushroom Sterilizer
-
Model:
-
Inner Dia.:0.7m, Inner Length:1.2m
-
Heating way:
-
Electric, Steam
-
Electric Heating Power:
-
20KW
-
Material:
-
Carbon Steel ,Q345R
-
Thickness:
-
5mm
-
Design pressure:
-
0.45Mpa
-
Design Temperature:
-
145 Degree Centigrade
-
Control System:
-
Semi Automatic by Bottons
-
Sterilizing Type:
-
Hot Steam Sterilization
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Zhongnuo
-
Voltage:
-
3 phases electric power
-
Power:
-
according sterilizer design
-
Weight:
-
300 KG
-
Dimension(L*W*H):
-
according sterilizer design
-
Product name:
-
Mushroom Sterilizer
-
Model:
-
Inner Dia.:0.7m, Inner Length:1.2m
-
Heating way:
-
Electric, Steam
-
Electric Heating Power:
-
20KW
-
Material:
-
Carbon Steel ,Q345R
-
Thickness:
-
5mm
-
Design pressure:
-
0.45Mpa
-
Design Temperature:
-
145 Degree Centigrade
-
Control System:
-
Semi Automatic by Bottons
-
Sterilizing Type:
-
Hot Steam Sterilization
Product Description
Function:
1. Safety protection : Double protection of pressure control, with automatic exhaust angle seat valve and automatic
pressure relief relief valve.
pressure relief relief valve.
2. Easy to monitor :Dual-scale class ii reading pressure gauge and remote control contact pressure gauge.Maximum operating temperature: 130 degrees.
3.Easy operation,intelligent control : automatic control temperature and pressure , you can set the time by yourself.
4.This product container body using
Carbon Steel Q345R
high-quality container special materials, not only
corrosion-resistant, but also safe, long service life, than ordinary sheet life 3-5 times higher. Products using immersion
electric tube heating, less power consumption, heating fast.Products using immersion electric tube heating, less power
consumption, heating fast. Steam pressure over 0.2MPa relief valve automatically releases excessive pressure for safety.
corrosion-resistant, but also safe, long service life, than ordinary sheet life 3-5 times higher. Products using immersion
electric tube heating, less power consumption, heating fast.Products using immersion electric tube heating, less power
consumption, heating fast. Steam pressure over 0.2MPa relief valve automatically releases excessive pressure for safety.
Features:
1. Reduce sterilization time,
saving 60% time
compared with traditional sterilization methods. Usually sterilizing about 3-5 hours。
2. Good sterilization effect, timely discharge of cold air mass, steam full range of high penetration sterilization, ensure mycelium growth, ensure product quality and output.
3. Clean and sanitary, convenient in and out of materials.
4. Automatic control of
temperature, pressure and time
. Automatic operation, save labor costs.
5. Suitable for large-scale planting, fast yield improvement.
6. Horizontal specifications
with internal rack and external trolley.
rack length and quantity can be set based on product length and width. Set the rack height according to the product height. Allowing steam to penetrate the center faster, more thorough sterilization.
7.
Double Safety Chains
, make sure safety operation.
|
Name
|

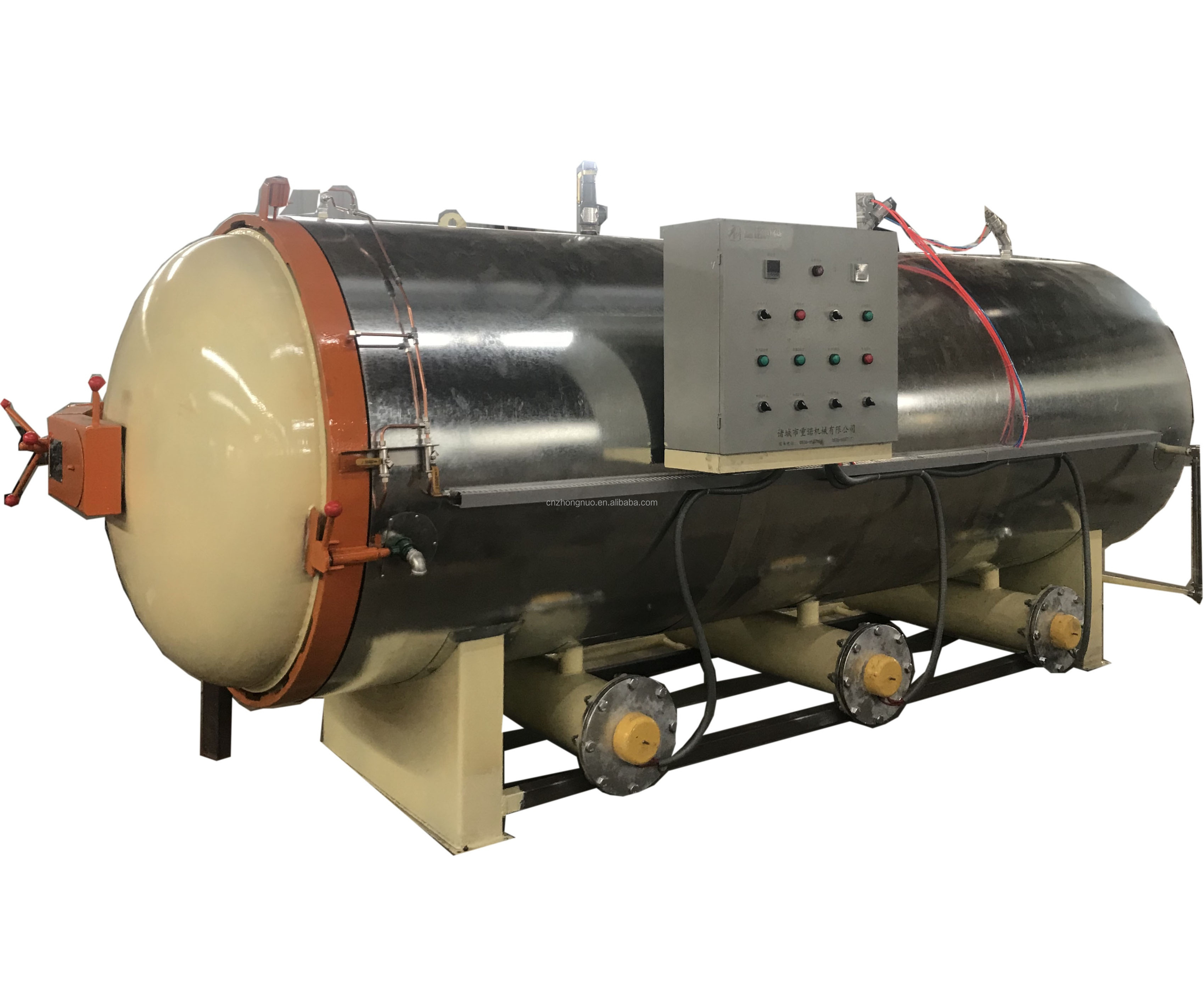

0.7*1.2M Electric Heating Semi Automatic Mushroom Sterilization Autoclave
|
|
|
||
|
Material
|
Carbon Steel(Q345R)
|
Thickness（mm）
|
4mm
|
||
|
Inner Diameter
|
700mm
|
Effective Length
|
1200mm
|
||
|
Set Temp.
|
145℃
|
Set Pressure
|
0.45Mpa
|
||
|
Max. Working Temp.
|
121℃
|
Max. Working Pressure
|
0.35 Mpa
|
||
|
Power
|
480V/60HZ
|
Heating Source
|
Electric
|
||
|
Working Rack Length
|
1.2M
|
Rack Quantity
|
1 Set
|
||
|
External Trolley Length
|
1.2M
|
External Trolley Quantity
|
1Set
|
||
|
Control
|
Semi-Auto Control System
|
Door Opening
|
Open by Hand with Safety Chain
|
||
Instruction:
Edible bacteria, mushroom autoclave (culture base) sterilization autoclave equipment for bacteria (culture base) mushrooms, mushrooms, mushrooms, lingzhi, wood ear, insect grass, golden needle mushrooms, lamb belly bacteria and other fungi and other types of fungi products; The product is mainly aimed at the vast number of customers mushroom cultivation, sterilizing a device, according to different user requirements, the product has a full stainless steel manufacturing, part of stainless steel manufacturing and carbon steel manufacturing.
The sterilizing pot can be divided into heating.
1
.Electric water heating
: at the bottom of opening door autoclave there is a water shield, the bottom of the mushroom autoclave is equipped with a heating tube, when the pot is filled with water to turn on the electric heat pipe, heating water 2
.Steam Heating by Steam Boiler
:This mushroom autoclave does not need to be equipped with steam boiler, effectively saving customer resources, safety and environmental protection.
Steam heating; adding steam inlet to the bottom of the pot to connect the steam pipe, which needs to be equipped with a boiler and used after steam is produced. Customers with steam boilers can use this equipment.
Scope of application
Edible bacteria, bottles, culture bases, culture fluids, etc.
Electric Heating Pipes
Raise Temperature quickly. in the autoclave.
Reduce Sterilization Period with High Pressure.
Circle Working Carts
1.The use of circular design car,t maximize the use of equipment capacity. Increase production.
Trolley with wheels, easy to operate, with brakes, safe to use.
2. Different models of autoclave, the design of different umbers of cars, reasonable design.
Recommend Products
Packing & Delivery
wooden packing or packed according to the customer's requirement.
