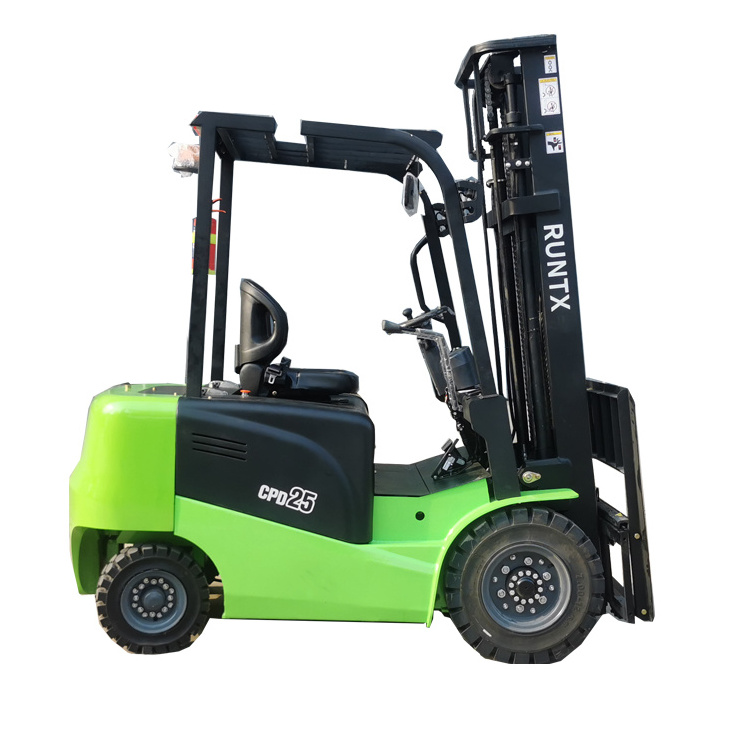

Battery Forklift Truck 1.5 ton 5 ton 4 ton 3.5 ton 3 ton 2.5 ton 2 ton Electric Forklift with Curtis Controller

Battery Forklift Truck 1.5 ton 5 ton 4 ton 3.5 ton 3 ton 2.5 ton 2 ton Electric Forklift with Curtis Controller

FOB Reference Price: Get Latest Price

≥1 Pieces

US $5600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Runtx

Product Type:: Polyurethane (PU) tyre

Type:: Rim solid tyre; compression solid tyre; clean solid tyre

Material:: Polyurethane (PU)

Size:: Standard size or meet your require

Color:: Customized color

Feature:: Wearing Resisting ; Durable ; Anti Corrosion

Application:: Major brand of forklift

Certification:: ISO

HS Code::: 84271090

Min. Inserting Aisle::: 2250mm

Quick Details

Warranty:: 2 years

Weight (KG):: 3900

Place of Origin:: Fujian, China

Brand Name:: Runtx

Product Type:: Polyurethane (PU) tyre

Type:: Rim solid tyre; compression solid tyre; clean solid tyre

Material:: Polyurethane (PU)

Size:: Standard size or meet your require

Color:: Customized color

Feature:: Wearing Resisting ; Durable ; Anti Corrosion

Application:: Major brand of forklift

Certification:: ISO

HS Code::: 84271090

Min. Inserting Aisle::: 2250mm

Products Description

Manufacturer and specification
1.1	Manufacturer		Runtx
1.2	Model		CPD10	CPD15	CPD18	CPD20	CPD25
1.4	Power type		Lead acid battery
1.5	Rated capacity		1000	1500	1800	2000	2500
1.6	Load center		500	500	500	500	500
3.1	Tire type		Pneumatic
3.3	Tires Size		16×6-8 15×4.5-8	6.50-10-12PR 5.00-8-8PR			23×9-10 18×7-8
3.4	Driving brake		Hydraulic
4.1	Tilting Angles	α/β（°）	6/12	6/12	6/12	6/12	6/12
4.2	Height of lowered mast	mm	1875	1995	1995	1995	1995
4.3	Max.lift height of mast	mm	3900	4025	4025	4045	4045
4.4	Free lift height	mm	140	140	140	150	150
4.7	Lift height of fork	mm	3000
4.8	Front-wheel Overhead	mm	2100	2100	2100	2098	2098
4.9	Length(without fork)	mm	1950	2035	2035	2353	2353
4.10	Front overhang	mm	350	400	400	440	440
4.11	Rear overhang	mm	300	335	335	384	384
4.12	Wheelbase	mm	1200	1360	1360	1360	1500
4.13	Min.ground clearance	mm	110	110	110	110	110
4.14	Tread(front/rear)	mm	800/820	912/920	912/920	970/950	970/950
4.15	Overall width	mm	1000	1150	1150	1150	1170
4.16	Fork size	mm	920x100x35	920x100x40			1070X120X40
4.17	Minimum right Angle stacking channel width	mm	3250	3797	3797	4040	4040
4.18	Min mum urn radius	mm	1800	1997	1997	2172	2172
5.1	Max driving speed	km/h	9·11	10·12	10~12	12~13	12~13
5.2	Max Lifting speed	mm/s	240-450	240-450	240~450	320~450	320~450
5.3	Max lowering speed	mm/s	480/420	480/420	480~420	476~426	476~426
5.6	Maxmum tractive force	N	6300	8600	8800	12300	12800
5.8	Max.grade ability	%	12~15	12~15	12~15	13~15	13~15
6.1	Drive motor power	kw	4	5.5	5.5	7.5	7.5
6.2	Hoisting motor power	kw	5	5	6	6	8
6.4	Battery voltage/Capacity	V/Ah	48/320	48/360	48/400	48/400	48/450
7.1	Drive System	AC
7.2	electric control system	Curtis / Zapi
7.3	Total weight	KG	2200	2800	2980	3600	3900

Details

1. High-quality manganese steel, strong toughness and high safety factor
2. Electrophoresis-automotive grade painting process
3. Integral forming overhead guard, strong and durable, large arched structure, high pressure resistance, strong safety
4. Integrated injection molding instrument panel, humanized design, with USB charging port
5. With LED headlights, beautiful and practical, energy-saving more than 80%
6. High-frequency MOSFET integrated controller ensures smooth and precise walking and lifting control,excellent speed regulation
performance, good matching performance of motor electronic control, regenerative braking,reverse braking, slope anti-slide and
other functions, safe and reliable.
