Quick Details
-
Product name:
-

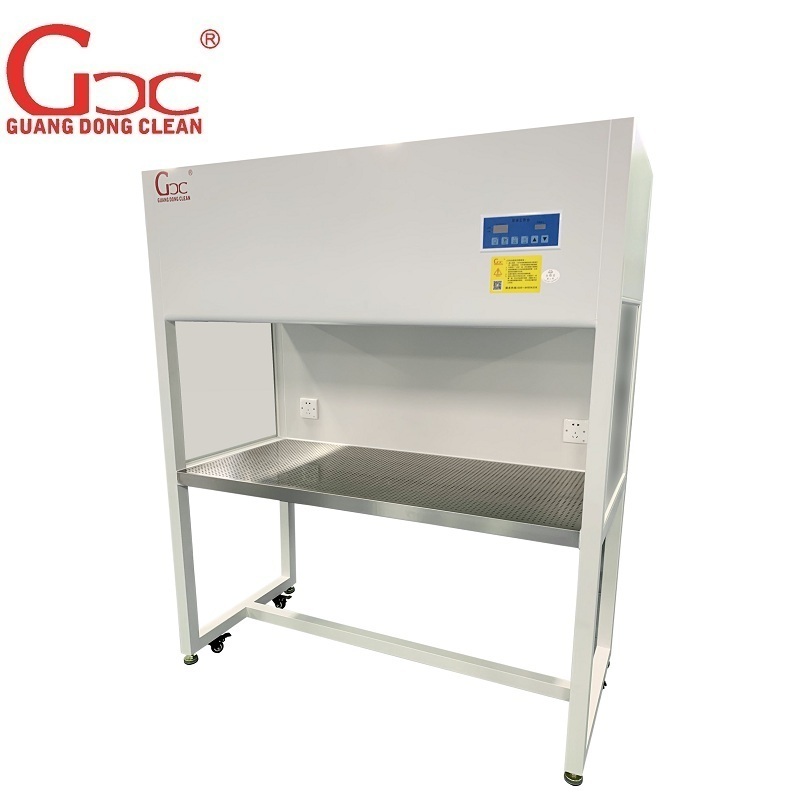

PCR workstation/Clean bench
-
Application:
-
Clean Room/Laboratory
-
Material:
-
Stainless Steel/cold steel plate
-
Efficiency:
-
99.99 %@0.3um
-
Cleanliness:
-
100 Class@ 0.3um
-
NOISE:
-
≤65dB
-
Type:
-
Horizontal or Vertical
-
Voltage:
-
110V-220V
-
Size:
-
960*480*1580/1200*820*1580/1500*900*1580
-
After Warranty Service:
-
Video technical support
Quick Details
-
Weight (KG):
-
300
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
GCC
-
Product name:
-
PCR workstation/Clean bench
-
Application:
-
Clean Room/Laboratory
-
Material:
-
Stainless Steel/cold steel plate
-
Efficiency:
-
99.99 %@0.3um
-
Cleanliness:
-
100 Class@ 0.3um
-
NOISE:
-
≤65dB
-
Type:
-
Horizontal or Vertical
-
Voltage:
-
110V-220V
-
Size:
-
960*480*1580/1200*820*1580/1500*900*1580
-
After Warranty Service:
-
Video technical support
Products Description
Title goes here.
Clean room Dispensing Booth is a kind of partial purifying equipment for filling, refilling, weighing and sampling of raw material and compounds. It is provided with HEPA filter, which prevents the airborne dusts by down laminar flow technique. The unit eliminates powder contamination to protect the operator and the surrounding environment. Weighing booth is also called sampling booth or dispensing booth
1. Automatic changeable frequency system monitors the air velocity to ensure its stability in the work area;
2. Differential pressure gauge is equipped to real-time monitor the filters;
3. Unique designed air duct effectively controls the noise;
4. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products;
5. Intelligent control mode and alarm system ensure the reliability of running.;
6. Smooth transitions of wall and ground can eliminate the blind angle.
2. Differential pressure gauge is equipped to real-time monitor the filters;
3. Unique designed air duct effectively controls the noise;
4. Uniform flow design of main working area can protects the operators and prevent environmental pollution and cross contamination of products;
5. Intelligent control mode and alarm system ensure the reliability of running.;
6. Smooth transitions of wall and ground can eliminate the blind angle.
|
Internal Size(mm)
|
1600*3000*2600
|
2000*3000*2600
|
2500*3000*2600
|
||
|
External Size(mm)
|
1500*2400*2000
|
1900*2400*2000
|
2500*2400*2000
|
||
|
Cleanliness
|
ISO5
|
|
|
||
|
Air Flow
|
0.45±20%
|
|
|
||
|
Pre-Filter
|
G4(90% 5um)
|
|
|
||
|
HEPA Filter
|
H14(99.995 0.3)
|
|
|
||
|
Power Supply
|
380V,50Hz(according to your require)
|
|
|
||
|
Control Mode
|
VFD Control/Simens PLC Control
|
|
|
||
|
Rated Power
|
3kw
|
4kw
|
5kw
|
||
|
Exhaust Volume
|
8000/800(m³/h)
|
10000/1000(m³/h)
|
13000/1300(m³/h)
|
||
|
UV Lamp
|
Optional
|
|
|
||
|
Light Intensity
|
≥300Lx
|
|
|
||
|
Noise
|
≤70dB(A)
|
|
|
||
|
Differential Press Gauge
|
0-60Pa,0-250Pa,0-500Pa
|
|
|
||
|
Material
|
SUS304
|
|
|
||
|
Products Standard
|
Q/320507 LDH016-2016
|
|
|
||
