Quick Details
-
Model Number:
-
KV-100W-A-DIM
-
Output Frequency:
-
47-63HZ
-
Product Name:
-
Waterproof 12V 24V 36V 48V DC 100W LED Driver for Poe LED Lighting
-
Voltage accureage:
-
±0.5%
-
Waterproof degreet:
-
IP66
-
N.W.:
-
1.3kg
-
Size:
-
230*68*45(L*W*H)
-
Outer housing:
-
Fully isolated aluminum case
-
Certification:
-
CE and ROHS
-
Price:
-
EXW
-
Application:
-
Poe LED Lighting
-
Dimming:
-
0-10V,1-10V
Quick Details
-
Warranty(Year):
-
3-Year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SURETRON
-
Model Number:
-
KV-100W-A-DIM
-
Output Frequency:
-
47-63HZ
-
Product Name:
-
Waterproof 12V 24V 36V 48V DC 100W LED Driver for Poe LED Lighting
-
Voltage accureage:
-
±0.5%
-
Waterproof degreet:
-
IP66
-
N.W.:
-
1.3kg
-
Size:
-
230*68*45(L*W*H)
-
Outer housing:
-
Fully isolated aluminum case
-
Certification:
-
CE and ROHS
-
Price:
-
EXW
-
Application:
-
Poe LED Lighting
-
Dimming:
-
0-10V,1-10V

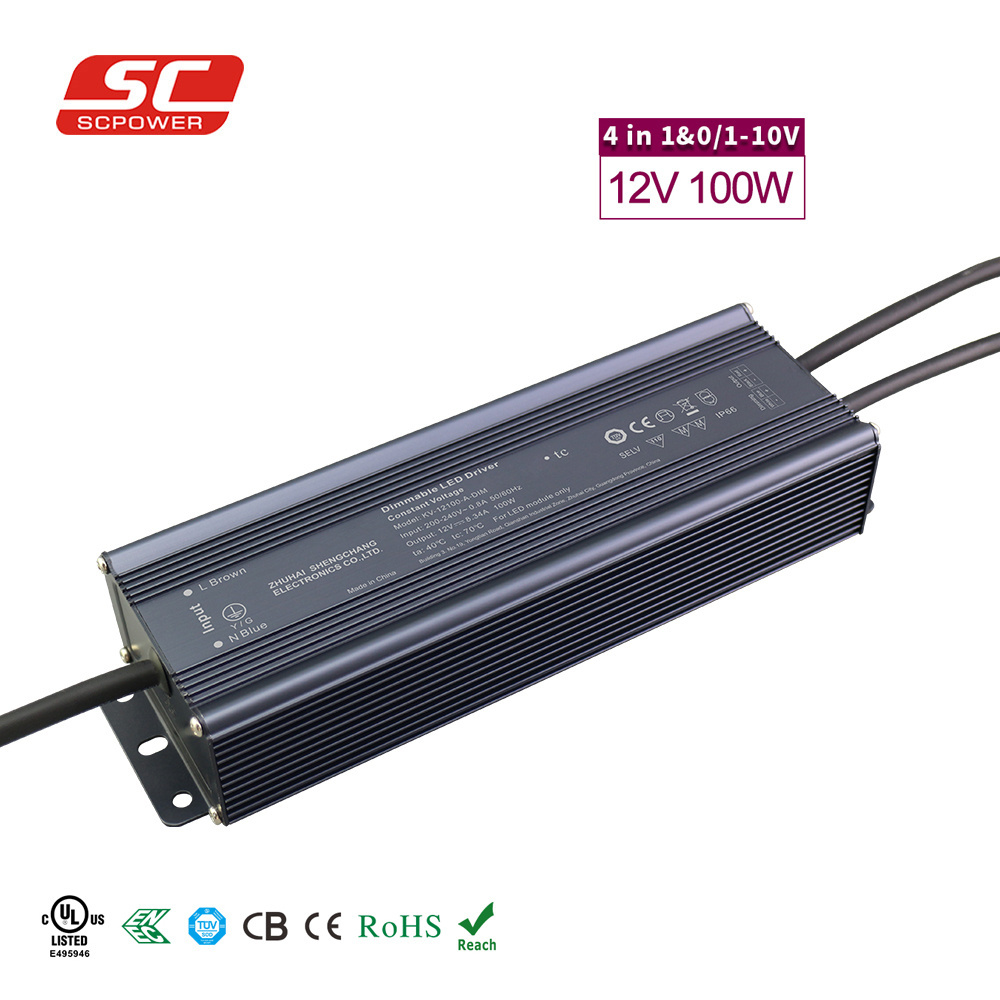

Waterproof Constant Voltage 12V 24V 36V 48V DC 100W LED Driver for Poe LED Lighting
Feature
· Output constant voltage
· Universal AC input : 100-265VAC
· Built-in active PFC function
· High efficiency up to 8 7 %
· Protections: Short circuit/Over current /Over loading
· Cooling by free air convection
· IP66 design for indoor or outdoor installation
· Class 1 power unit
· Three in one dimming function (0/1-10Vdc or PWM signal or resistance)
· Dimming range: 0-100%
· Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·Three years warranty
Specification
|
Model |
KV-12 1 0 0-A -DIM |
KV-241 0 0-A-DIM |
KV- 361 0 0 - A -DIM |
KV- 481 0 0 - A -DIM |
|
|
Output |
DC Voltage |
12V |
24V |
36V |
48V |
|
Voltage Tolerance |
±0.5V |
||||
|
Rated current |
0 - 8.3 A |
0 - 4.17 A |
0 - 2.8 A |
0 - 2.1 A |
|
|
Rated power |
1 0 0W |
||||
|
Input |
Voltage Range |
100~ 265VAC |
|||
|
Frequency Range |
47~ 63HZ |
||||
|
Power Factor |
PF≥ 0.9 8/120VAC PF≥ 0.98/230VAC PF ≥ 0.95/265VAC ( Full loading ) |
||||
|
Efficiency( Typ. ) |
8 3 % |
86% |
87% |
87% |
|
|
AC Current( Max . ) |
1.07A |
1.03A |
1.02A |
1.02A |
|
|
Leakage current |
<0. 5 mA |
||||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed |
|||
|
Over Loading |
≤120% |
||||
|
Over Current |
≤1 .2 *Iout |
||||
|
Over temperature |
100℃±10℃, Shut down o/p voltage, recovers automatically after temp. goes down. |
||||
|
Others |
Net. Weight |
1. 1KG |
|||
|
Size |
230*70*46mm |
||||
|
packing |
329*279*176 mm/10pcs /CTN |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 2 3 0VAC input , rated load and 25℃ of ambient temperature. 2. Tolerance: includes set up tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final E q uipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again . |
||||
