Quick Details
-
Model Number:
-
JT - KT Series
-
Product name:
-
JT - KT Series
-
skype:
-
Joaquin Xie
-
whatsapp/wechat:
-
+8613728632793
-
Dimension:
-
7050*1680*1530mm
-
Conveyor Length On/off-Load:
-
18" (46 cm)
-
Heated Tunnel Length:
-
70" (179 cm)
-
Process Clearance Above Mesh Belt:
-
2.3" (5.8 cm)
-
Mesh Belt Pitch:
-
0.5" (1.27 cm)
-
Weight:
-
APPROX:3360KG
-
Electricity supply:
-
3P 380V/220V 50/60HZ
Quick Details
-
Weight (KG):
-
3360
-
Place of Origin:
-
China
-
Brand Name:
-
JT reflow oven
-
Model Number:
-
JT - KT Series
-
Product name:
-
JT - KT Series
-
skype:
-
Joaquin Xie
-
whatsapp/wechat:
-
+8613728632793
-
Dimension:
-
7050*1680*1530mm
-
Conveyor Length On/off-Load:
-
18" (46 cm)
-
Heated Tunnel Length:
-
70" (179 cm)
-
Process Clearance Above Mesh Belt:
-
2.3" (5.8 cm)
-
Mesh Belt Pitch:
-
0.5" (1.27 cm)
-
Weight:
-
APPROX:3360KG
-
Electricity supply:
-
3P 380V/220V 50/60HZ
KTR-800 8Zones Reflow Oven For SMT Production Line small reflow soldering Smd Automatic Soldering Machine Selective Solder Oven
whatsapp:+8613728632793,skype:Joaquin Xie,wechat:Joaquin15
WE are smt support provider for smt machine parts and equipment .such as feeder,nozzle , feeder storage cart smt reel rack , smt grease , solder paste mixer, smd counter, KIC thermal profiler,smt tape and so on .
Also can support some original parts of machine repair.
Successful Experience:
Meraif's Customer In 35 Countries Around the World
1. We Have Been Helping Customers To Build a Lot of New Factories Around the World.
2. Training More Than 500 Experts and Technician for Customers.
3. Became the Most Reliable Chinese Partner for You.
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
JT reflow oven Technical Parameters :
|
Model |
KTD-0804/KTD-0804-N |
KTD-1004/KTD-1004-N |
KTD-1204/KTD-1204-N |
|
Dimension |
5900X1725X1630mm |
6622X1725X1630mm |
7313X1725X1630mm |
|
Weight(Approx.) |
3150/3300KG |
3650/3800KG |
4150/4300KG |
|
Power |
71/74KW |
89/92KW |
101/105KW |
|
Power For Warm Up |
33/35KW |
35/37KW |
40/42KW |
|
Power Consumption |
9/9.5KW |
10/11KW |
11.5/13KW |
|
Model |
KTS-0804/KTS-0804-N |
KTS-1004/KTS-1004-N |
KTS-1204/KTS-1204-N |
|
Dimension |
5900X1495X1630mm |
6622X1495X1630mm |
7313X1495X1630mm |
|
Weight |
Approx.2800/2950KG |
Approx.3250/3400KG |
Approx.3700/3850KG |
|
Power |
65/69KW |
81/85KW |
93/97KW |
|
Power For Warm Up |
30/32KW |
32/34KW |
37/39KW |
|
Power Consumption |
7.5/8.5KW |
8.5/9.5KW |
10.5/11.5KW |
|
Model |
KTS-0804L/KTS-0804L-N |
KTS-1004L/KTS-1004L-N |
KTS-1204L/KTS-1204L-N |
|
Dimension |
5900X1725X1630mm |
6622X1725X1630mm |
7313X1725X1630mm |
|
Weight |
Approx.3100/3250KG |
Approx.3600/3750KG |
Approx.4100/4250KG |
|
Electric Supply Required |
3 Phase,380V Phase,220V 50/60H (Optional:3 50/60HZ) |
||
|
Power |
71/74KW |
89/92KW |
101/105KW |
|
Power For Warm Up |
32/34KW |
34/36KW |
39/41KW |
|
Power Consumption |
8/9KW |
9.5/10KW |
11/12KW |
|
Components Clearance |
PCB Top:30mm Bottom:25mm |
||

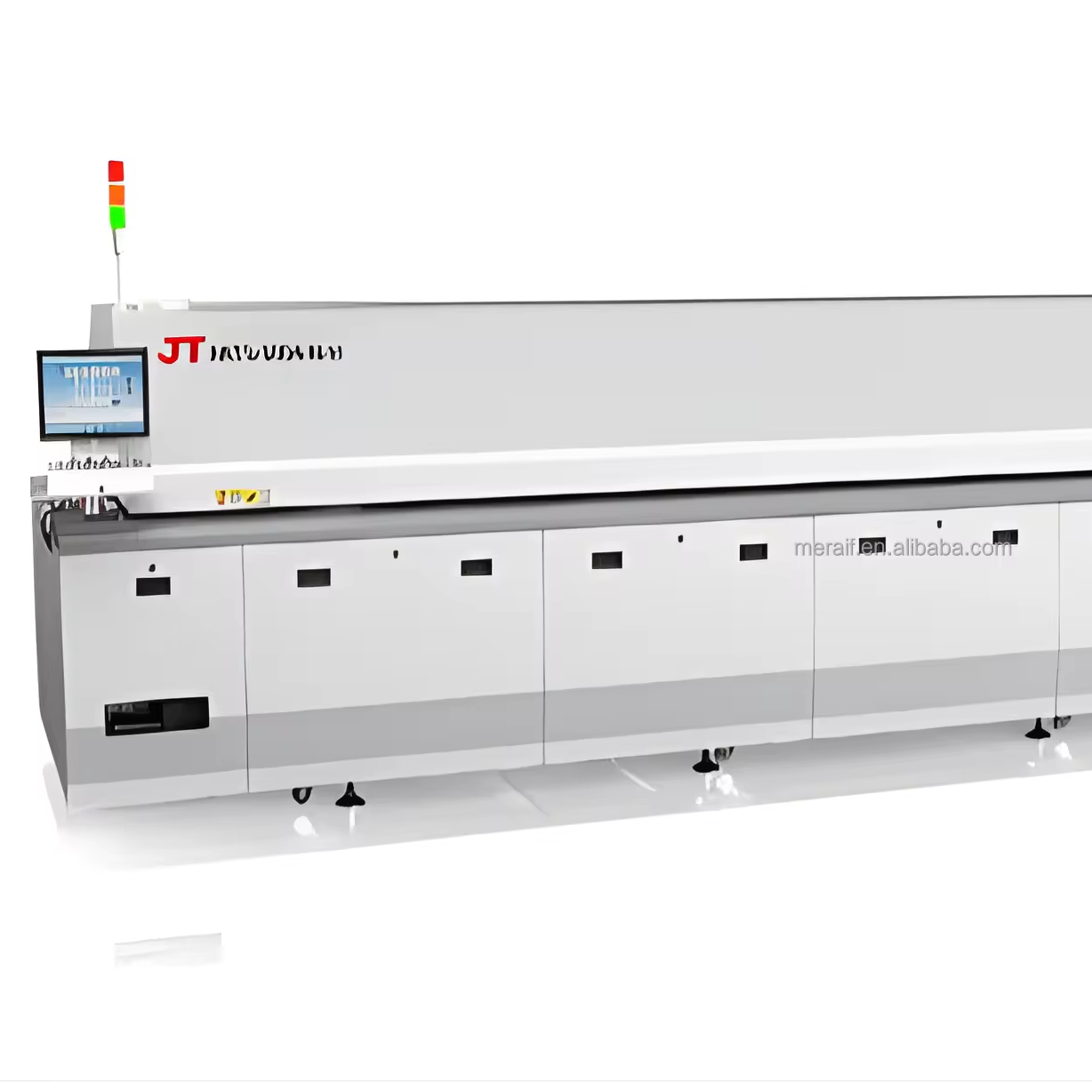

JT reflow oven Picture Show:
EXHIBITION:
SMT LINE :
