Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TT MOTOR
-
Model Number:
-
TWG1220-N30VA
-
Torque:
-
1.0kg.cm max
-
Product Name:
-
6v 12v dc worm gear motor
-
Motor type:
-
Dc Brush motor
-
size:
-
12mm
-
Application:
-
3D printer
-
rated torque:
-
1.0kg.cm max
-
Gearbox Diameter:
-
20*10mm
-
No load speed:
-
150rpm
-
Reduction ratio:
-
1/95,1/190,1/219,1/438,1/504,1/1007
-
module:
-
0.2/0.3
-
gearbox length:
-
20mm, ect
Quick Details
-
Speed(RPM):
-
10-125rpm
-
Continuous Current(A):
-
0.5A
-
Efficiency:
-
50%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TT MOTOR
-
Model Number:
-
TWG1220-N30VA
-
Torque:
-
1.0kg.cm max
-
Product Name:
-
6v 12v dc worm gear motor
-
Motor type:
-
Dc Brush motor
-
size:
-
12mm
-
Application:
-
3D printer
-
rated torque:
-
1.0kg.cm max
-
Gearbox Diameter:
-
20*10mm
-
No load speed:
-
150rpm
-
Reduction ratio:
-
1/95,1/190,1/219,1/438,1/504,1/1007
-
module:
-
0.2/0.3
-
gearbox length:
-
20mm, ect
Products Description

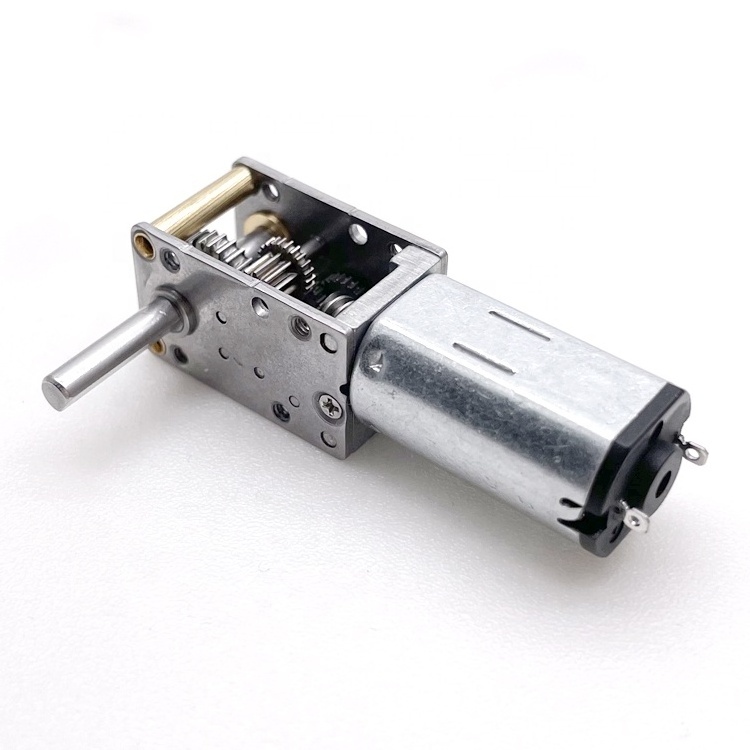

TT Motor small rotation high torque brush N10 N20 N30 N50 6v 12v dc worm gear motor
Main Features
12*20mm worm gearbox plus N30VA permanent magnet DC motor
Small size dc gear motor with low speed and big torque
12*20mm gear motor provide 0.1Nm torque and more reliable
Suitable to small diameter, low noise and big torque application
DC Gear motors can match encoder, 3ppr
Reduction ratio:41、82、95、190、219、438、504、1007
Applications
|
Our products widely used in Robot, 3D pen and machine, Power Lock ,Electronic Lock ,Optic equipment ,Micro Mechanism, money detcotor, printer ,pump etc.
|
|
|
|
|
||||
|
Suitable to small diameter, low noise and big torque applications.
|
|
|
|
|
||||
