Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WONPLUS
-
Voltage:
-
380V, or customerized
-
Dimension(L*W*H):
-
CAPACITY
-
Power (kW):
-
35
-
Weight:
-
8000 KG
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Output (kg/h):
-
400 - 450 kg/h
-
Automatic Grade:
-
Automatic
-
Certification:
-
CE ISO
-
Power:
-
81-130KW
Quick Details
-
Screw Design:
-
Double-screw
-
Screw L/D Ratio:
-
Unapplicable
-
Screw Speed (rpm):
-
35 rpm
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
WONPLUS
-
Voltage:
-
380V, or customerized
-
Dimension(L*W*H):
-
CAPACITY
-
Power (kW):
-
35
-
Weight:
-
8000 KG
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
Output (kg/h):
-
400 - 450 kg/h
-
Automatic Grade:
-
Automatic
-
Certification:
-
CE ISO
-
Power:
-
81-130KW
PVC extrusion line consists of Conical twin-screw extruder, Vacuum forming equipment, Haul-off machine, Cutting machine, Stacker and other components, with good stability and high capacity, easy to operate, reliable. The production line can produce water supply and drainage pipe, the material is U-PVC, C-PVC, large diameter PVC. and small diameter pipe for electricity wire conduit pipe. Full automatic control by SIMENS PLC computer.
| Pipe OD (mm) | 16-32mm | 32-63mm |
| Mould type | 4 Outlet | 4 Outlet |
| Extruder (Conical twin screw) | SJZ-65/132 | SJZ-80/156 |
| Driven Motor (kw) | 37kw | 55kw |
| Installation Power(kw) | about 81kw | about 130kw |
| Design Capacity(kg/h) | 300kg/h | 400-450kg/h |
| Installation Length | about 18m | about 23m |
| Vaccum Calibration Tank | 5m | 5m |
| Traction Speed | 16m/min | 16m/min |
| Cutter | Non-dust or Saw cutting | Non-dust or Saw cutting |

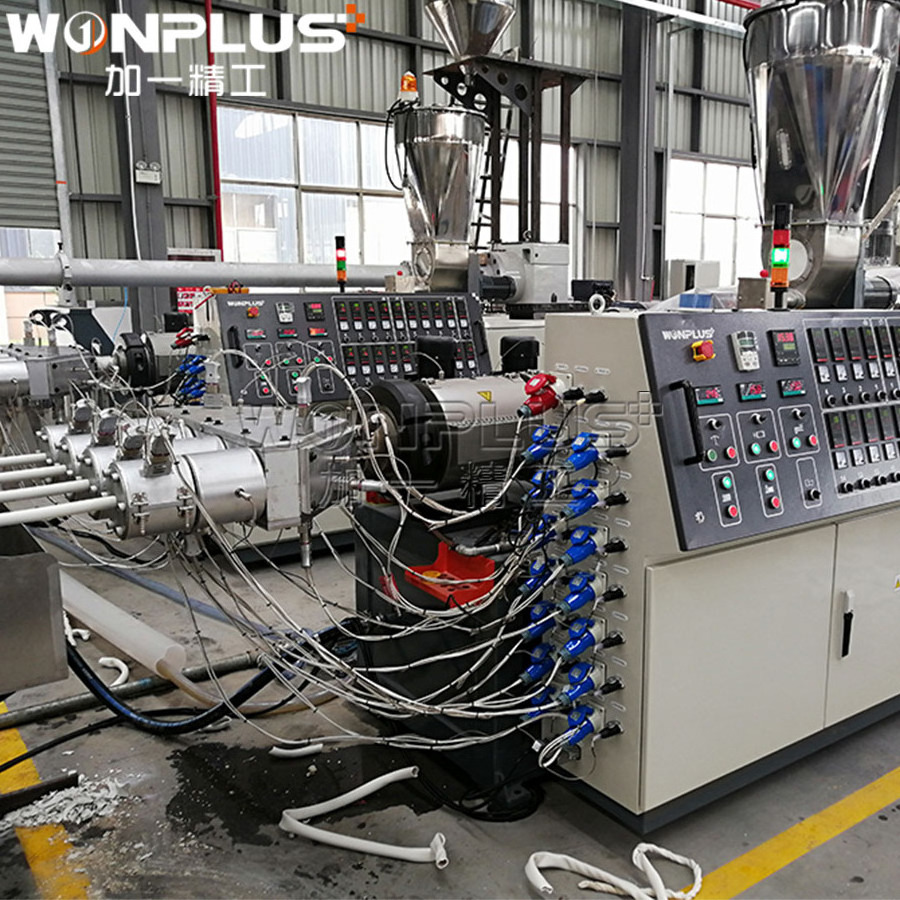

Conical Twin Screw Extruder
Driven motor: Siemens brand Temperature control: Japan RKC, Omron, or Siemens computer Inverter: ABB brand Cotactor & Relay: Schneider brand Circuit breaker: DELIXI |
|
Extrusion Mould
|
|
Calibration Tank
|
|
Hauler & CutterFour outlet PVC pipes Hauler and cutter are integrated. Traction motor reducer: Servo motor, INNOVANCE brand Electricity components: Schneider brand Cutting control: SIEMENS PLC computer Cutting type: Non-dust cutter, or Saw cutter. |
|
Stacker
Humanized design,labour-saving |
Four-outlet PVC pipe extrusion line normally make from OD 16-63mm , in this size range, most is widely used for electricity, such as conduit PVC pipe .The electric conduit PVC pipe has the performance of Non-conductive, Smooth surface, Fire resistant, Corrosion Resistance, Impact strength and so on.
