Quick Details
-
Output Power:
-
12kW
-
Input Voltage:
-
208V±15%; 240V±15%,60Hz
-
Connector type:
-
SAE J1772, 7.5m (25')
-
Enclosure rating:
-
NEMA 4X,Indoor or Outdoor installation
-
Card reader:
-
ISO 15693, ISO 14443
-
User authentication:
-
Autel Charge APP, RFID Card
-
Software Update:
-
OTA updates via web portal
-
Connectivity:
-
Bluetooth, Wi-Fi, Ethernet, CAN, RS485 (For energy meter connection)
-
Safety and compliance:
-
UL 2594, UL 2231-1, UL 2231-2, UL 1998, CSAC22.2. NO.280
-
Certification:
-
FCC Part 15 Class B,ENERGY STAR,OpenADR2.0 B
-
Dimensions:
-
336x187x85 mm
-
Warranty:
-
36 months, warranty extension possible
Quick Details
-
Place of Origin:
-
Hai Phong, Vietnam
-
Model Number:
-

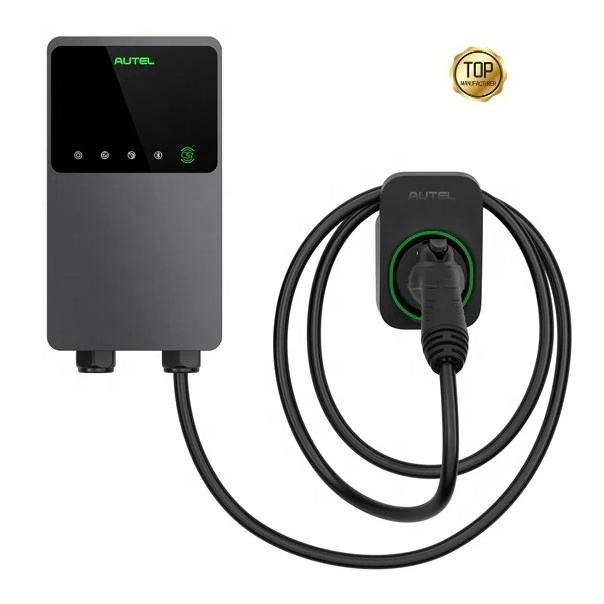

MaxiCharger AC Home
-
Brand Name:
-
Autel
-
Output Power:
-
12kW
-
Input Voltage:
-
208V±15%; 240V±15%,60Hz
-
Connector type:
-
SAE J1772, 7.5m (25')
-
Enclosure rating:
-
NEMA 4X,Indoor or Outdoor installation
-
Card reader:
-
ISO 15693, ISO 14443
-
User authentication:
-
Autel Charge APP, RFID Card
-
Software Update:
-
OTA updates via web portal
-
Connectivity:
-
Bluetooth, Wi-Fi, Ethernet, CAN, RS485 (For energy meter connection)
-
Safety and compliance:
-
UL 2594, UL 2231-1, UL 2231-2, UL 1998, CSAC22.2. NO.280
-
Certification:
-
FCC Part 15 Class B,ENERGY STAR,OpenADR2.0 B
-
Dimensions:
-
336x187x85 mm
-
Warranty:
-
36 months, warranty extension possible
Product Description
|
Technical Specifications
|
|
|
|
Product Information
|
|
|
|
Input/output power rating and current
|
9.6kW (240V AC*40A); 12kW (240V AC*50A)
Output amperage adjustable via mobile app, from 6A to 50A
|
|
|
Input/output voltage
|
208V±15%; 240V±15%, 60Hz
|
|
|
Network type
|
L1/N+PE, L1/L2/PE
|
|
|
Input cord
|
NEMA 6-50 / NEMA 14-50 / Hardwired
|
|
|
Connector type
|
SAE J1772, 7.5m (25')
|
|
|
Ground fault detection
|
20mA CCID
|
|
|
Protection
|
Overcurrent, overvoltage, undervoltage, integrated surge protection,
|
|
|
Card reader (Optional)
|
ISO 15693, ISO 14443
|
|
|
Power measurement accuracy
|
+/- 1.0%;
|
|
|
General Characteristics
|
|
|
|
Enclosure rating
|
NEMA 4X
|
|
|
Operating altitude
|
2000m
|
|
|
Operating temperature range
|
-40℉ ~ +131℉ (-40℃ ~ +55℃)
|
|
|
Storage temperature range
|
-40℉ ~ +185℉ (-40℃ ~ +85℃)
|
|
|
Mounting
|
Wall or floor using a pedestal
|
|
|
Dimensions (H×W×D)
|
336 × 187 × 85 mm
|
|
|
User Interface
|
|
|
|
Status indication
|
LED / APP
|
|
|
User interface
|
Autel Charge APP; Autel Charge Cloud
|
|
|
Connectivity
|
Bluetooth, Wi-Fi, Ethernet, CAN, RS485 (For energy meter connection)
|
|
|
Communication protocols
|
OCPP 1.6J
|
|
|
User authentication
|
APP, AutoStart, RFID card
|
|
|
Software Update
|
|
|
|
Software Update
|
OTA updates via web portal
|
|
|
Certification and Standards
|
|
|
|
Safety and compliance
|
UL 2231-1, UL 2231-2, UL2594, NEC Article 625, CSA C22.2, UL 916
|
|
|
EMC compliance
|
FCC 15 Class B
|
|
|
Certification
|
Energy Star, OpenADR 2.0b
|
|
|
Warranty
|
36 months, warranty extension possible
|
|
Why Choose Us
About Autel
Autel was founded in 2004 and has quickly become one of the world's leading providers of intelligent automotive products and services. We are committed to bringing our customers high-value, reliable and smart electric vehicle charging station products.
FAQ
Q1:Is Autel a factory or a trading company?
A:
We are both a factory and a trading company, as well as a brand owner.
Q2:
How about Autel's supply ability and delivery time
A:
Autel has 2 factories with a floor area of 15,000 and 20,067 square meters respectively, with an annual production capacity of over one million pieces.
Q3:
How about
Autel's
product quality and after-sales service?
A:
Autel has a perfect quality control system and after-sales team, each product will be fully tested for quality, and provide a maximum 3-year warranty policy, and also set up local after-sales teams in many regions around the world.
Q4:
What advantages does Autel have over its peers?
A:
From our design process, R&D, production, through to sales and marketing, Autel products provide a total solution of EV Charging innovations.
Q5:
What about Autel's R&D capability and technological innovation?
A:
Autel keeps increasing its strategic investment in R&D, with R&D investment accounting for more than 15% of revenue and R&D employees accounting for more than 60% of total employees, and has established several R&D centers around the world, such as Silicon Valley, Munich, Shenzhen, etc.
