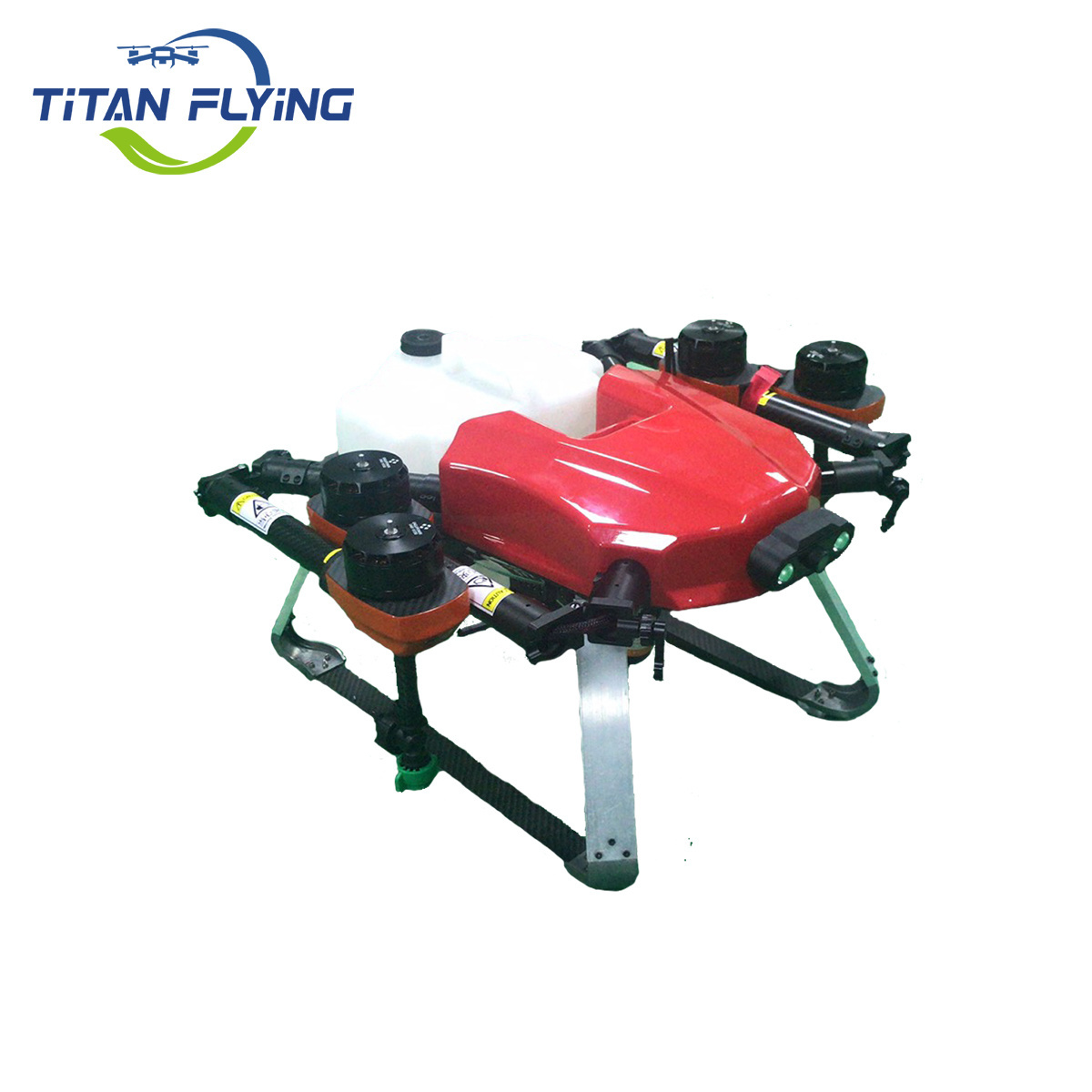

Farming Sprayer Crop Protection Pesticide Spraying Agricultural Drone For Agriculture Farm Use UAV

Farming Sprayer Crop Protection Pesticide Spraying Agricultural Drone For Agriculture Farm Use UAV

FOB Reference Price: Get Latest Price

≥1 Pieces

US $2200

≥10 Pieces

US $1700

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Feature:: High Spraying efficiency

Warranty of core components:: 1 year

Core Components:: Frame of Drone, Remote Controller, Flight Control

Weight:: 60 KG

Power source:: Electric

Material:: Carbon Fiber and Aluminum Alloy

Standard Take-off weight:: 14kg

Pesticide Tank:: 5L

Standard Spraying Rate:: 2L/min

Spraying shape:: Full Cone

Battery needed:: 6S 16,000mAh*1

Propeller:: 23inch

Number of Nozzle:: 2

Transport Package:: Professional Flight Case

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: TTFC

Diameter:: 115 cm

Feature:: High Spraying efficiency

Warranty of core components:: 1 year

Core Components:: Frame of Drone, Remote Controller, Flight Control

Weight:: 60 KG

Power source:: Electric

Material:: Carbon Fiber and Aluminum Alloy

Standard Take-off weight:: 14kg

Pesticide Tank:: 5L

Standard Spraying Rate:: 2L/min

Spraying shape:: Full Cone

Battery needed:: 6S 16,000mAh*1

Propeller:: 23inch

Number of Nozzle:: 2

Transport Package:: Professional Flight Case

Diagonal Wheelbase	1150mm
Dimensions (mm)	Propellers Folded Only: 850800420(H) Arms and Propellers Folded: 600550420(H)
Material	Carbon Fiber and Aluminum Alloy
Power Supply	Electric
Motor	6215-120KV
ESC	FOC 60A
Max Working Voltage	25.2V
Propeller	23inch
Pesticide Tank	5L
Number of Nozzle	4
Spraying Shape	Full Cone
Max Spraying Rate	2L/min
Theoretical Operating Efficiency (Acres per hour)	5
FOV	120°
Resolution	720P
FPV Spotlight	900Im
Self Weight (Excluding Battery)	7kg
Standard Take-Off Weight	14kg
Max Take-Off Weight	15kg
Battery/Quantity needed	6S 16,000mAh*1
Unit Battery Weight	2kg
Hovering Time	12mins (Takeoff weight of 9kg) 8mins (Takeoff weight of 14kg))
Max Tilt Angle	15°
Operating Temperature	0-40℃ (32-104℉)
Standard Spraying Speed (meters per second)	5m/s
Max Spraying Speed (meters per second)	7m/s
Max Flying Speed (meters per second)	10m/s
Remote Controller	T10
Voltage	4.2V
Control Distance	2km
Charger	PC1080
Input Voltage	AC100-240V
Output Power	1080W (540W*2)

Package Specification

Our Packaging Standard

(Professional Flight Case)

What will be in the Package

(P arts m ight not be the same as the picture)

Aircraft

Remote Control

NOT in the Package ( you might want to purchase in extr a )

(Parts might not be the same as the picture)

Battery

Charger

Why you need to use Agricultural Drone

In Traditional Pesticide Spraying Methods

Manual Sprayer

Low efficiency of spraying;

High cost of labour;

Harmful to people's health

Tractor Sprayer

Low maneuverability;

Undesired soil panning;

Unsuitable for fields with rugged terrain;

Unsuitable for rice fields

Aviation

Unsuitable for spraying area less than 100 hectares;

Need for licenses to operate;

Need for government's permission;

Expensive

Agricultural Drone

The efficiency of spraying is 40-60 times better than other traditional methods;

Safe for people's health;

Won’t firm the soil or move over plants;

High usability to all types of field;

Able to take-off from anywhere , able to landing anywhere ;

No need for driving licenses;

Lowest cost of labour;

Easy to operate;

FAQ

Q1. Can I make a sample order for agriculture drone? A: Yes, we welcome sample order to test and check out quality. Different samples in an order are acceptable. Q2. What about the lead time? A:Sample needs 7-10 days.

Q3. Do you have any MOQ limit for drone? A: We don't have any MOQ, 1piece is acceptable. Q4. How do you ship the order and how long does it take to arrive? A: We usually ship by air transportation. It takes around 7-12 days to arrive in most situations. Sea transportation is also available. Q5. How to make an order for drone? Step1: Let us know your requirements. Step2: We quote according to your requirements or our suggestions. Step3: Customer confirms the order and places deposit for formal order. Step4: We arrange the production. Q6. Is it OK to print my logo on product? A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
