Quick Details
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Fujian, China
-
Year:
-
2024
-
Brand Name:
-
FillinMachine
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
350
-
Product name:
-
Automatic Desktop Essential Oil Spray Dropper Filling Capping Machine
-
Keywords:
-
Desktop drip bottle filling machine
-
Function:
-
filling+lower cover+capping
-
Control system:
-
PLC intelligent system
-
Pump type:
-
Peristaltic pump (customizable)
-
Filling nozzles:
-
1(customized)
-
Best filling range:
-
1-100ml (customizable)
-
Filling speed:
-
1500-2000bottles/hour
-
Filling Material:
-
essential Oil,liquid, paste with good fluidity
-
Machine material:
-
304 stainless steel (customizable)
Quick Details
-
Production Capacity:
-
1500bottles/hour
-
Automatic Grade:
-
automatic
-
Driven Type:
-
pneumatic
-
Voltage:
-
220V/110V
-
Place of Origin:
-
Fujian, China
-
Year:
-
2024
-
Brand Name:
-
FillinMachine
-
Dimension(L*W*H):
-
Customized
-
Weight (KG):
-
350
-
Product name:
-
Automatic Desktop Essential Oil Spray Dropper Filling Capping Machine
-
Keywords:
-
Desktop drip bottle filling machine
-
Function:
-
filling+lower cover+capping
-
Control system:
-
PLC intelligent system
-
Pump type:
-
Peristaltic pump (customizable)
-
Filling nozzles:
-
1(customized)
-
Best filling range:
-
1-100ml (customizable)
-
Filling speed:
-
1500-2000bottles/hour
-
Filling Material:
-
essential Oil,liquid, paste with good fluidity
-
Machine material:
-
304 stainless steel (customizable)
Marketing Campaign
Recommend Products
Specification
|
item
|
value
|
|
Brand Name
|
FillinMachine
|
|
Product name
|
Automatic desktop rotary glass dropper bottle 60ml essential oil 2oz dropper bottle filling capping and labeling machine
|
|
Keywords
|
Desktop drip bottle filling machine
|
|
Function
|
filling+lower cover+capping
|
|
Control system
|
PLC intelligent system
|
|
Pump type
|
Peristaltic pump (customizable)
|
|
Filling nozzles
|
1(customized)
|
|
Best filling range
|
1-100ml (customizable)
|
|
Filling speed
|
1500-2000bottles/hour
|
|
Filling Material
|
essential Oil,liquid, paste with good fluidity
|
|
Machine material
|
304 stainless steel (customizable)
|
Dropper Filling Filling Product Function：
Automatic desktop rotary glass dropper bottle 60ml essential oil 2oz dropper bottle filling capping and labeling machine
1.
This
desktop spray dropper filling capping machine is the main machine of
essential oil products or liquid filling line of vials.It has the functions of automati feeding,auotomatic filling,automatic vacuum suction and pressure plug,and automatic sealing.
2. The whole machine adopts advanced technology such as frequency conversion speed regulation,programmable controller and touchoperation interface.
3. Liquid filling is accomplished by plunger pump or peristaltic pimp with accurate measurement;bottle wheel positioning and plugging is absolutely reliable;it has functions of no bottle filling,no plug alarm and automatic shutdown protection to ensuare the normal operation of production.
Dropper Filling filling has been designing and manufacturing labeling and filling machines as well as complete packaging lines for essential oil producers for nearly 10 years. Adhesive labeling machine specially adapted to small vials, essential oil filler or complete packaging line including essential oils’ filling, hydrolats or floral waters, screwing of dropper caps and pipette tip, and labeling of glass or PET vials…
2. The whole machine adopts advanced technology such as frequency conversion speed regulation,programmable controller and touchoperation interface.
3. Liquid filling is accomplished by plunger pump or peristaltic pimp with accurate measurement;bottle wheel positioning and plugging is absolutely reliable;it has functions of no bottle filling,no plug alarm and automatic shutdown protection to ensuare the normal operation of production.
Dropper Filling filling has been designing and manufacturing labeling and filling machines as well as complete packaging lines for essential oil producers for nearly 10 years. Adhesive labeling machine specially adapted to small vials, essential oil filler or complete packaging line including essential oils’ filling, hydrolats or floral waters, screwing of dropper caps and pipette tip, and labeling of glass or PET vials…
Products Description
Dropper Filling filling Machine applications
A
utomatic desktop rotary essential oil dropper bottles filling capping and labeling machine
1.
It is widely used in precision, quantitative loading / dilution of food, chemical, cosmetic and other industries.
2. Pre-chromatography preparation,QC and R&D, environmental monitoring, mineral and blood analysis, forensic identification.
3. Used for precise quantitative loading / dilution of blood, biological reagents, oral agents, injections, advanced cosmetics,flavors, fungicides and other liquids.
2. Pre-chromatography preparation,QC and R&D, environmental monitoring, mineral and blood analysis, forensic identification.
3. Used for precise quantitative loading / dilution of blood, biological reagents, oral agents, injections, advanced cosmetics,flavors, fungicides and other liquids.
Dropper Filling Filling Product Function：

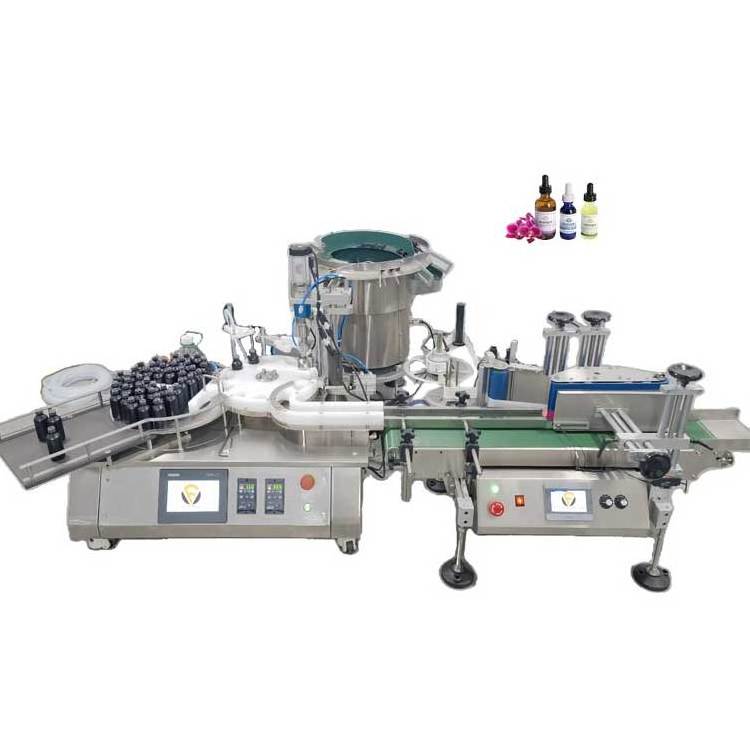

This spray dropper filling capping machine is designed for the mini bottles like eyedrops bottles,essential oil bottles, perfume sample bottles.It can sort bottles,fill liquid into bottle,tighten bottle caps.It is also equipped with cap vibratory bowl sorter which can feed bottle caps automatically,it saves production labor.
1. The touch screen conrtol panel makes working data visual,this is more convenient when debugging the machine.Different kinds of operation language can be customized as operation need.
2. This machine is equipped with bottle unscrambling structure,which can make bottles be in order before entering the star wheel.This saves working labor.
3. The size of filling nozzle can be changed according to bottle opening mouth,this can prevent from spraying liquid out. Multiple filling nozzles can be customized as production need.The 316 stianless steel magetic pump has high filling accuracy and suitable for low viscosity liquid.
4. The star wheel is customized according to bottle size.It can transport bottles to the next working process.There are electric eyes on each working structure, which can detect passing by bottles and control the machine to realize the automated work.
5. The cap feeding structure will drop bottles,the guide housing will help to make caps can be dropped into bottles correctly,this can reduce production labor.
6. The torsion of capping structure can be controlled as production need.This kind of capping strcuture is suitable for bottle caps with screw threads.The bottle pushing structure is used to push bottle out in time,improves working efficiency.
1. The touch screen conrtol panel makes working data visual,this is more convenient when debugging the machine.Different kinds of operation language can be customized as operation need.
2. This machine is equipped with bottle unscrambling structure,which can make bottles be in order before entering the star wheel.This saves working labor.
3. The size of filling nozzle can be changed according to bottle opening mouth,this can prevent from spraying liquid out. Multiple filling nozzles can be customized as production need.The 316 stianless steel magetic pump has high filling accuracy and suitable for low viscosity liquid.
4. The star wheel is customized according to bottle size.It can transport bottles to the next working process.There are electric eyes on each working structure, which can detect passing by bottles and control the machine to realize the automated work.
5. The cap feeding structure will drop bottles,the guide housing will help to make caps can be dropped into bottles correctly,this can reduce production labor.
6. The torsion of capping structure can be controlled as production need.This kind of capping strcuture is suitable for bottle caps with screw threads.The bottle pushing structure is used to push bottle out in time,improves working efficiency.
Automatic Desktop Essential Oil Spray Dropper Filling Capping Machine has many aliases：
1.Essential oil filling Capping Machine 2.Essential oil filling machine 3.cosmetics filling machine 4.vial filling machine 5.dropper filling machine 6.Oral liquid filling machine 7.Liquid filling machine,etc
Buyer Evaluation
Our services
1. If there is a machine problem within 1 year of delivery,we can provide free spare parts replacement
2. Support returns within 2 days after payment,and cannot be returned after delivery.
3. English version user guide manuel and video
4. Exclusive after sale customer service
5. Before shipment, the machines have been successfully tested.
6. Support Certifications,CE certification,ISO9000
7. Respond Rate 100%,During working hours,the response time is less than 10 minutes.
2. Support returns within 2 days after payment,and cannot be returned after delivery.
3. English version user guide manuel and video
4. Exclusive after sale customer service
5. Before shipment, the machines have been successfully tested.
6. Support Certifications,CE certification,ISO9000
7. Respond Rate 100%,During working hours,the response time is less than 10 minutes.
