WINDOO 25A 22mm Selector Rotary Push Button Switch Two Gears or Three Gears 3 Position Self-locking Knob Switch LED Light Red
WINDOO 25A 22mm Selector Rotary Push Button Switch Two Gears or Three Gears 3 Position Self-locking Knob Switch LED Light Red
WINDOO 25A 22mm Selector Rotary Push Button Switch Two Gears or Three Gears 3 Position Self-locking Knob Switch LED Light Red
WINDOO 25A 22mm Selector Rotary Push Button Switch Two Gears or Three Gears 3 Position Self-locking Knob Switch LED Light Red
WINDOO 25A 22mm Selector Rotary Push Button Switch Two Gears or Three Gears 3 Position Self-locking Knob Switch LED Light Red
WINDOO 25A 22mm Selector Rotary Push Button Switch Two Gears or Three Gears 3 Position Self-locking Knob Switch LED Light Red
WINDOO 25A 22mm Selector Rotary Push Button Switch Two Gears or Three Gears 3 Position Self-locking Knob Switch LED Light Red
WINDOO 25A 22mm Selector Rotary Push Button Switch Two Gears or Three Gears 3 Position Self-locking Knob Switch LED Light Red

WINDOO 25A 22mm Selector Rotary Push Button Switch Two Gears or Three Gears 3 Position Self-locking Knob Switch LED Light Red

FOB Reference Price: Get Latest Price
≥5 Pieces
US $3
≥100 Pieces
US $2.8
≥500 Pieces
US $2.5
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
WINDOO
Model Number:
WDN22SA2-P
Certification:
CE CCC CQC RoHS

Quick Details

Protection Level:
IP65 IK08
Max. Current:
25A
Max. Voltage:
250V
Place of Origin:
Guangdong, China
Brand Name:
WINDOO
Model Number:
WDN22SA2-P
Certification:
CE CCC CQC RoHS

WINDOO

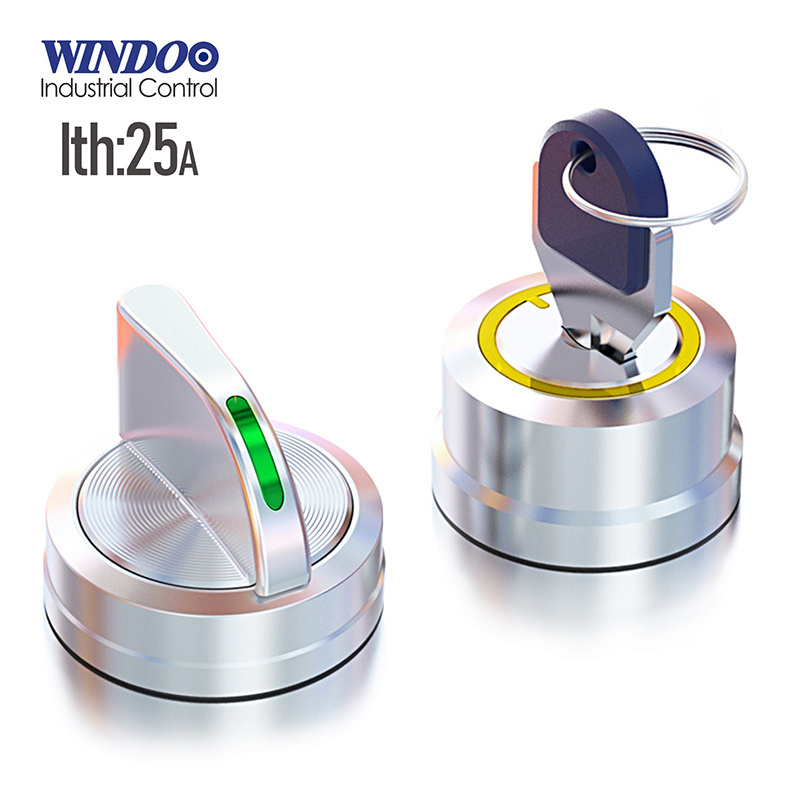

Key Switch  /  Knob Switch

1. Diameter 22mm, modular assembly , convenient and efficient ;

2. Plastic head(PA66), Aluminum oxide head(6063) optional;

3. High power, lth: 25A high current ,slow moving dual contact module;

4. IP65/dust proof/corrosion resistance/temperature resistance; High mechanical life, quality assurance;

5. Momentary,Latching, contact type: 1NO, 1NO1NC, 2NO2NC, 3NO3NC... ;

6.LED voltage: AC/DC9-24V,220V, customized 25-45V,110V;

7.LED color: Red, Green, Yellow, Customiz e : Blue, White;

customer service, Tel: 0769-81833896, other suggestions or complaints tel :008615606669969.

This price is only 1NO knob switch price, specific price consultation customer service !

Electrical  Specification

Resistive current Ith:25A(Ui660VAC,Ue:400VAC)
Contact resistance ≤50mΩ
Resistive load AC-15:400V:16A,230V:22A,120V:25A; DC-13:24V:25A
Inductive load AC-15:400V:2A,230V/120V:5A; DC-13:24V:6A
Insulation resistance ≥1000MΩ
Dielectric strength 3500VAC,50Hz,1min(Between the terminal and the contact moudle lock)
2500VAC,50Hz,1min(Between contacts)
Contact Min load 3V AC/DC,5mA(Reference value,Depends on the environment and load)
ESD Human body mode: 2KV, customize 8KV
Electrical life Resistive load:AC440V/16A,20000 times;AC230V/22A,50000 times
AC120V/25A,50000 times;DC24V/25A:50000 times(GB/T14048.5)
Mechanical life Momentary:10 million times; Latching:1million times(GB/T14048.5)
M1/M3/Knob switch/Key switch/Momentary:2 million times,
Latching:300000 times (GB/T14048.5)
Limit pressure test Hold at the bottom for 5s, then loosen, 4 times /min, conduct 2000 tests
Rotation  angle Key switch/Knob switch :2 position,60°;3 position 60°
Certification CCC,CE,RoHS;REACH(Customize)
Guarantee 1888 Days

LED Indicator Light

Rated current ≤24V,≤20mA;>24V,≤10mA
LED Type SMT non-polar LED
Voltage drop Built-in step-down resistor
LED life ≥50000h(Reference value)
LED Voltage AC/DC9-24V  220V; Customize:3-8V,24-48V  110V....

Environmental  Conditions

Ambient Temp -40℃~+80℃,Non-vacuum, Non-freezing conditions
Ambient  humidity 45~90%RH
Storage Temp If the package is intact,-40℃~+55℃
Storage  humidity If the package is intact,45~90%RH
Protection grade IP65(Indicator light IP68),IK08(GB/T 20138)
Anti-Vibration XYZ Three-way,60Hz,Amplitude 2mm
Fall prevention 1 meter drop, 3 times, Normal operation
Packaging drop 0.6 meter drop, 4 times, Normal operation
Shock resistance Each part can withstand impact force 10g, Work normally
Temp rise test Article 8.3.3.3 in GB/T14048.5
Salt spray test 72h,3 Cycles,(GB/T 2423.18-2012)
Low-Temp test -40℃,96h,Contact resistance ≤200mΩ,Key  pressure  change value ≤30%, LED   work normally
High-Temp test 80℃,96h,Contact resistance ≤200mΩ,Key  pressure  change value ≤30%, LED   work normally

Frequently Asked Question

1. Q: How do I get accurate batch prices?

A: Please tell me the specific specifications and quantity (PA66 plastic head or 6063

aluminum oxide?Momentary or Latching? 1NC/1NC/1NO1NC/....? )Will give you the price.

2. Q: How do I place an order?

A: We can make the transaction through a credit protection order on Alibaba.

3. Q: What are the delivery channels?

A: By air or sea and express (SF, DHL, Fedex, TNT, UPS/EMS, economy express.......) .

4. Q: Can you provide relevant product drawings?

A: Sure.

5. Q: Could you send me a price list?

A: Sorry! We offer a separate quotation for the products you need, too much information

in the price list will cause trouble to you.

6. Q: Can I ask for samples?

A: We can provide free samples, but you have to bear the freight! Because there are

many customers need samples every day, the cost is very high.

7. Q: Can we  customize the logo and packaging?

A: Yes, but there is a certain minimum order quantity.

8. Q: How long is the lead time?

A: Regular products, less than 2000 pieces , normally delivered within 3 days.

9. Q: What are the  payment?

A: T/T(Wire transfer),Western Union, Paypal, credit card..... .

10. Q: Can I use RMB?

A: Of course.

11. Q: How to guarantee the quality?

A: The warranty is 1,888 days.

12 . Q: May I be your agent?

A: Welcome to be our strategic partner. If don't have an agent in your area, we can

negotiate further.
