Quick Details
-
Warranty:
-
25YEARS
-
Brand Name:
-
Trina
-
Model Number:
-
RT200WM
-
Place of Origin:
-
Shaanxi, China
-
Panel Dimensions:
-
1320*670*35mm(±5mm)
-
Product:
-

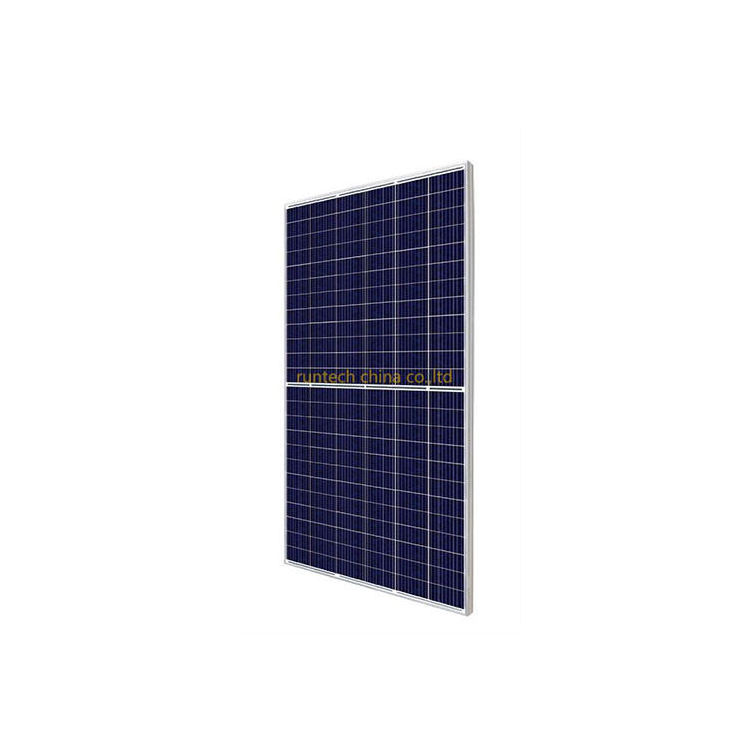

Mono-crvstalline silicon solar PV module
-
Rated Power:
-
200Wp
-
Module type:
-
RT200WM
-
Opon Circuit Voltage (V.e):
-
32.82V
-
Tolerance:
-
±5%
-
Short Circuit Current(lsc):
-
8.10A
-
Max Power Voltage(Vm):
-
24.4V
-
Max. Power Current(lm):
-
8.20A
-
Temperature coefficients of isc (%):
-
0.10/℃
-
Tom porature coelficionts of V.(%):
-
-0.33/℃
-
Certificate:
-
TUVIEC 61215
Quick Details
-
Cell size:
-
1650*670*35mm(±5mm)
-
Type:
-
PERC, Half Cell
-
Panel Efficiency:
-
/
-
Warranty:
-
25YEARS
-
Brand Name:
-
Trina
-
Model Number:
-
RT200WM
-
Place of Origin:
-
Shaanxi, China
-
Panel Dimensions:
-
1320*670*35mm(±5mm)
-
Product:
-
Mono-crvstalline silicon solar PV module
-
Rated Power:
-
200Wp
-
Module type:
-
RT200WM
-
Opon Circuit Voltage (V.e):
-
32.82V
-
Tolerance:
-
±5%
-
Short Circuit Current(lsc):
-
8.10A
-
Max Power Voltage(Vm):
-
24.4V
-
Max. Power Current(lm):
-
8.20A
-
Temperature coefficients of isc (%):
-
0.10/℃
-
Tom porature coelficionts of V.(%):
-
-0.33/℃
-
Certificate:
-
TUVIEC 61215
Product Description
|
1 Electrical Characteristics: At STC: 1000W/m², Cell temperature 25°C, AM1.5
|
|
|
|
Module type
|
RT200WM
|
|
|
Rated Power
|
200Wp
|
|
|
Tolerance
|
±5%
|
|
|
Open Circuit Voltage (Voc)
|
32.82V
|
|
|
Short Circuit Current (Isc)
|
8.10A
|
|
|
Max. Power Voltage (Vm)
|
24.4V
|
|
|
Max. Power Current (Im)
|
8.20A
|
|
|
Temperature coefficients of Isc (%)
|
0.10/℃
|
|
|
Temperature coefficients of Voc (%)
|
-0.33/℃
|
|
|
Temperature coefficients of Pm (%)
|
-0.23/℃
|
|
|
Module Efficiency (%)
|
≥15.00%
|
|
|
pakage
|
30pcs/pallet
|
|
2 Overall Characteristics:
- 48 Monostalline photovoltaic Cells
- Size: 1650*670*35mm (±5mm)
- Weight: 11.3kg
- Glass 3.2mm tempered
- EVA encapsulated
- Glass Foil Sandwich Laminated
- Sandblasting anodizing Aluminum frame
- IEC 5400Pa tested
- Hail up to 25mm diameter,80 Km/h tested
- Temperature Range: -40 to +85°C
- Nominal operating cell temperature (NOCT): 47°C
- 48 Monostalline photovoltaic Cells
- Size: 1650*670*35mm (±5mm)
- Weight: 11.3kg
- Glass 3.2mm tempered
- EVA encapsulated
- Glass Foil Sandwich Laminated
- Sandblasting anodizing Aluminum frame
- IEC 5400Pa tested
- Hail up to 25mm diameter,80 Km/h tested
- Temperature Range: -40 to +85°C
- Nominal operating cell temperature (NOCT): 47°C
3 Electrical connection:
- Junction Box IP67
- 2 Bypass Diodes, nominal current 20A
- Solar Cable 4mm² 1000 mm+MC4
- Module connection max 1000 DC in series
- Limiting reverse current IR=0.2A
4 Certificates
-TUV IEC 61215
-TUV IEC 61730-01/02
-CE
-ISO 9001:2015
-ISO 14001:2015
- Junction Box IP67
- 2 Bypass Diodes, nominal current 20A
- Solar Cable 4mm² 1000 mm+MC4
- Module connection max 1000 DC in series
- Limiting reverse current IR=0.2A
4 Certificates
-TUV IEC 61215
-TUV IEC 61730-01/02
-CE
-ISO 9001:2015
-ISO 14001:2015
