Quick Details
-
Range of Spindle Speed(r.p.m):
-
100 - 6000
-
Spindle Taper:
-
BT30
-
Positioning Accuracy (mm):
-
0.02
-
Repeatability (X/Y/Z) (mm):
-
0.04
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
White eagle
-
Model Number:
-
XK7124B
-
Table Travel (mm):
-
800*240
-
Year:
-
2019
-
Voltage:
-
customed
-
Dimension(L*W*H):
-
1600*1450*2300
-
Weight (KG):
-
900
-
Spindle Motor Power(kW):
-
2.2/3.7
-
Max. Table Load(kg):
-
100 kg
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
6000rpm BT30 Benchtop CNC Milling Machine XK7124B For Sale
-
Power (kW):
-
2.2/3.7
-
Worktable size:
-
800MM(900MM)*240mm(optional)
-
Tool changing way:
-
Pneumatic
-
T-slot:
-
16*3*60mm
-
Distance from spindle nose to table:
-
50-450MM(500MM for option)
-
ACT capacity:
-
4 simple ATC
-
feeding speed:
-
0-2000mm/min
-
max size of tool:
-
60*175
-
N.W:
-
1000
Quick Details
-
Table Travel (X) (mm):
-
530
-
Table Travel (Y) (mm):
-
280
-
Table Travel (Z) (mm):
-
400
-
Range of Spindle Speed(r.p.m):
-
100 - 6000
-
Spindle Taper:
-
BT30
-
Positioning Accuracy (mm):
-
0.02
-
Repeatability (X/Y/Z) (mm):
-
0.04
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
White eagle
-
Model Number:
-
XK7124B
-
Table Travel (mm):
-
800*240
-
Year:
-
2019
-
Voltage:
-
customed
-
Dimension(L*W*H):
-
1600*1450*2300
-
Weight (KG):
-
900
-
Spindle Motor Power(kW):
-
2.2/3.7
-
Max. Table Load(kg):
-
100 kg
-
Marketing Type:
-
Hot Product 2022
-
Product name:
-
6000rpm BT30 Benchtop CNC Milling Machine XK7124B For Sale
-
Power (kW):
-
2.2/3.7
-
Worktable size:
-
800MM(900MM)*240mm(optional)
-
Tool changing way:
-
Pneumatic
-
T-slot:
-
16*3*60mm
-
Distance from spindle nose to table:
-
50-450MM(500MM for option)
-
ACT capacity:
-
4 simple ATC
-
feeding speed:
-
0-2000mm/min
-
max size of tool:
-
60*175
-
N.W:
-
1000

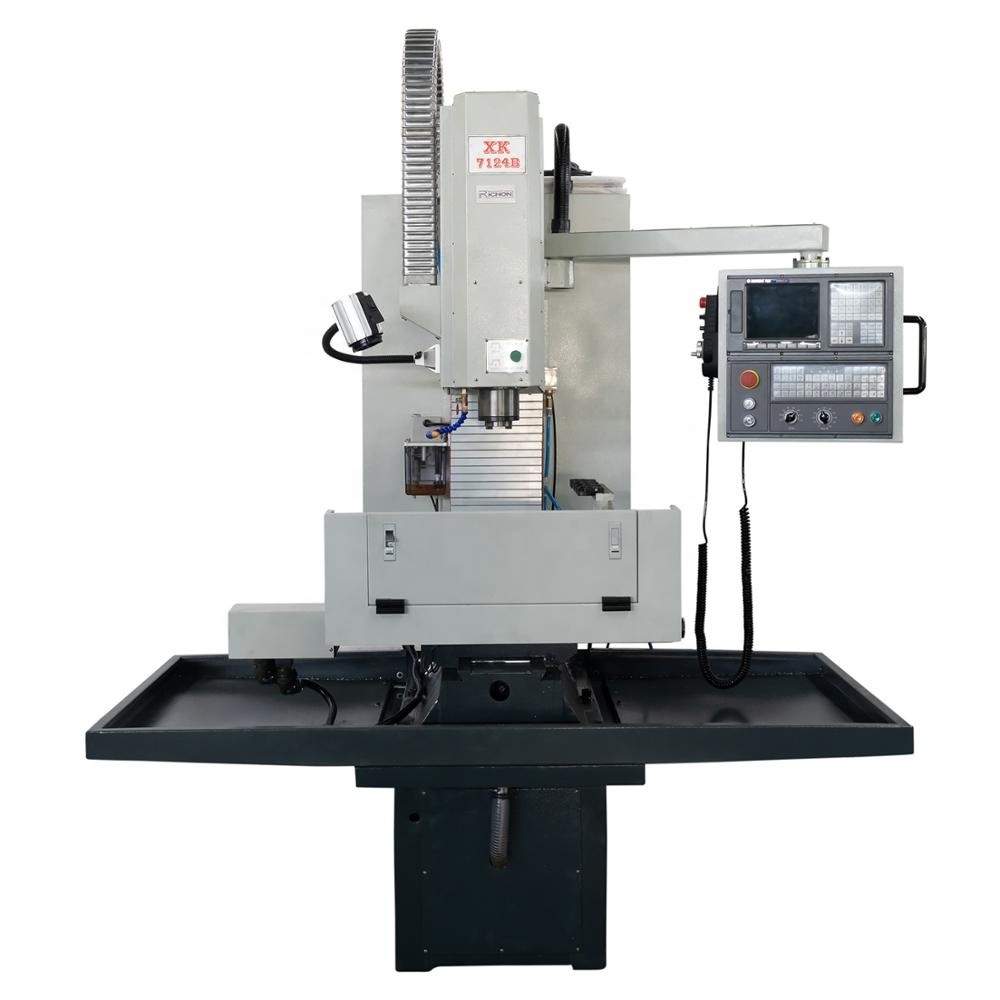

6000rpm BT30 Benchtop CNC Milling Machine XK7124B For Sale
Main Features:
4 pcs tool stations on worktable with high efficiency
It can finish all process of surface machining ,hole machining and tapping by clamping workpiece .
High and low step speeds avaiable and stronger torque for low step speed .
3 axis transmission by precision ball leadscrew,servo motor driven
Two styles of tool change avaiable ,manually pneumatically.
Various famous CNC controllers supplied with for more choice
Machine stand and machine body are designed separately for easy and flexible installment by user
Specifications:
Standard and Optional Accessories
Standard accessory:
Spindle :BT30
1)T
Steel stand&oil tray
2)
Iron casting stand
3)
Servo Spindle(GSK)
4)
6000rpm spindle
