Quick Details
-
Production Capacity (kg/h):
-
50 - 1200 kg/h
-
Brand Name:
-
SINOTECH
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
depends on model
-
Power (kW):
-
26
-
Weight (T):
-
1680
-
Applicable material:
-
PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS
-
Final product::
-
Plastic powder
-
Blades material::
-
High chrome alloy steel/SKD11
-
Max.pulverizering size:
-
not exceeding 12mm
-
Main Motor Power:
-
22-100KW
-
Mesh size:
-
20-80 Mesh
-
Other name:
-
Pulverizer, miller, grinder
-
Feeder system:
-
dose feeder, suction feeder
-
Color:
-
customized
Quick Details
-
Max.Production Capacity (kg/h):
-
1200
-
Place of Origin:
-
Jiangsu, China
-
Machine Type:
-
Milling machine, Plastic grinder
-
Production Capacity (kg/h):
-
50 - 1200 kg/h
-
Brand Name:
-
SINOTECH
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
depends on model
-
Power (kW):
-
26
-
Weight (T):
-
1680
-
Applicable material:
-
PVC, PET, ABS, PP/PE, PE, PP, PC, PMMA, PA, PS
-
Final product::
-
Plastic powder
-
Blades material::
-
High chrome alloy steel/SKD11
-
Max.pulverizering size:
-
not exceeding 12mm
-
Main Motor Power:
-
22-100KW
-
Mesh size:
-
20-80 Mesh
-
Other name:
-
Pulverizer, miller, grinder
-
Feeder system:
-
dose feeder, suction feeder
-
Color:
-
customized
Product Description

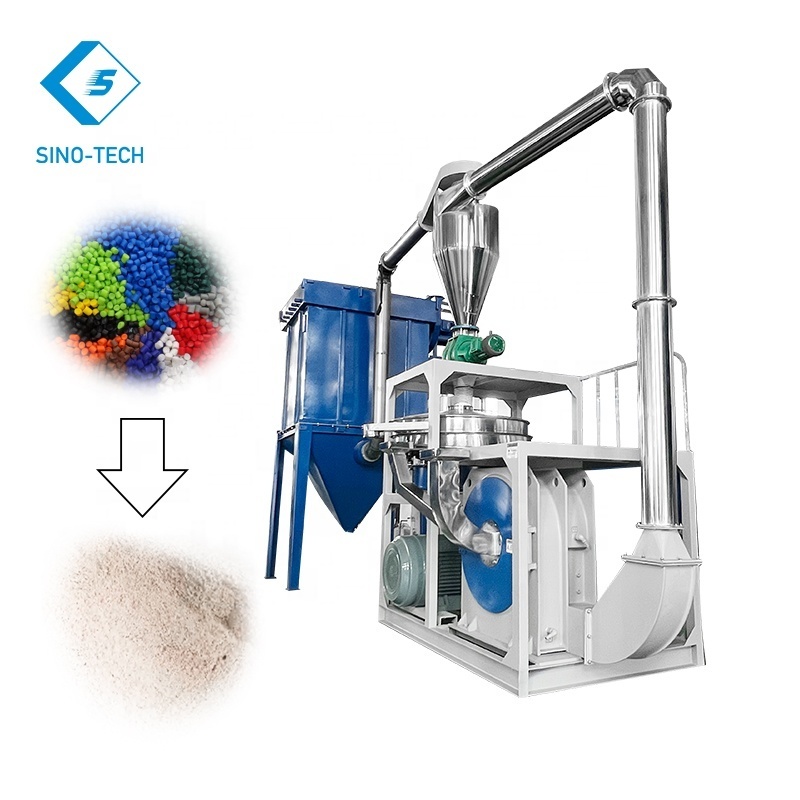

Automatic PE LDPE HDPE LLDPE PVC PET EVA PS ABS high speed plastic pulverizer mill machine
Application
Adopted material is HDPE LDPE LLDPE PVC PE PET pellet or flakes that the size is not surpass the 12mm ,soft PVC ,HARD pvc and so on.
Final powder mesh size in genneral is between 20~80 mesh.
The powder mesh size is adjustbale.
Features
1. Compare with same type pulverizer, the capacity of this mode is more higher
2. Equipped with dust collection device to reduce dust pollution.
3. Close blower for discharge can reduce labor intensity of worker
4. the cover of main machine can be opened for maintain
5.the cooling of machine have wind cooling and water cooling, it can cool the machine body very good.
Components:
1. Grinding room
2. Main motor
3. Wind-sending pipeline
4. Hopper
5. Shanking feeder
6. Rotundity vibrating sieve
7. Cyclone windbutterfly valve
8. Cyclone seperator
9. Blower
10. Electrical control cabinet
11. Dust catcher.
|
Specification
|
|
|
|
|
||||
|
Disc-type
|
|
|
|
|
||||
|
Item Model
|
MF-400
|
MF-500
|
MF-600
|
MF-800
|
||||
|
Main Motor(KW/hp)
|
22/30
|
37/50
|
45/60
|
45/100
|
||||
|
Total Power(KW/hp)
|
26/35
|
44/59
|
54/72
|
88/118
|
||||
|
Blade Material
|
SKD-11
|
SKD-11
|
SKD-11
|
SKD-11
|
||||
|
Capacity
|
50-300kg/hr
|
80-500kg/hr
|
120-800kg/hr
|
200-1200kg/hr
|
||||
|
Vibration Sieve
|
ZDS-800
|
ZDS-1000
|
ZDS-1000
|
ZDS-1200
|
||||
|
Dimensions(mm)
|
2600x2200x3600
|
3000x2800x3900
|
3200x3000x4200
|
3500x3200x4500
|
||||
|
Weight(kg)
|
1680
|
2280
|
2680
|
3580
|
||||
|
Turbo-type
|
|
|
|
|
||||
|
Item Model
|
SMW-400
|
SMW-500
|
SMF-600
|
SMF-800
|
||||
|
Main Motor(KW/hp)
|
30/40
|
37/50
|
45/60
|
75/100
|
||||
|
Total Power(KW/hp)
|
30/40
|
44/59
|
54/72
|
88/118
|
||||
|
Vibration Sieve
|
No
|
ZDS-1000
|
ZDS-1000
|
ZDS-1200
|
||||
|
Capacity(kg/h)
|
50-120
|
80-280
|
120-380
|
200-800
|
||||
|
Dimensions(mm)
|
2200x1500x1600
|
3000x2800x3900
|
3200x3000x4200
|
3500x3200x4500
|
||||
|
Weight(kg)
|
1000
|
1680
|
2280
|
2880
|
||||
Application
Application Material
This pulverizer is mainly applied for pulverizing
polyethylene(PE,including LLDPE,LDPE,MDPE,HDPE).polyvinylchloride(PVC,including hard PVCand soft PVC).propene polymer(PP)polystyrene(PS)ABS,Nylon(PA),EVA,PET and other materials.
